[GreenKeys] WTB 28 ASR panel.

Tue Nov 22 15:39:04 EST 2022

Yes , blank panel , unless you have specific hole sizes and dims.
Attached PDF from what I ran as far as blank plate, and the inner fins of 8.2795 & 2.1975 are scaled from my blank plat from the paint lines, may not be accurate but should be close.  Roughly scaled the switch opening and tape hole and placed them in cad drawing. Should be able to print the PDF full size and place it in machine to see if it works for hole placement.

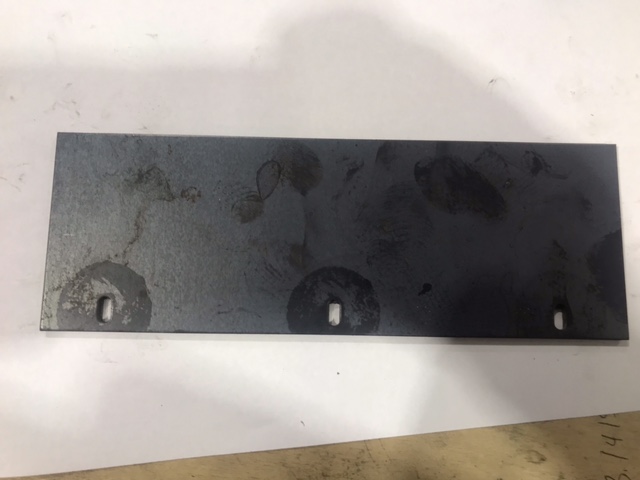

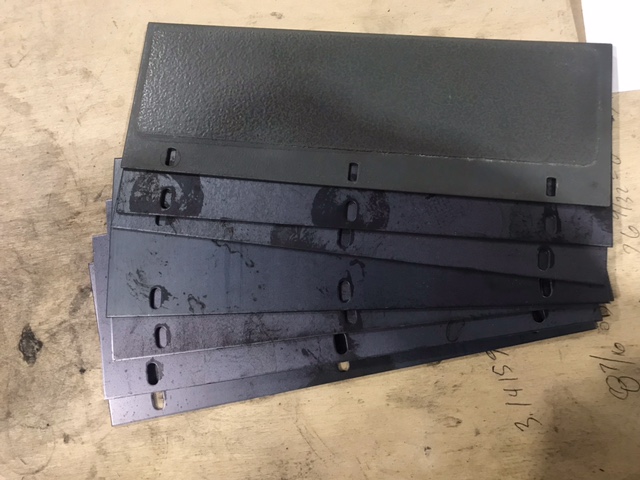

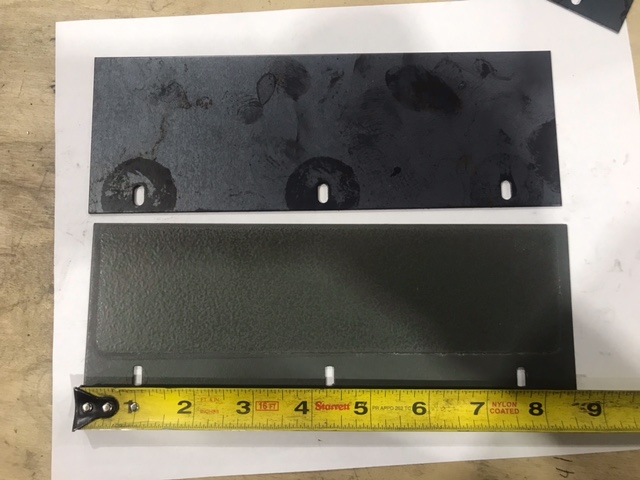

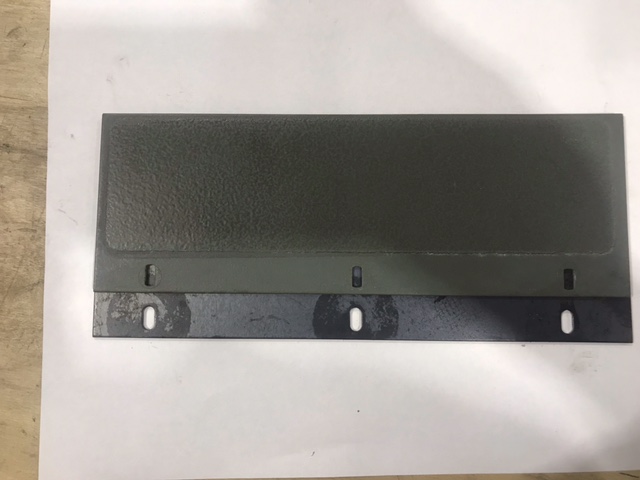

Ran some blank plates to make sure mount hole placement was good.   Ran out of 16ga mild steel which is what original was.  Can run aluminum as well.

Not a problem to run some with the holes if anyone wants some.

73
John
KG5YLG

Sent from my iPhone

> On Nov 22, 2022, at 1:04 PM, John, W9DDD <w9ddd at tapr.org> wrote:
>
> So which version are you talking about?  Oh, I guess you are talking about a blank panel cut to size unless you know what holes you want.
>
> If I had found my AL stock, I was going to ask if someone could take a straight on picture of their panel which I was going to then scale for printing to actual size to get a fairly close to the right dimension.
>
>
>
>
>
> OR
>
>
>
> I haven't checked to see if my aux reperf has a tape feed out magnet, but suspect it does.
>
> The only hole that might be critical is the big tape exit hole, the switches I would think can float a bit.  Not having the reaperf installed yet, I don't know if there would be any interference from the repert. once mounted.
>

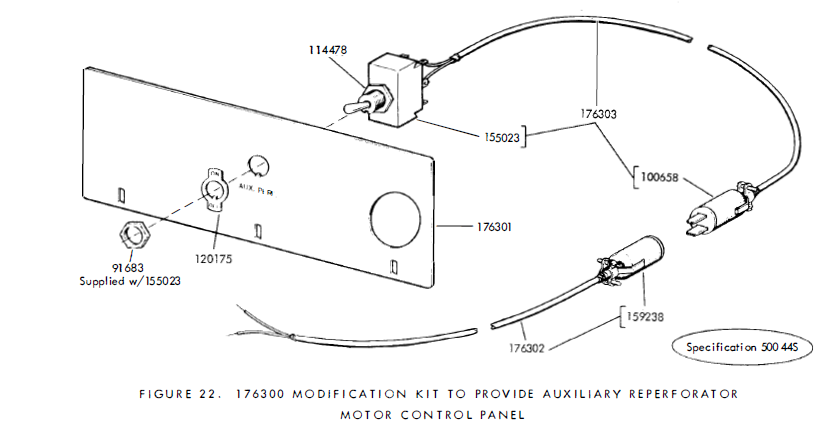

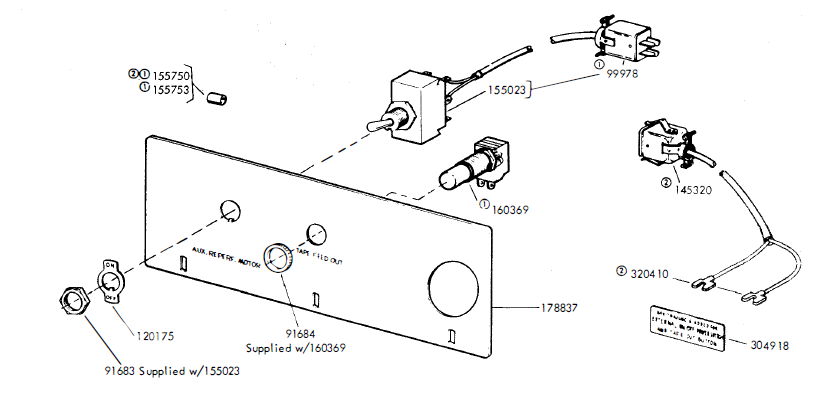

> Snapshots from pages 274 & 275 of bulletin 1169B.
>
> ---
> ----
> You said "tomorrow" yesterday.
>
> The above comments or recommendations are SWAG. Use at your own risk.
> John, W9DDD
> On 11/22/2022 7:07 AM, John Hargett wrote:
>> Will pull the panels from mine and get the dimensions. Can run several of each panel at the shop this week, either out of aluminum or carbon steel.  The one panel I have out already looks like 16 or 18 ga, all I have available is 16 ga  in both steel and aluminum or I think I have some 20 ga aluminum.  I can either supply blank panels , or if you know your layout and hole sizes needed , I can go ahead and punch those while I am running the parts.  Will run these on a CNC Euromac turret punch , so will take maybe 10 seconds to run. They will be raw material, no finish or paint.
>>   No charge for material or time, and don’t think it would cost much to mail out so will cover that cost, let me know what you are interested in and will get them done and mailed out.
>>
>> 73
>> John
>> KG5YLG
>>
>>
>> Sent from my iPad
>>
>> On Nov 21, 2022, at 6:32 PM, John W9DDD <w9ddd at tapr.org> wrote:
>>
>>> You remind me, I once bought a full sheet of 0.062 AL.  Made some of own enclosure back in the day.  I wonder if I still,have any pieces of that left that I can use.  If I can find it and it's big enough, I might be persuaded to share.
>>>
>>> John, W9DDD
>>>
>>>
>>> On Nov 21, 2022, at 3:08 PM, William Wuttke <wcwuttke at gmail.com> wrote:
>>>
>>>> Ace Hardware and Hobby Lobby have .032 x 4" x 10" aluminum sheets that require some cutting. I use these things for all sorts of small chassis-type stuff. Hacksaw & nibbling tool work fine.
>>>>
>>>> Bill
>>>> KE3BK
>>>>
>>>> On Mon, Nov 21, 2022 at 11:43 AM John W9DDD <w9ddd at tapr.org> wrote:
>>>>> I'm in hunt the also, but I'm looking for the panel that has the hole for tape exit and power switch for the aux reperf.
>>>>>
>>>>> John, W9DDD
>>>>>
>>>>>
>>>>> On Nov 21, 2022, at 10:50 AM, W2HX <w2hx at w2hx.com> wrote:
>>>>>
>>>>>> I am working to get my 28 ASR integrated with my transmitter and receiver. I am thinking about making a control panel to get things integrated and controllable directly from the ASR. There is a blank panel above the TD which would make a good location (see attached). I would rather not hack this one as it is original and unmolested. I am wondering if anyone has a spare panel that I could purchase? Even if your has holes or switches/lights already mounted I would consider it.
>>>>>>
>>>>>>
>>>>>>
>>>>>> Lemme know what you have!
>>>>>>
>>>>>>
>>>>>>
>>>>>> 73 Eugene W2HX
>>>>>>
>>>>>> Subscribe to my Youtube Channel: https://www.youtube.com/@w2hx
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>> <20221121_114413.jpg>
