[GreenKeys] WTB 28 ASR panel.

Tue Nov 22 14:06:04 EST 2022

So which version are you talking about?  Oh, I guess you are talking
about a blank panel cut to size unless you know what holes you want.

If I had found my AL stock, I was going to ask if someone could take a
straight on picture of their panel which I was going to then scale for
printing to actual size to get a fairly close to the right dimension.

OR

I haven't checked to see if my aux reperf has a tape feed out magnet,
but suspect it does.

The only hole that might be critical is the big tape exit hole, the
switches I would think can float a bit.  Not having the reaperf
installed yet, I don't know if there would be any interference from the
repert. once mounted.

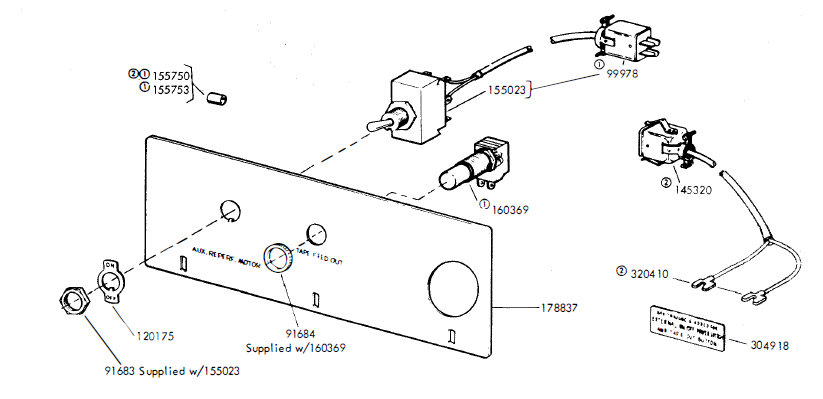

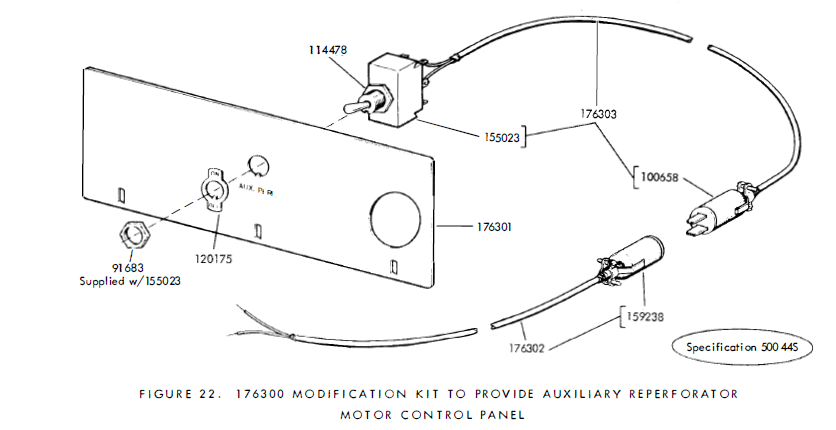

Snapshots from pages 274 & 275 of bulletin 1169B.

---
----
You said "tomorrow" yesterday.

The above comments or recommendations are SWAG. Use at your own risk.
John, W9DDD

On 11/22/2022 7:07 AM, John Hargett wrote:
> Will pull the panels from mine and get the dimensions. Can run several
> of each panel at the shop this week, either out of aluminum or carbon
> steel.  The one panel I have out already looks like 16 or 18 ga, all I
> have available is 16 ga  in both steel and aluminum or I think I have
> some 20 ga aluminum.  I can either supply blank panels , or if you
> know your layout and hole sizes needed , I can go ahead and punch
> those while I am running the parts.  Will run these on a CNC Euromac
> turret punch , so will take maybe 10 seconds to run. They will be raw
> material, no finish or paint.
>   No charge for material or time, and don’t think it would cost much
> to mail out so will cover that cost, let me know what you are
> interested in and will get them done and mailed out.
>
> 73
> John
> KG5YLG
>
>
> Sent from my iPad
>
> On Nov 21, 2022, at 6:32 PM, John W9DDD <w9ddd at tapr.org
> <mailto:w9ddd at tapr.org>> wrote:
>
>> You remind me, I once bought a full sheet of 0.062 AL.  Made some of
>> own enclosure back in the day.  I wonder if I still,have any pieces
>> of that left that I can use.  If I can find it and it's big enough, I
>> might be persuaded to share.
>>
>> John, W9DDD
>>
>>
>> On Nov 21, 2022, at 3:08 PM, William Wuttke <wcwuttke at gmail.com
>> <mailto:wcwuttke at gmail.com>> wrote:
>>
>>> Ace Hardware and Hobby Lobby have .032 x 4" x 10" aluminum sheets
>>> that require some cutting. I use these things for all sorts of small
>>> chassis-type stuff. Hacksaw & nibbling tool work fine.
>>>
>>> Bill
>>> KE3BK
>>>
>>> On Mon, Nov 21, 2022 at 11:43 AM John W9DDD <w9ddd at tapr.org
>>> <mailto:w9ddd at tapr.org>> wrote:
>>>
>>>     I'm in hunt the also, but I'm looking for the panel that has the
>>>     hole for tape exit and power switch for the aux reperf.
>>>
>>>     John, W9DDD
>>>
>>>
>>>     On Nov 21, 2022, at 10:50 AM, W2HX <w2hx at w2hx.com
>>>     <mailto:w2hx at w2hx.com>> wrote:
>>>
>>>>     I am working to get my 28 ASR integrated with my transmitter
>>>>     and receiver. I am thinking about making a control panel to get
>>>>     things integrated and controllable directly from the ASR. There
>>>>     is a blank panel above the TD which would make a good location
>>>>     (see attached). I would rather not hack this one as it is
>>>>     original and unmolested. I am wondering if anyone has a spare
>>>>     panel that I could purchase? Even if your has holes or
>>>>     switches/lights already mounted I would consider it.
>>>>
>>>>     Lemme know what you have!
>>>>
>>>>     73 Eugene W2HX
>>>>
>>>>     Subscribe to my Youtube Channel: https://www.youtube.com/@w2hx
>>>>
>>>>     <20221121_114413.jpg>
