[GreenKeys] Another Museum Piece-Parts Needed

[Duncan Brown]

John,

My pictures are of a M14BA unit and my not be quite the same as your
M14BR, but here are a couple.

Have you looked for a manual at https://navy-radio.com/manuals-ttycorp.htm?

Good luck,

Duncan
K2OEQ


On 11/5/2025 7:45 PM, John Spigel wrote:
> Duncan, unfortunately the mounting ends of the scales cast piece are
> broken off and missing. Also I can't tell where the screws in the
> middle of the cast piece attach. If you have pics, that may help
> answer the questions.
>
> 73, John W1AN
>
> On 05-Nov-25 15:47, Duncan Brown wrote:
>> John,
>>
>> The M 14BA & BR tape printers with external Range control were
>> typically used in telephone company TTY test boards, so that they
>> could easily test for distortion on the line.
>>
>> Do you have the full cast aluminum scale that is broken?  If not, I
>> have some pictures of similar units that might help in reproducing
>> the scale.
>>
>> 73, & have fun,
>>
>> Duncan Brown, K2OEQ
>> USASA    31J30
>>
>> Antique Wireless Association
>>   Communication Technologies Museum
>>     Asst. Curator, Commercial Equipment
>> (also chief TTY op & repairman)
>>
>> i-Telex: 212503
>>
>> www.antiquewireless.org
>>
>> Virtual AWA Museum TTY Tour: https://www.youtube.com/watch?v=TpB6jM90VV8
>>
>>
>>
>> On 11/5/2025 3:13 PM, John Spigel wrote:
>>> I have another Teletype Corp museum piece on the bench. It's a 14
>>> style tape printer with financial pallets and KB. It uses 3/8" tape.
>>> Probably from a stock broker. The pinion gear has no stamp but
>>> appears identical to another I have for 60WPM. The cabinet has a
>>> wood grain finish although in tough shape.It has a 1932 date stamp.
>>> Switches for 20/60 ma loop and polar/local are brought out nicely to
>>> the front as is a "knob" for adjusting the range. The range control
>>> is elegantly geared and there is a cast aluminum scale and pointer
>>> at the front of the cabinet. Along with a few other parts, some
>>> missing por broken on the selector mechanism the cast aluminum scale
>>> is also broken. This can be seen in the photo here:
>>>
>>> https://w1an.com/photos/equipment/14BR-newsm.jpg
>>>
>>> I'm sure I can get this working without the scale but best would be
>>> to have the 14BR parts manual and a bit of luck. Some 3/8" tape
>>> would be nice to have also.
>>>
>>> Thanks!
>>> 73, John W1AN
>>> ______________________________________________________________
>>> GreenKeys mailing list
>>> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>>> Help: http://mailman.qth.net/mmfaq.htm
>>> Post: mailto:GreenKeys at mailman.qth.net
>>>
>>>>>> Jordan Spencer Cunningham's GreenKeys Search Tool: https://
>>>>>> teletype.net/gksearch
>>>>>> 2002-to-present greenkeys archive: http://mailman.qth.net/
>>>>>> pipermail/greenkeys/
>>>>>> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/
>>>>>> greenkeys/greenkeys.html
>>>>>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://
>>>>>> comcents.com/tty/greenkeyssearch.html
>>>
>>> This list hosted by: http://www.qsl.net
>>> Please help support this email list: http://www.qsl.net/donate.html
>>> Message delivered to duncanancy at earthlink.net
>>
>>
>> ______________________________________________________________
>> GreenKeys mailing list
>> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>> Help: http://mailman.qth.net/mmfaq.htm
>> Post: mailto:GreenKeys at mailman.qth.net
>>
>>>>> Jordan Spencer Cunningham's GreenKeys Search Tool:
>>>>> https://teletype.net/gksearch
>>>>> 2002-to-present greenkeys archive:
>>>>> http://mailman.qth.net/pipermail/greenkeys/
>>>>> 1998-to-2001 greenkeys archive:
>>>>> http://mailman.qth.net/archive/greenkeys/greenkeys.html
>>>>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool:
>>>>> http://comcents.com/tty/greenkeyssearch.html
>>
>> This list hosted by: http://www.qsl.net
>> Please help support this email list: http://www.qsl.net/donate.html
>> Message delivered to w1an.dxusa at gmail.com
>
> ______________________________________________________________
> GreenKeys mailing list
> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:GreenKeys at mailman.qth.net
>
>>>> Jordan Spencer Cunningham's GreenKeys Search Tool:
>>>> https://teletype.net/gksearch
>>>> 2002-to-present greenkeys archive:
>>>> http://mailman.qth.net/pipermail/greenkeys/
>>>> 1998-to-2001 greenkeys archive:
>>>> http://mailman.qth.net/archive/greenkeys/greenkeys.html
>>>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool:
>>>> http://comcents.com/tty/greenkeyssearch.html
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html
> Message delivered to duncanancy at earthlink.net
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20251105/28b6f79a/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...

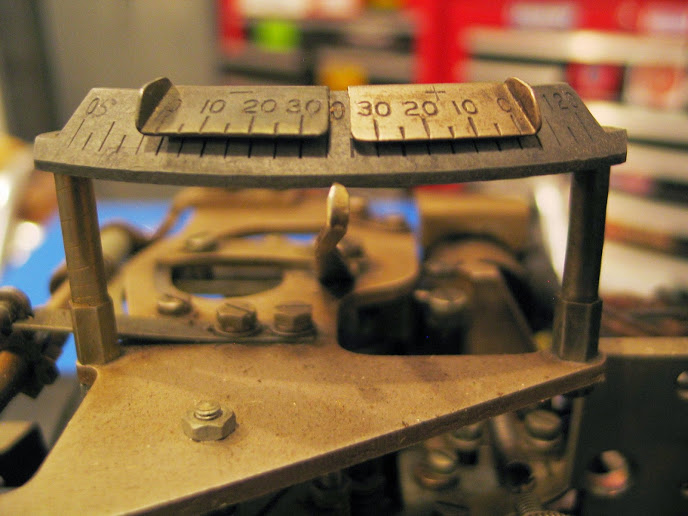

Name: M14 dual Range Finder.JPG
Type: image/jpeg
Size: 85968 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20251105/28b6f79a/attachment.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

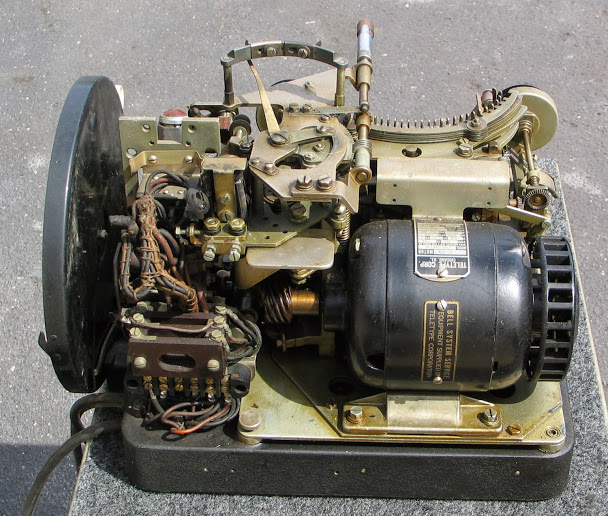

Name: M14 with external range finder crank - rear.JPG
