[CW] Fiber Spacer for old 1925 Vibroplex Original

[D.J.J. Ring, Jr.]

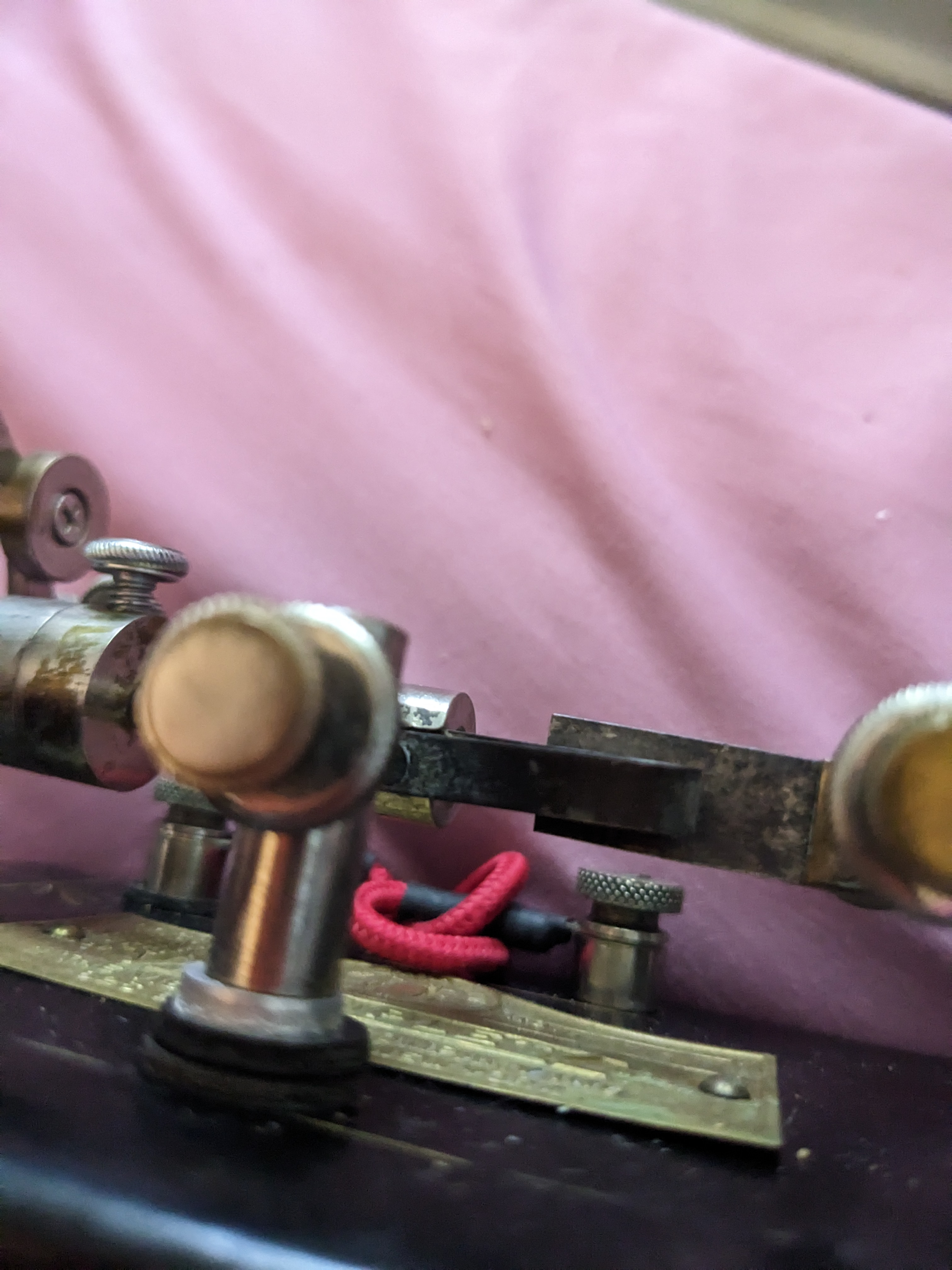

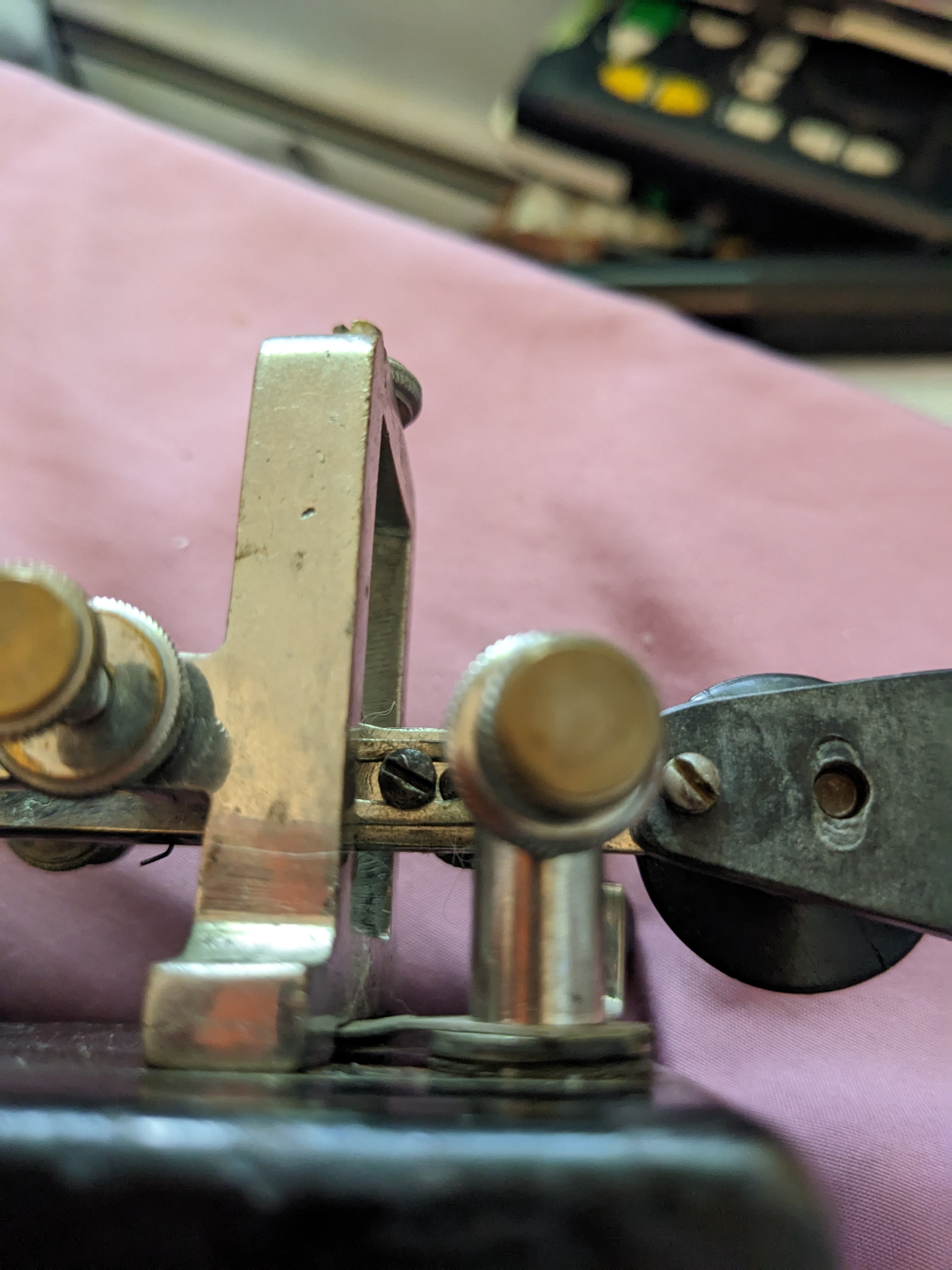

I only have a thin washer in front which is the reason that I cannot use
the key as I cannot tighten up on the screw on the dash contact and the
dash contact swivels around on me.

73
David N1EA

On Mon, Oct 16, 2023, 2:36 PM <bobhome at pacbell.net> wrote:

> Hi David,
>
>
>
> Do you not have the top insulating washer from the original?
>
>
>
> B
>
>
>
>
>
> *From:* D.J.J. Ring, Jr. <n1ea at arrl.net>
> *Sent:* Monday, October 16, 2023 11:23 AM
> *To:* sbjohnston at aol.com; CW Reflector <cw at mailman.qth.net>
> *Cc:* bobhome at pacbell.net
> *Subject:* Re: [CW] Fiber Spacer for old 1925 Vibroplex Original
>
>
>
> Steve,
>
>
>

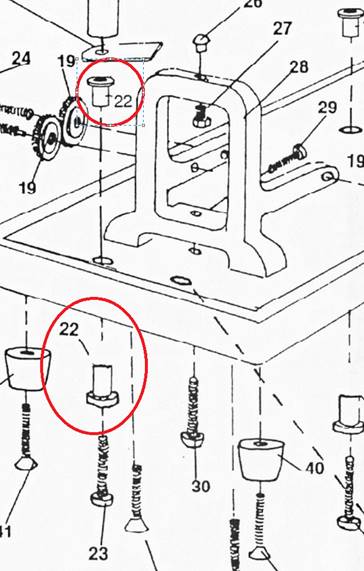

> Instead of the 1/2 inch long shoulder washer, we will need twice the
> number of 1/4 inch shoulder washers, one for the top and one for the
> bottom. That part number is 91145A148.
>
>
>
> Both the top requires insulation from the base and the bottom also.
>
>
>
> Rgds,
>
> DR
>
>
>
>
>
> On Mon, Oct 16, 2023 at 12:40 PM sbjohnston at aol.com <sbjohnston at aol.com>
> wrote:
>
>
>
> I needed some screws and nuts for FT-243 rebuilding (I operate AF4K
> Crystals) so I placed an order with McMaster-Carr and included a pack of
> the 91145A151 insulating shoulder washers that have been determined to be
> used on some bugs.  I'll be glad to send some to anyone who needs them.
>
>
>
> They are supposed to arrive tomorrow (I live within their Spee-Dee
> delivery area) so let me know if you want some.  I'm about to do some
> intense traveling so I will turn them around as quickly as I can before I
> leave.
>
>
>
> They are of course very light but aren't flat so I will have to put them
> in a padded envelope.  If you want to reimburse me for shipping it would be
> about $4.00 (with my discount) to my PayPal account sbjohnston at aol.com
>
>
>
> Reimbursement is not required for this offer, but people often want to
> help on these deals so I provide the info.
>
>
>
>
>
> Steve WD8DAS
>
>
>
> sbjohnston at aol.com
>
> http://www.wd8das.net/
>
> http://af4k-crystals.com/
>
> --------------------------------------------------------------------
>
> Radio is your best entertainment value.
>
> --------------------------------------------------------------------
>
>
>
>
>
>
>
>
>
> [image: image006.jpg]
>
>
