Mike, thanks for bringing this to light.

After checking the HP manual at
<http://www.home.agilent.com/agilent/techSupport.jspx?pid=3336B%3Aepsg%3Apro&pageMode=PL&t=79841.g.1&cc=US&lc=eng>

it appears that the HP 3336B takes the smaller mini-WECO connector: WECO 440A, and the HP 3336B option 01 takes the standard (larger) WECO 358A connector.

See paragraph 1-15 in the 3336  manual.

There's a suggestion from the Time-Nuts list that it's fairly easy to add a 50 ohm BNC output to a 3336B:
<http://www.mentby.com/gandalfg8/yikes-weco-is-hard-to-find.html>

Best regards,
-Steve

On Dec 30, 2011, at 11:54 PM, Mike KL6M wrote:

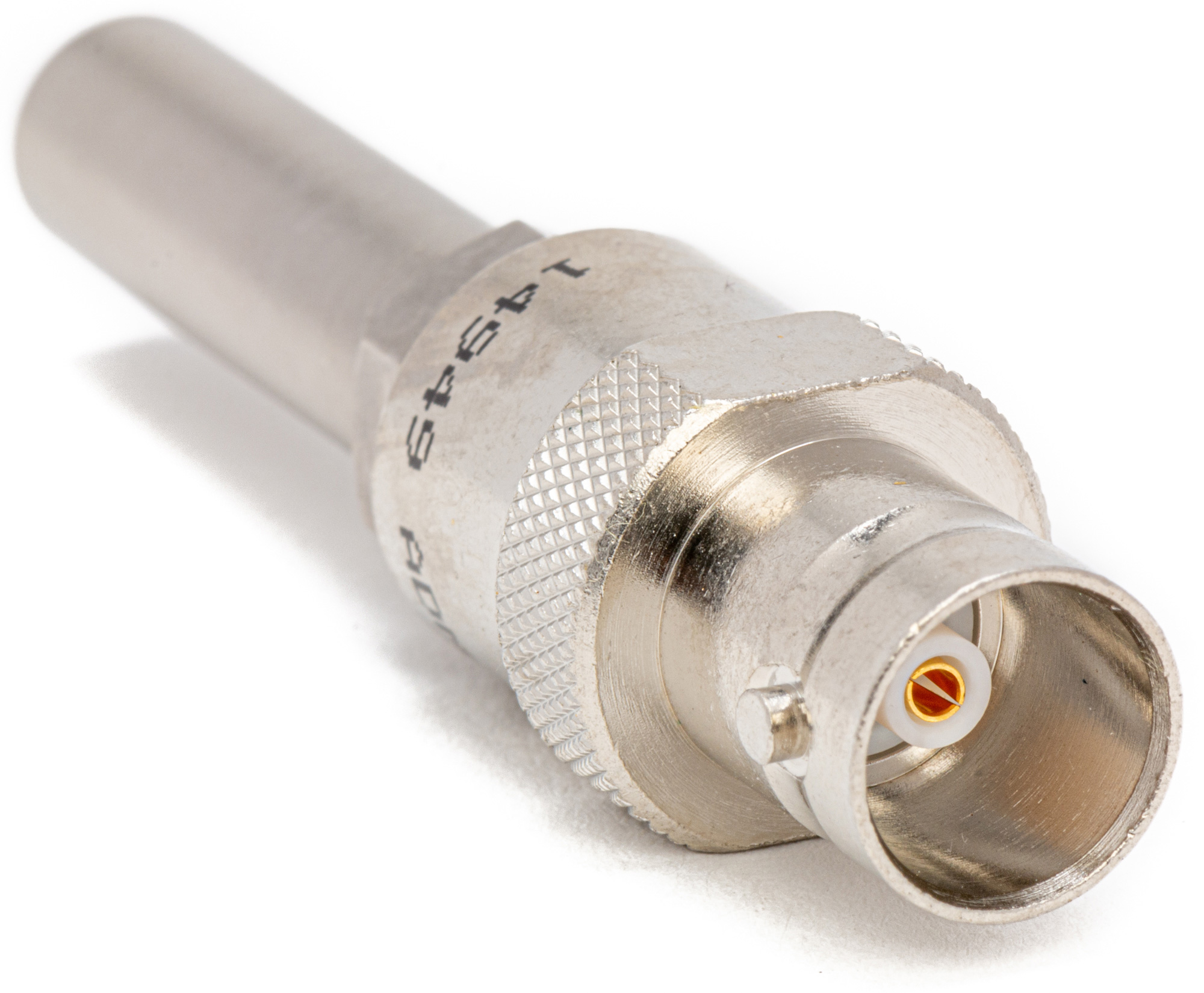

> This is exactly the size of the plug that fits my 3336B:
>
> http://www.markertek.com/productImage/HI-RES/ADMW12.JPG
>
> Looks like the mid size to me.
>
> The large one in the link appears that the plug diameter is of similar
> size to the diameter of the BNC.  This is NOT the size that fits my unit.
>
> 73
>
> Mike, KL6M      BP51dc      http://www.qsl.net/kl6m
>
>> I tried to post this to the net but got rejected (I haven't posted
>> anything in quite a while)
>>
>> 73
>>
>> Mike, KL6M      BP51dc      http://www.qsl.net/kl6m
>>
>> --------------------original message------------------------------
>> I have a 3336B here and its the smaller one (mid size) that fits mine.
>>
>> 73
>>
>> Mike, KL6M      BP51dc      http://www.qsl.net/kl6m
>>
>>>
>>> On Dec 30, 2011, at 6:30 PM, rbethman wrote:
>>>
>>>> The question remains, is the Canare one the right size?
>>>
>>> Don't buy this one; it's too small:
>>> <http://www.markertek.com/Connectors-Adapters/Video-Adapters/BNC-to-Patchplug-Adapters/Canare-Corporation-Of-America/BCJ-MVP.xhtml>
>>>
>>> Do buy this one:
>>> <<http://www.markertek.com/Connectors-Adapters/Video-Adapters/BNC-to-Patchplug-Adapters/Canare-Corporation-Of-America/BCJ-VWP.xhtml>
>>>
>>> Best regards,
>>> -Steve
>>>
>>> --
>>> Steve Byan <stevebyan at me.com>
>>> Littleton, MA 01460
>>>
>>>
>>>
