[MRCA] remote tuner

[B. Smith]

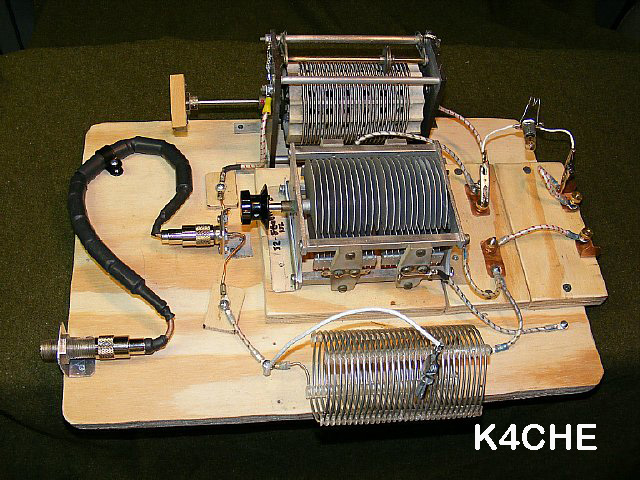

I built a version and called it the "Ugly Tuner".  Note the "Current
Detector" circuit  used to tune for maximum current and lets dem SWRs
take care of them selves.      The Detector circuit can be switched to
either side of the line to make sure everything is "balanced".
Z
Z

On 5/25/2023 10:19 AM, Mike Feher wrote:
>
> I built the AG6K design with some liberties. I made mine just manual
> and used toroids over a section of coax for the balun (W2DU). I have
> it in the shack running 500 watts and can tune my 290 foot inverted V
> fed with homemade 6 inch spaced ladder line. I can tune the antenna
> from 160 to 6 with no problems. Inductors are readily available as
> they are from the WWII BC375/191. 73 – Mike
>
> https://www.qsl.net/wa5bxo/ag6k/bbat.html
>
> Mike B. Feher, N4FS
>
> 89 Arnold Blvd.
>
> Howell NJ 07731
>
> 848-245-9115
>
> *From:* mrca-bounces at mailman.qth.net <mrca-bounces at mailman.qth.net>
> *On Behalf Of *dennis m semonick via MRCA
> *Sent:* Thursday, May 25, 2023 8:10 AM
> *To:* mrca at mailman.qth.net
> *Subject:* [MRCA] remote tuner
>
> looking for this type of Remote Antenna Coupler With or With Out
> Control Unit any type of Help tnx Dennis ka9dzr
>
>
