[MRCA] remote tuner

[Mike Feher]

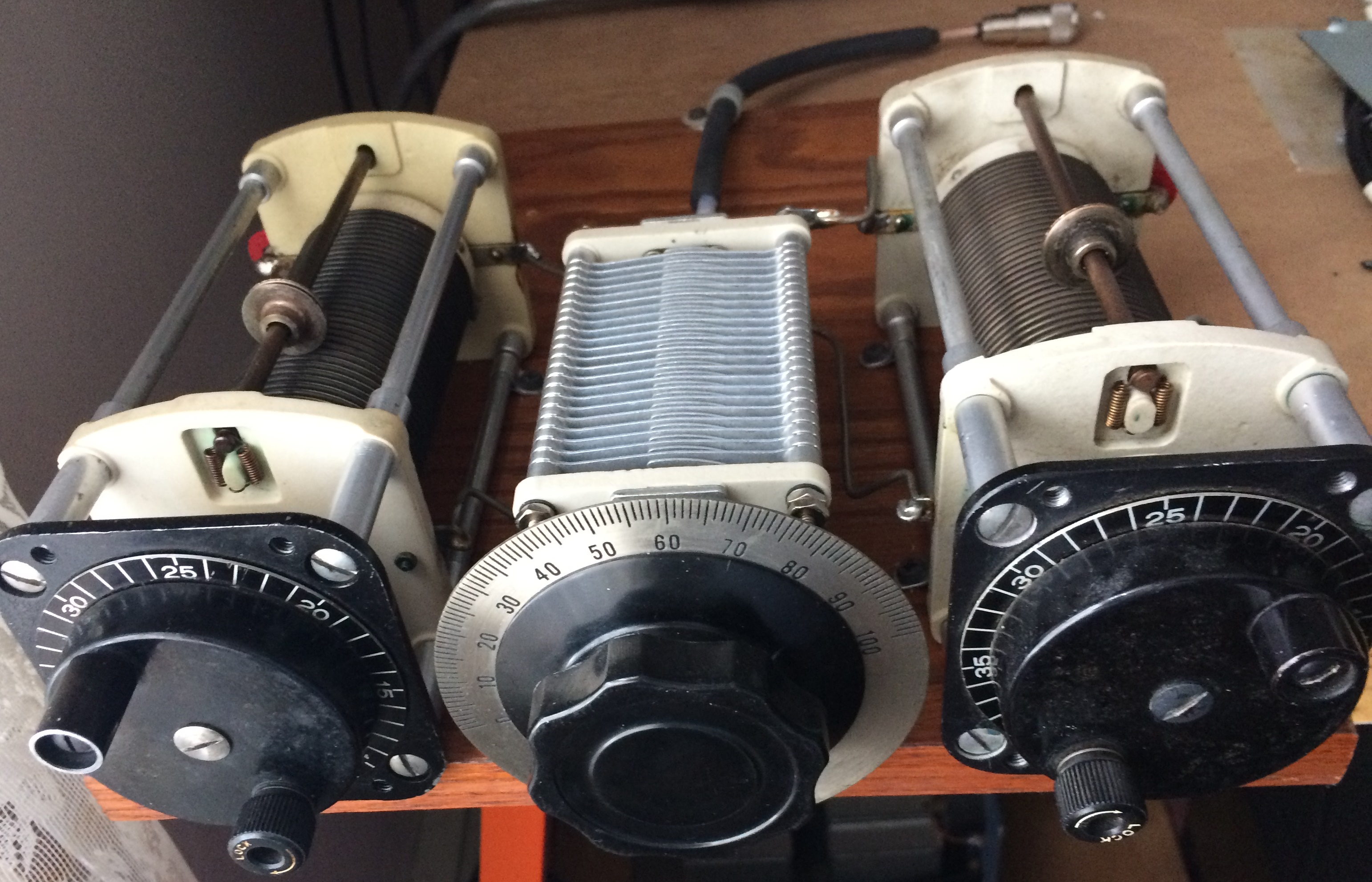

I built the AG6K design with some liberties. I made mine just manual and used toroids over a section of coax for the balun (W2DU). I have it in the shack running 500 watts and can tune my 290 foot inverted V fed with homemade 6 inch spaced ladder line. I can tune the antenna from 160 to 6 with no problems. Inductors are readily available as they are from the WWII BC375/191. 73 – Mike



https://www.qsl.net/wa5bxo/ag6k/bbat.html





Mike B. Feher, N4FS

89 Arnold Blvd.

Howell NJ 07731

848-245-9115



From: mrca-bounces at mailman.qth.net <mrca-bounces at mailman.qth.net> On Behalf Of dennis m semonick via MRCA
Sent: Thursday, May 25, 2023 8:10 AM
To: mrca at mailman.qth.net
Subject: [MRCA] remote tuner



looking for this type of Remote Antenna Coupler With or With Out Control Unit any type of Help tnx Dennis ka9dzr
