[MRCA] N3FRQ End-Fed Half-Wave

[Al Klase]

Gang,

This came up on the Moose and Squirrel Net just now.  And, it stretches
back to the origins of the net.

Details are buried here:
http://www.mrca.ar88.net/Old%20Pages/Net/11-11-2010.html
<http://www.mrca.ar88.net/Old%20Pages/Net/11-11-2010.html>

This works really well with radios that have good tuners like the
PRC-104.  The design is a simplified version of the wire provided with
the SCR-694 (BC-1306) and AN/GRC-9 man-pack field radios.

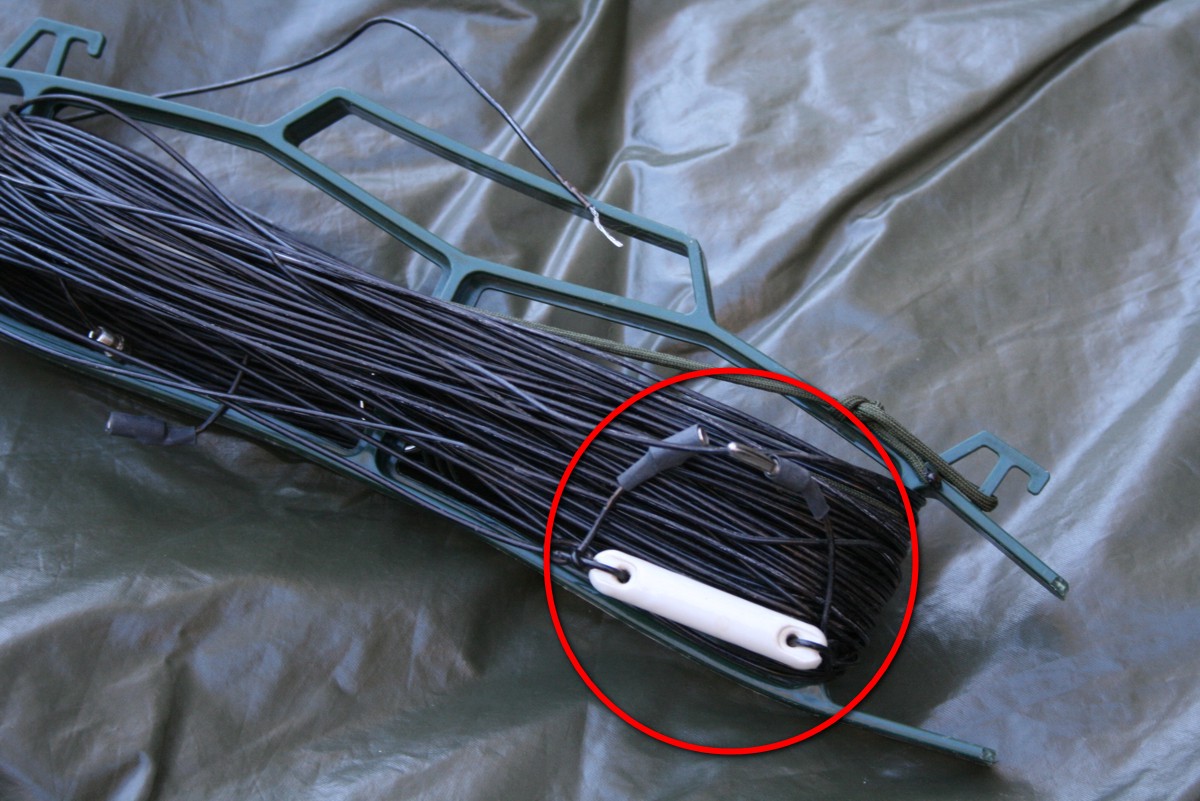

Link detail.

On a couple of occasions I ran the M&S Net successfully with 20 Watts,
and was Q5 all over the Northeast.

The advantage of a true end-fed half-wave is that you don't need much of
a ground.  A short counterpoise will take care of it. Also, an
inverted-V setup, with just one low support in the middle, works well
for NVIS.

The downside of this design is that you have to change the links to
change bands, but that usually not a big deal in a portable setup.

I'll get this it's own webpage soon.

Al

--
Al Klase - N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net
