[MRCA] RS-6 GRC-109

[WA5CAB at cs.com]

Al,

Any idea what else was in the kit?  I have a jump bag which when I acquired
it contained a GN-58-A, pair of GC-7, pair of half-length LG-3-B and
shortened LG-2-B (with no seat).  No cable, though.

Robert Downs - Houston

In a message dated 03/19/2014 10:30:06 AM Central Daylight Time,
ark at ar88.net writes:
> Breck,
>
> I have to believe that's the cable that goes with the GN-58 in the RB-47
> kit.  As Robert points out, the RS-6 breaks down into four units.  The RP-4
> "Power Supply" contains the power transformer, vibrator, and rectifier
> tube.  The RA-6 "Filter-Accessory Unit" incorporated the filter caps and the
> transmit-receive switch.  It also terminates the AC and DC power cords and
> and acts as the interface between the RP-6 and the RT-6 TX and RR-6 RX.  It
> has a 6-pin male plug on its side that will accept HV and LV DC from the
> GN-58 via your cable, rather than from the RP-6.
>
> Did you get the thing?
>
> Al
>
> On 3/18/2014 7:26 PM, B. Smith wrote:
>

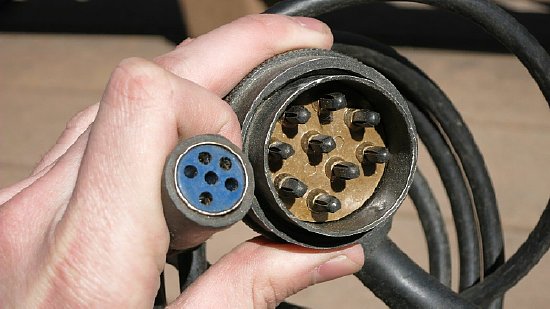

> >> Now my question is: Has anyone seen this cable before and if so what
>> kit was it in?
>>
>> Obviously it is going to power the transmitter direct while the receiver
>> runs off of batteries. Speaking of the BA-48 battery, photos of my rebuild
>> can be found at:
>> http://k4che.com/BA48/BA48pg1.htm
>>
>> Z
>>
>>
>


-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20140319/55f34958/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: MRCARS6G.jpg
Type: image/jpeg
Size: 41394 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20140319/55f34958/attachment-0001.jpg>
