[MRCA] RS-6 GRC-109

[Al Klase]

Robert,

I'll defer to Breck Smith on this one.  I think he's dug into this
farther than most of us.

Al

On 3/19/2014 2:27 PM, WA5CAB at cs.com wrote:
> Al,
>
> Any idea what else was in the kit?  I have a jump bag which when I
> acquired it contained a GN-58-A, pair of GC-7, pair of half-length
> LG-3-B and shortened LG-2-B (with no seat).  No cable, though.
>
> Robert Downs - Houston
>
> In a message dated 03/19/2014 10:30:06 AM Central Daylight Time,
> ark at ar88.net writes:
>> Breck,
>>
>> I have to believe that's the cable that goes with the GN-58 in the
>> RB-47 kit.  As Robert points out, the RS-6 breaks down into four
>> units.  The RP-4 "Power Supply" contains the power transformer,
>> vibrator, and rectifier tube.  The RA-6 "Filter-Accessory Unit"
>> incorporated the filter caps and the transmit-receive switch.  It
>> also terminates the AC and DC power cords and and acts as the
>> interface between the RP-6 and the RT-6 TX and RR-6 RX.  It has a
>> 6-pin male plug on its side that will accept HV and LV DC from the
>> GN-58 via your cable, rather than from the RP-6.
>>
>> Did you get the thing?
>>
>> Al
>>
>> On 3/18/2014 7:26 PM, B. Smith wrote:
>>

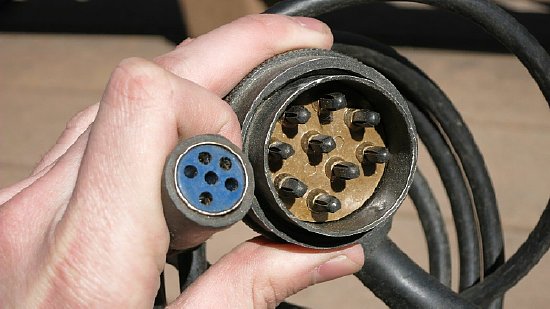

>>> Now my question is: Has anyone seen this cable before and if so what
>>> kit was it in?
>>>
>>> Obviously it is going to power the transmitter direct while the
>>> receiver runs off of batteries. Speaking of the BA-48 battery,
>>> photos of my rebuild can be found at:
>>> http://k4che.com/BA48/BA48pg1.htm
>>>
>>> Z
>>>
>>
>
>

--
Al Klase -- N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
