[Milsurplus] TR-50XM Technical Radio Co.

[Todd, KA1KAQ]

Tech manual is TM 11-838 if that's any help. Stand alone version is the
T-50M.

On Mon, Jan 27, 2020 at 5:40 PM Hubert Miller <Kargo_cult at msn.com> wrote:

> Looks like the same panel size and some of the mechanical design was held.
> Certainly too expensive to build for war – expendable use in
>
> vehicles or small vessels.
>
> -Hue
>
>
>
> >*From:* Nick England
>
> *Sent:* Monday, January 27, 2020 2:25 PM
> *To:* Hubert Miller
>
> *Subject:* Re: [Milsurplus] TR-50XM Technical Radio Co.
>
>
>
> Check out this thread. Looks like the LRR-5 is similar to the receiver
> portion of the R-T set in your photo????
>
>
>
> https://antiqueradios.com/forums/viewtopic.php?f=5&t=283850
> <https://nam11.safelinks.protection.outlook.com/?url=https%3A%2F%2Fantiqueradios.com%2Fforums%2Fviewtopic.php%3Ff%3D5%26t%3D283850&data=02%7C01%7C%7C8c8bf383bbe2493d35e208d7a377bd92%7C84df9e7fe9f640afb435aaaaaaaaaaaa%7C1%7C0%7C637157606982442137&sdata=tIAF4UCNAYriKBQm9aOcFVWIjMXsXBFE3MiofG8qVc8%3D&reserved=0>
>
>
>
> Cheers
>
> Nick
>

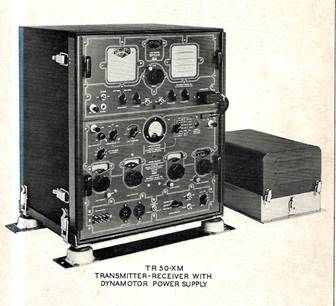

> [image: A close up of electronics Description automatically generated]
>
>
>
> The window to the left is the actual frequency indicator, two bands 1500 –
> 4300 and 4300 -12000. Right above the tuning knob is a logging scale.
>
> One the right side is a speaker with louvres. The receiver has a 6J5 HFO
> with VR105 regulator and 6J5 BFO.  Different from TCS.
>
>
>
>
>
>
>
>
>
