[Milsurplus] TR-50XM Technical Radio Co.

[Hubert Miller]

Looks like the same panel size and some of the mechanical design was held. Certainly too expensive to build for war – expendable use in
vehicles or small vessels.
-Hue

>From: Nick England
Sent: Monday, January 27, 2020 2:25 PM
To: Hubert Miller
Subject: Re: [Milsurplus] TR-50XM Technical Radio Co.

Check out this thread. Looks like the LRR-5 is similar to the receiver portion of the R-T set in your photo????

https://antiqueradios.com/forums/viewtopic.php?f=5&t=283850<https://nam11.safelinks.protection.outlook.com/?url=https%3A%2F%2Fantiqueradios.com%2Fforums%2Fviewtopic.php%3Ff%3D5%26t%3D283850&data=02%7C01%7C%7C8c8bf383bbe2493d35e208d7a377bd92%7C84df9e7fe9f640afb435aaaaaaaaaaaa%7C1%7C0%7C637157606982442137&sdata=tIAF4UCNAYriKBQm9aOcFVWIjMXsXBFE3MiofG8qVc8%3D&reserved=0>

Cheers
Nick

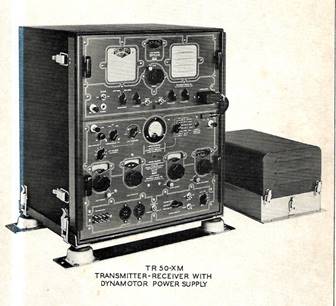

[A close up of electronics    Description automatically generated]

The window to the left is the actual frequency indicator, two bands 1500 – 4300 and 4300 -12000. Right above the tuning knob is a logging scale.
One the right side is a speaker with louvres. The receiver has a 6J5 HFO with VR105 regulator and 6J5 BFO.  Different from TCS.
