[GreenKeys] TT-76 Update Fixed !

[MilComm Guy]

A big thank you to those who replied, Ron Boltz MR Ratt Rig sent me a
picture followed up by a call to walk me through on how to fix it.  The
metal plate between the magnet and set screw needed a nudge, a fingernail
nudge is all it took and it came alive.  The meat grinder noise was a pair
of flat facing gears under the Ma change switch that were just barely
touching, once the magnet came alive they separated and when you type they
engage.  A new ribbon and a fresh roll of tape and I think we are in
business.

Thank you again Greenkeys/Ron

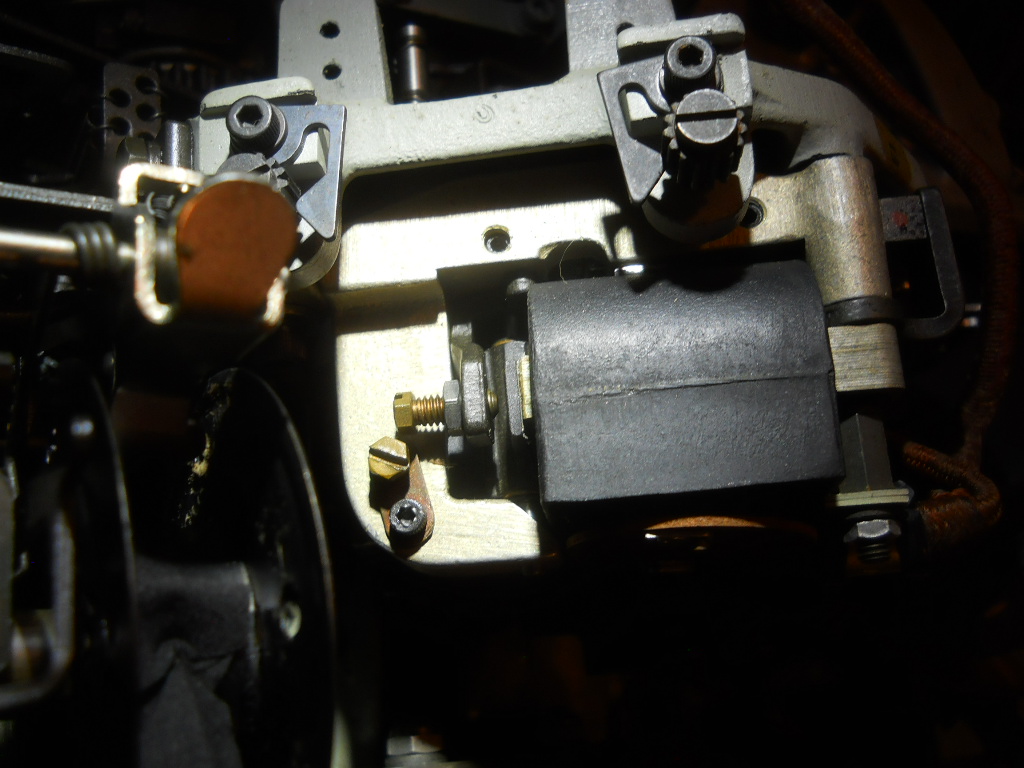

[image: DSCN0194.JPG]

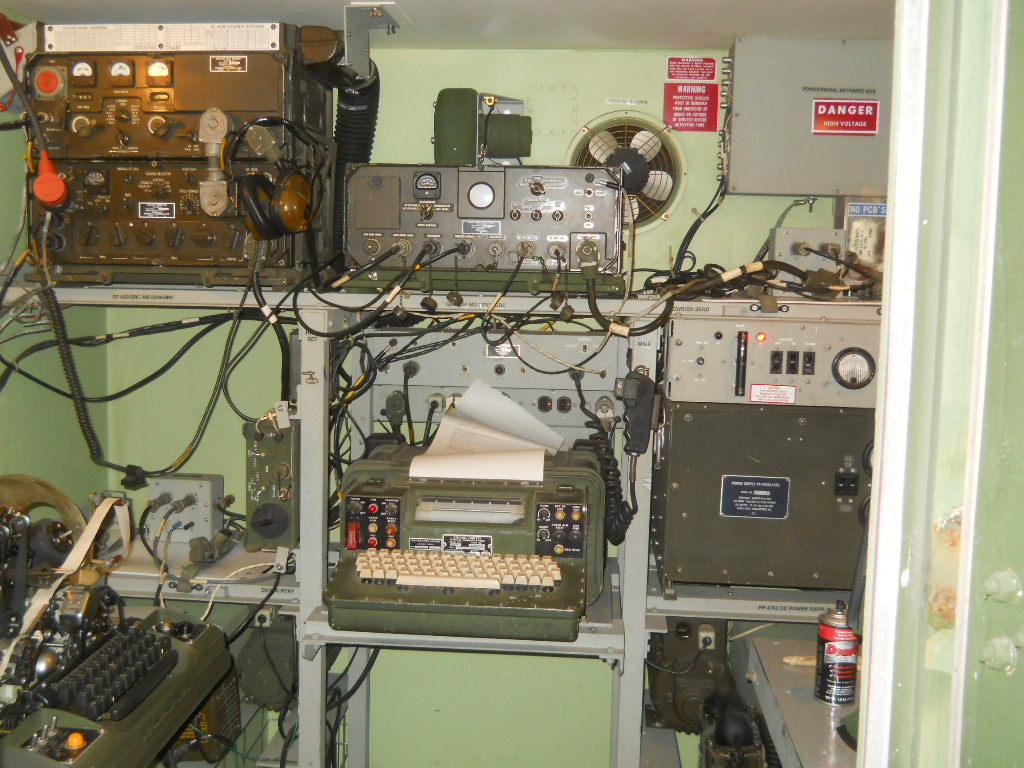

[image: DSCN0195.JPG]
 73
Mark
K1HF
