[GreenKeys] TT-76 Help/Howard Weeks

[Duncanancy]

Mark, The shaft under the moto drivs the keyboard.  If it is turning you should be able to transmit.The grinding you hear may be from the function clutch , behind the ribbons.  It has teeth that engage the two halves of the clutch, but some times they don't disengage fully, making a grinding sound. There are two arms on one side of the clutch. One should hit a ball  bearing to disengage the clutch..Try to push on it to fully disengage the clutchGood luckDuncanK2OEQ Sent from my Kleinschmidt TT-4/TG, the US Army's first portable digital communications device, 1950-1980

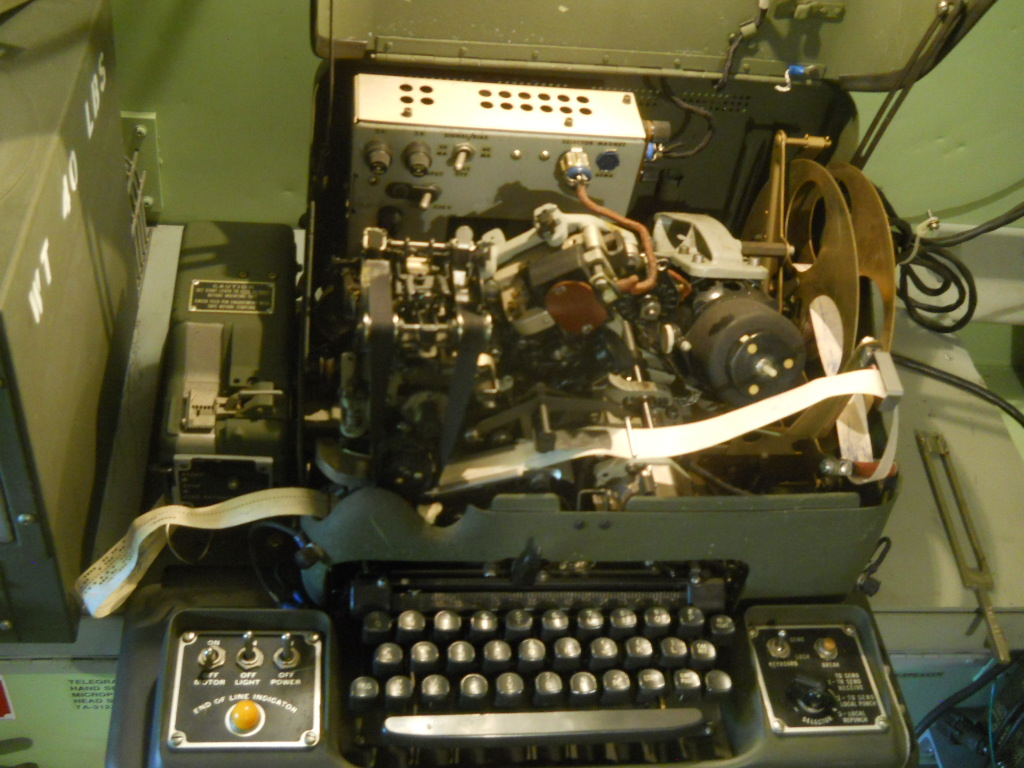

-------- Original message --------From: MilComm Guy <m38inmaine at gmail.com> Date: 5/30/23  14:50  (GMT-05:00) To: Greenkeys <greenkeys at mailman.qth.net> Subject: [GreenKeys] TT-76 Help/Howard Weeks It's been 10 years since I last had a TT-76, it was in a GRC-142 shelter which I sold about 10 years ago.  When I secured a TT-76 for it I put out a call for help on here and I believe his name was Howard Weeks responded, I shipped it to him and a short time later I had a 100% working TT-76.  I hope I have the name right, it's been a while, I think he was from GA or nearby.Well here I am again with another GRC-142 and a sick TT-76, the motor turns and I am able to adjust the speed but it sounds like a meat grinder instead of just a motor hum.  I lightly touched up the bearings with some Kroil and it did not change.  When I type I get no response, I do see what looks like a clutch linkage front right just under and left of the motor closing when I type so it's doing something.This machine is really out of my area of ability and I am hoping I can find MR. Weeks again or another to get it back up and running again.  I have the UGC-74, radio's, modem etc all working again.73MarkK1HF
