[GreenKeys] Model 14 component ID

[Eric Moore]

That is it! Thanks!

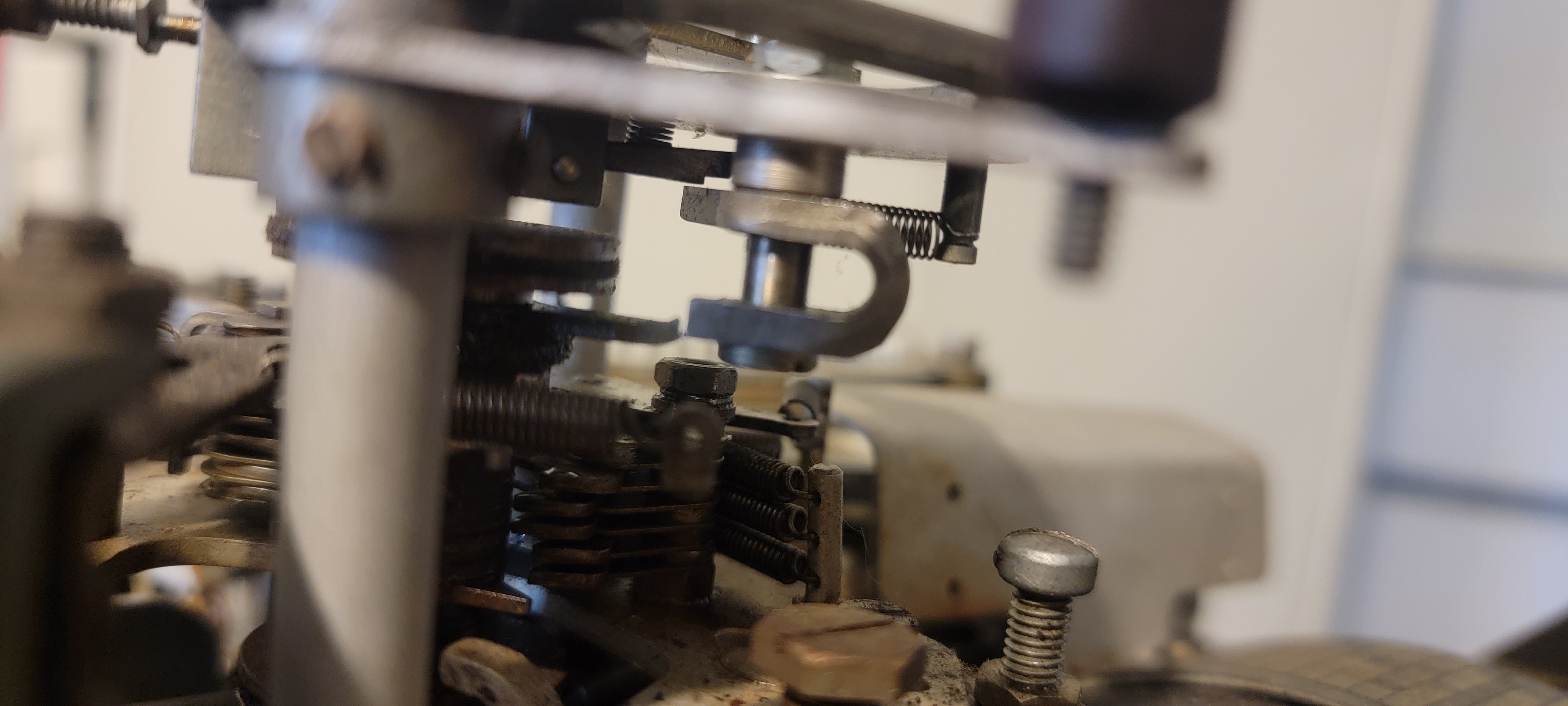

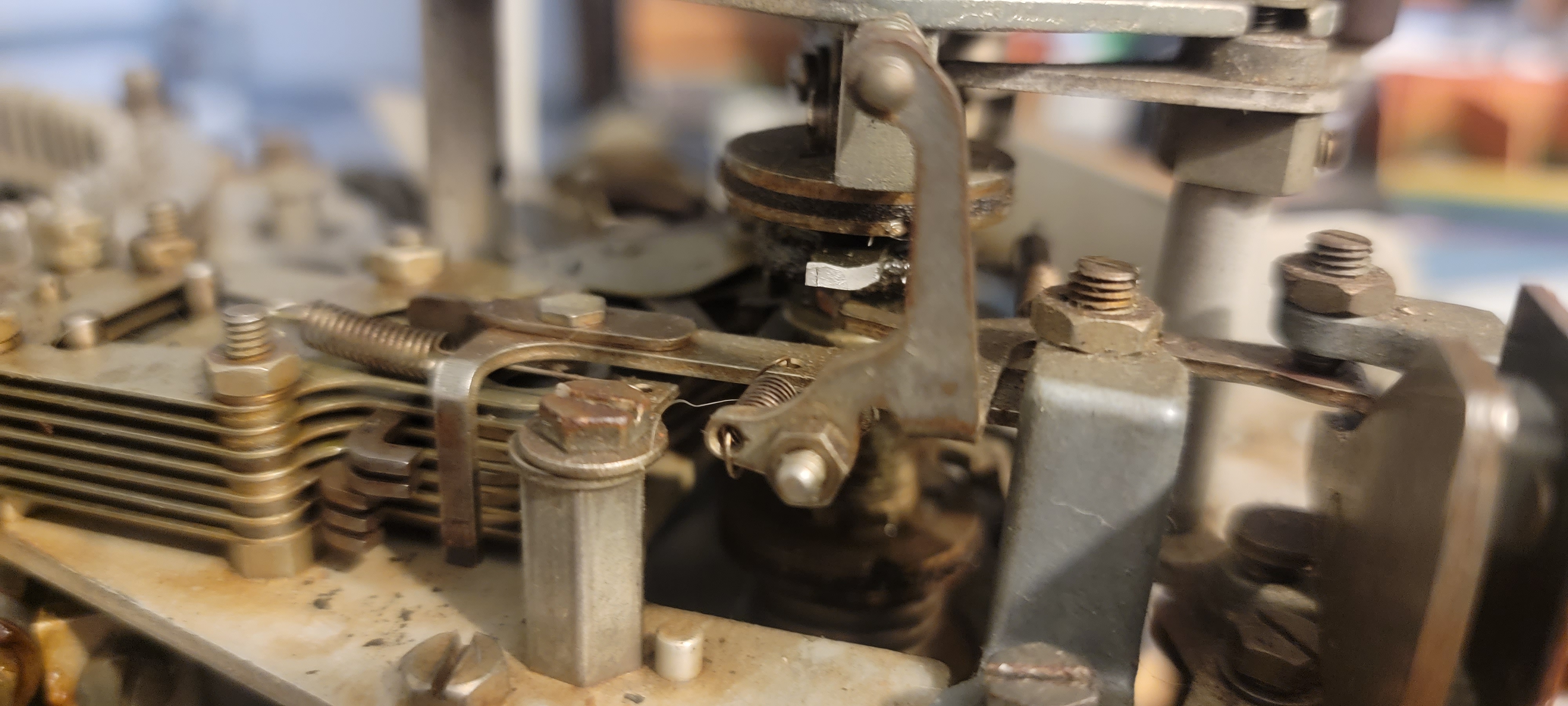

I have attached 2 photos. One shows the stop pawl and the piece it stops
(hence the name) on the print shaft, and the other the piece the pawl stops
where you can see indication of I think a break.

Because the stop pawl is not being caught, the FPR runs open.

I also compared motion on my type bars mech to the one I got from Jim and
it is a world of difference. I will need to swap the printer, the mate on
the code bars at the top of the FPR looks very straightforward.

-Eric

On Sun, Apr 23, 2023, 5:26 PM John, W9DDD <w9ddd at tapr.org> wrote:

> Maybe it's this?
>
>
> As installed on a reperf:
>
> https://www.navy-radio.com/tty/relay/tt200-fgc38a-05.jpg
>
>
> ---
> ----
> You said "tomorrow" yesterday.
>
> The above comments or recommendations are SWAG. Use at your own risk.
> John, W9DDD
>
> On 4/23/2023 8:56 AM, Eric Moore wrote:
>
> Hi everyone. I received a spare set of parts for my model 14 (thanks Jim!)
> and I recognize everything but the component in the attached picture.
>
> It has 3 magnets, and runs to an expanded terminal block with a beautiful
> plug interface (parts are labelled as part of a pluggable system).
>
> Is this an option of some sort for paper handling perhaps?
>
> Thank you for any help as always!
>
> -Eric
>
>
>
>
