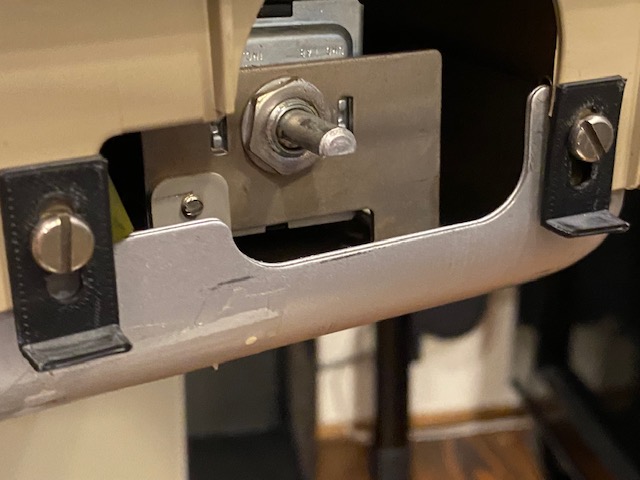

To help keep the front panel in place, I used four simple 3D printed
mini-brackets. The Model 33 is a testament to Wayne's ability to recover a
seemingly destroyed unit..
Photos attached along with the OpenScad model - a simple aluminum bracket
would work as well..

On Tue, Aug 3, 2021 at 4:29 PM Michael Katzmann <vk2bea at gmail.com> wrote:

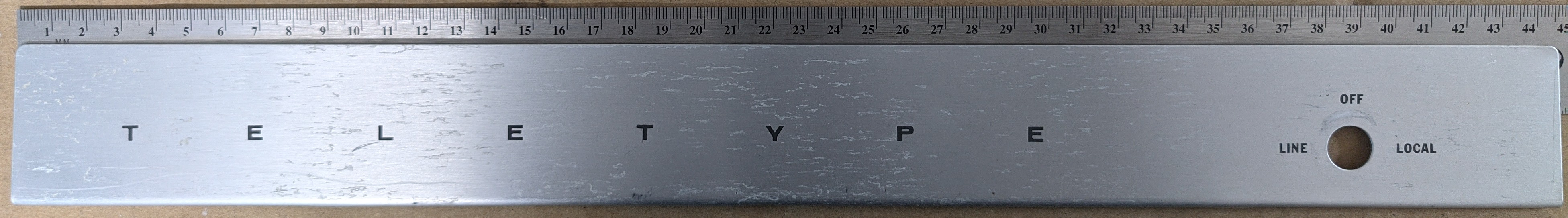

> Here are a couple of photos showing the lettering..  I can get some more
> precise measurements if needed.
> Michael
> [image: 33tty1.jpg][image: 33tty2.jpg]
>
> On Tue, Aug 3, 2021 at 4:58 PM WAYNE <teletypeparts at comcast.net> wrote:
>
>> The front plate is held on by a 180 degree bend on a tab in the middle of
>> the plate.  Also there are two small nubs on the base pan on both sides
>> that keep it from falling out.
>>
>> It just slides on from the bottom with the middle tab sliding under the
>> plastic cover and the plate slides over the two nubs and clicks into
>> place.
>>
>> On a 33 the Line/Off/Local switch helps hold the right side some.  On
>> Telex 32's there is nothing to help and the front plate slides off
>> sometimes.
>>

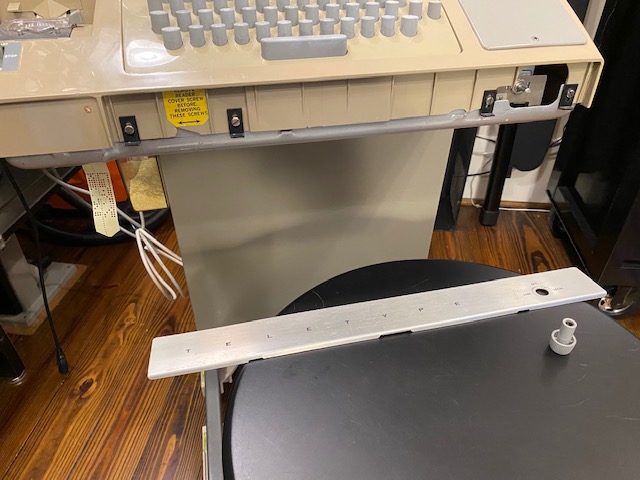

>> Here are some pics that might help.  The front plate is off a TWX 33 and
>> the labels are homemade.  The hole for the knob is slightly larger than the
>> diameter of the knob.  Its not pretty but will work.
>>
>> I forgot to take a pic of the 2 little cutouts on the plate that slide
>> over the nubs but you can see one in pic #3.
>>
>> The pics will probably get bounced on GK but they will show up later.
>>
>> 73,
>>
>> Wayne
>> KB1FDW
>>
>> On 08/02/2021 8:51 PM Doug Jackson <doug at doughq.com> wrote:
>>
>>
>> Does anybody have a detailed engineering drawing for these?
>>
>> And also information as to the thickness of the material?
>>
