[GreenKeys] ISO: ASR-33 Front Plate Cover/Decal

Tue Aug 3 21:48:47 EDT 2021

.. forgot the 3D print image...

On Tue, Aug 3, 2021 at 8:42 PM Matthew Greer <mngreer53 at gmail.com> wrote:

> To help keep the front panel in place, I used four simple 3D printed
> mini-brackets. The Model 33 is a testament to Wayne's ability to recover a
> seemingly destroyed unit..
> Photos attached along with the OpenScad model - a simple aluminum bracket
> would work as well..
>
> On Tue, Aug 3, 2021 at 4:29 PM Michael Katzmann <vk2bea at gmail.com> wrote:
>

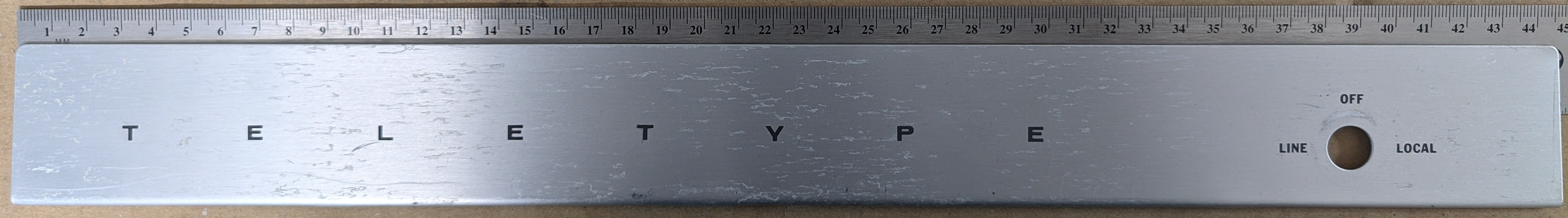

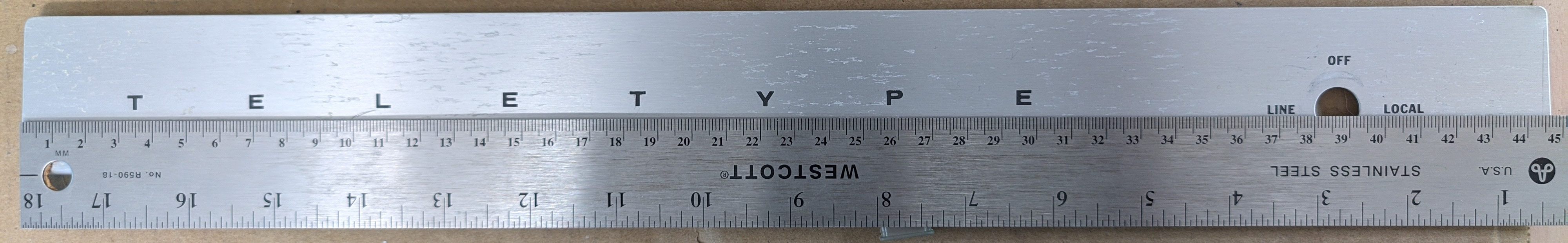

>> Here are a couple of photos showing the lettering..  I can get some more
>> precise measurements if needed.
>> Michael
>> [image: 33tty1.jpg][image: 33tty2.jpg]
>>
>> On Tue, Aug 3, 2021 at 4:58 PM WAYNE <teletypeparts at comcast.net> wrote:
>>
>>> The front plate is held on by a 180 degree bend on a tab in the middle
>>> of the plate.  Also there are two small nubs on the base pan on both sides
>>> that keep it from falling out.
>>>
>>> It just slides on from the bottom with the middle tab sliding under the
>>> plastic cover and the plate slides over the two nubs and clicks into
>>> place.
>>>
>>> On a 33 the Line/Off/Local switch helps hold the right side some.  On
>>> Telex 32's there is nothing to help and the front plate slides off
>>> sometimes.
>>>
>>> Here are some pics that might help.  The front plate is off a TWX 33 and
>>> the labels are homemade.  The hole for the knob is slightly larger than the
>>> diameter of the knob.  Its not pretty but will work.
>>>
>>> I forgot to take a pic of the 2 little cutouts on the plate that slide
>>> over the nubs but you can see one in pic #3.
>>>
>>> The pics will probably get bounced on GK but they will show up later.
>>>
>>> 73,
>>>
>>> Wayne
>>> KB1FDW
>>>
>>> On 08/02/2021 8:51 PM Doug Jackson <doug at doughq.com> wrote:
>>>
>>>
>>> Does anybody have a detailed engineering drawing for these?
>>>
>>> And also information as to the thickness of the material?
>>>
>>> And - how is it held in place?
>>>
