[GreenKeys] ISO: ASR-33 Front Plate Cover/Decal

[Michael Katzmann]

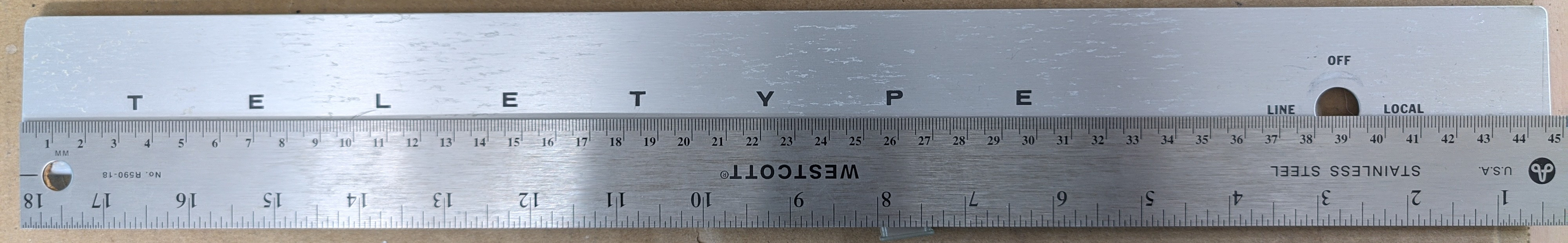

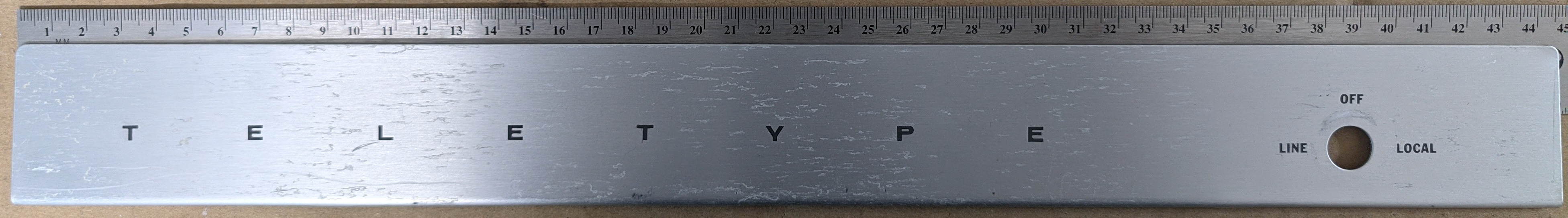

Here are a couple of photos showing the lettering..  I can get some more
precise measurements if needed.
Michael
[image: 33tty1.jpg][image: 33tty2.jpg]

On Tue, Aug 3, 2021 at 4:58 PM WAYNE <teletypeparts at comcast.net> wrote:

> The front plate is held on by a 180 degree bend on a tab in the middle of
> the plate.  Also there are two small nubs on the base pan on both sides
> that keep it from falling out.
>
> It just slides on from the bottom with the middle tab sliding under the
> plastic cover and the plate slides over the two nubs and clicks into
> place.
>
> On a 33 the Line/Off/Local switch helps hold the right side some.  On
> Telex 32's there is nothing to help and the front plate slides off
> sometimes.
>
> Here are some pics that might help.  The front plate is off a TWX 33 and
> the labels are homemade.  The hole for the knob is slightly larger than the
> diameter of the knob.  Its not pretty but will work.
>
> I forgot to take a pic of the 2 little cutouts on the plate that slide
> over the nubs but you can see one in pic #3.
>
> The pics will probably get bounced on GK but they will show up later.
>
> 73,
>
> Wayne
> KB1FDW
>
> On 08/02/2021 8:51 PM Doug Jackson <doug at doughq.com> wrote:
>
>
> Does anybody have a detailed engineering drawing for these?
>
> And also information as to the thickness of the material?
>
> And - how is it held in place?
>
> I am in the same position - My ASR33 is missing the front panel.
>
> Kindest regards,
>
> Doug Jackson
>
> em: doug at doughq.com
> ph: 0414 986878
>
> Check out my awesome clocks at www.dougswordclocks.com
> Follow my amateur radio adventures at vk1zdj.net
>
>
>
> On Tue, 3 Aug 2021 at 01:27, Timothy Colegrove <
> timothy.colegrove at gmail.com> wrote:
>
> Hi everyone! I’m in the thick of restoring a pair of ASR-33’s and both are
> missing their front panel/plate cover decal. Does anyone on here have one
> (or even two!) to sell/trade? I may have other ASR-33 parts to offer in
> exchange.  ______________________________________________________________
