[GreenKeys] AC Sync Wire Lead

[COURYHOUSE at aol.com]

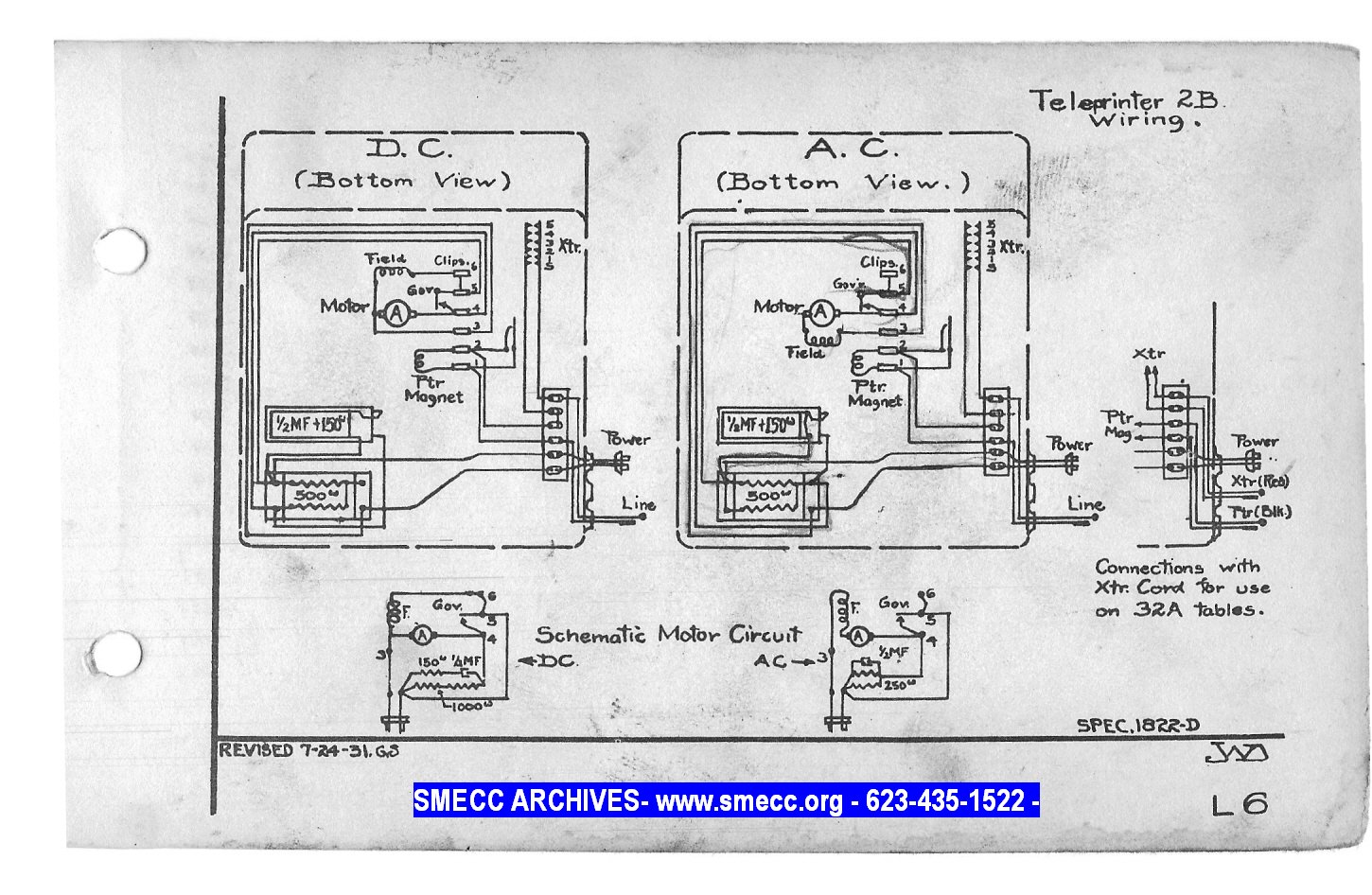

KEVEN - ABOVE PHOTO  INLINE HERE IS  2B  WIRING ONE   WITH AC  MOTOR AND
ONE  WITH DC MOTOR IF THIS  IS  NEEDED  THERE U  GO!  ED# _WWW.SMECC.ORG_
(http://www.SMECC.ORG)






















In a message dated 11/27/2016 9:37:20 A.M. US Mountain Standard Time,
greenkeys at mailman.qth.net writes:

did  the DC motor  die  or  were you  looking  for lower  RFI without the
governor?


In a message dated 11/26/2016 7:15:44 P.M. US Mountain Standard Time,
kevin.dewitt at gmail.com writes:

Greetings


My latest WU 2B with the 3A Gumming Table is getting a new-to-it AC
Synchronous Motor. Upon attempting the install it has been determined that  the
cloth covered wire insulation on the leads is much crunchier than I  like. The
leads appear to be about 16 gauge. The leads on the other 2B I  have are
closer to 18 gauge. I checked it with a meter and it wasn't shorted  but I do
not trust it.


So, it seems to me like the next step would be to (gently) pull the fan
and attack it from that end but wasn't there some discussion about  difficulty
in (pulling the fan) several years ago? I tried to search the  archives but
found nothing. So, rewire or no and if so can i get away with  18 gauge?


Motorless in Ohio


Kevin/ww2tty
