[GreenKeys] AC Sync Wire Lead

[drlegendre .]

You'll be just fine with 18ga. Take a look at this AWG rating table:

http://www.powerstream.com/Wire_Size.htm

18ga. = 16A max / 16ga = 22A max (for chassis wiring). Even the 18ga is
good for like 10X the average current for that motor, which I'd guess is
1.5A or so?

On Sun, Nov 27, 2016 at 11:09 AM, Ed Sharpe Archivist for SMECC via
GreenKeys <greenkeys at mailman.qth.net> wrote:

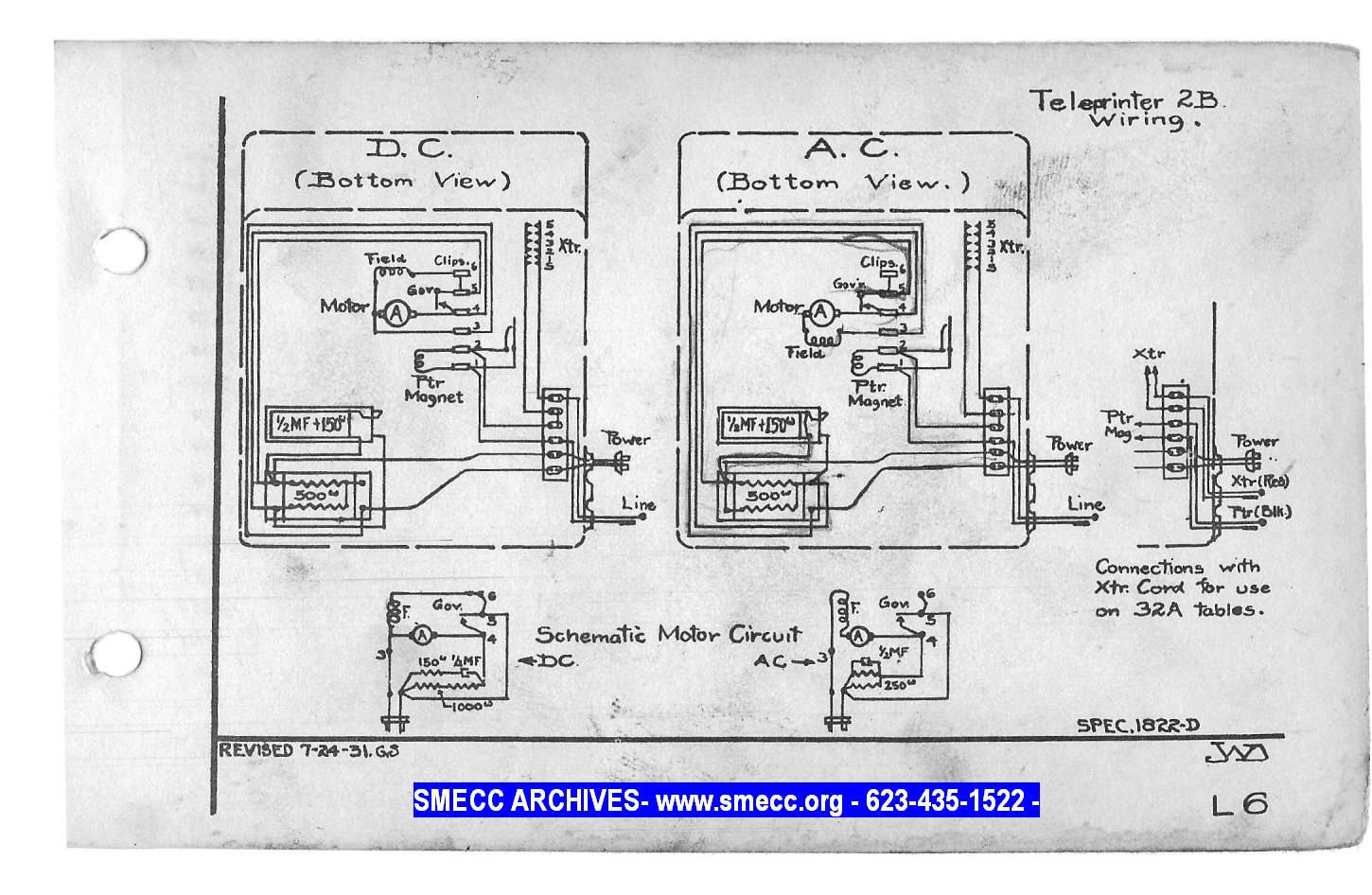

> KEVEN - ABOVE PHOTO  INLINE HERE IS  2B  WIRING ONE  WITH AC  MOTOR AND
> ONE  WITH DC MOTOR IF THIS  IS NEEDED  THERE U  GO!  ED# WWW.SMECC.ORG
> <http://www.SMECC.ORG>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
> In a message dated 11/27/2016 9:37:20 A.M. US Mountain Standard Time,
> greenkeys at mailman.qth.net writes:
>
> did  the DC motor  die  or  were you looking  for lower  RFI without the
> governor?
>
> In a message dated 11/26/2016 7:15:44 P.M. US Mountain Standard Time,
> kevin.dewitt at gmail.com writes:
>
> Greetings
>
> My latest WU 2B with the 3A Gumming Table is getting a new-to-it AC
> Synchronous Motor. Upon attempting the install it has been determined that
> the cloth covered wire insulation on the leads is much crunchier than I
> like. The leads appear to be about 16 gauge. The leads on the other 2B I
> have are closer to 18 gauge. I checked it with a meter and it wasn't
> shorted but I do not trust it.
>
> So, it seems to me like the next step would be to (gently) pull the fan
> and attack it from that end but wasn't there some discussion about
> difficulty in (pulling the fan) several years ago? I tried to search the
> archives but found nothing. So, rewire or no and if so can i get away with
> 18 gauge?
>
> Motorless in Ohio
>
> Kevin/ww2tty
>
>
