[GreenKeys] The Iron Horse in action...

[Duncan Brown]

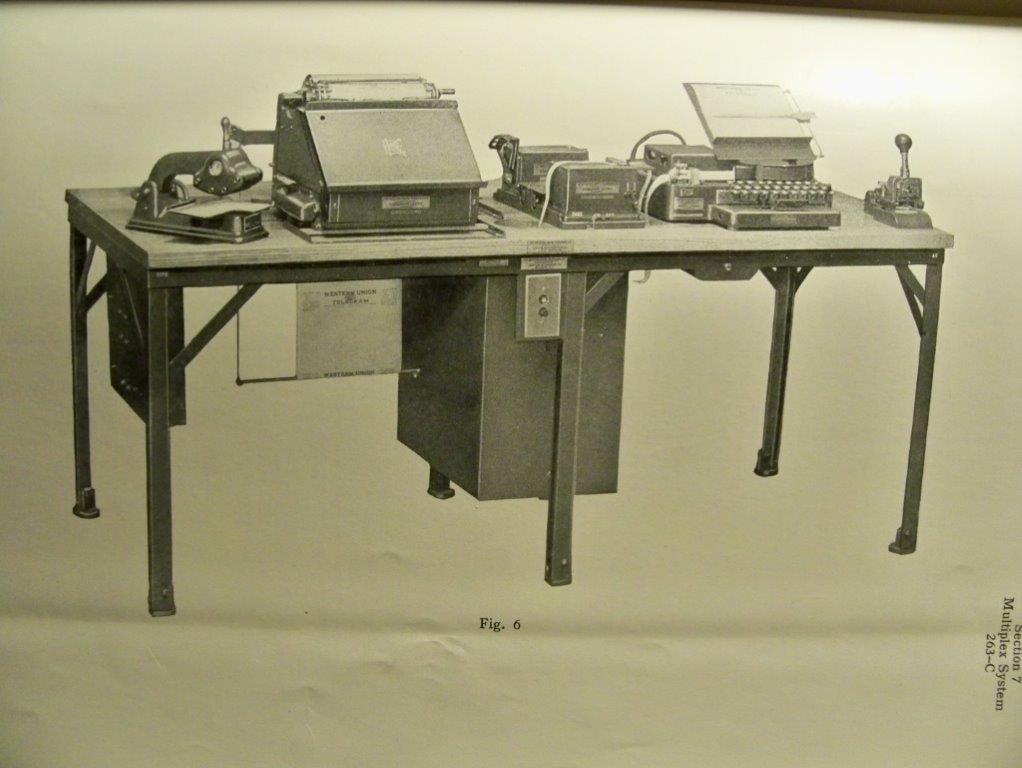

Here is another picture of a WU multiplexed operating table. (Mux
Operating Table - WU).  The perforator is a "Multiplex Perforator 2A" by
Morkrum (aka "Iron Horse"). There is a "Multiplex Transmitter 1-A" and a
"Multiplex Printer 1-A", both by Kleinschmidt Electric Co.  The box
behind the tape transmitter is a "Multiplex Automatic Control 1-A", also
by KEC; it is finger-powered and generates a FIGS-J-LTRS code
combination to ring the bell at the other end without disturbing the tape.

This came from a c1925 WU book on Multiplex Printing Telegraph Systems
with a lot of good photographs & drawings.

There are photos of a couple of printers I had never seen before - a WE
Mux Printer - WU 1A and an unidentified manufacturer Mux printer WU 5-A.
(pictures enclosed)

Have you ever seen these printers?

Have fun & 73,

Duncan


On 22-Dec-14 22:18, Jim Haynes wrote:
> That picture is pretty definitely a W.U. installation.  Almost out of
> sight in the lower left is a receiving table - you can see the printed
> narrow tape and the holder for a tape moistener.  The tape reader
> probably
> connects to a multiplex sending distributor.  To the operator's right is
> seen a Bates numbering machine - those were used through the 1950s at
> least to give each message a serial number so it could be checked at
> the receiver.  The operator's chair also looks like a W.U. model.
>
> jhhaynes at earthlink dot net
>



---
This email has been checked for viruses by Avast antivirus software.
http://www.avast.com
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Mux Operating Table - WU.jpg
Type: image/jpeg
Size: 76092 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20141223/3312be83/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

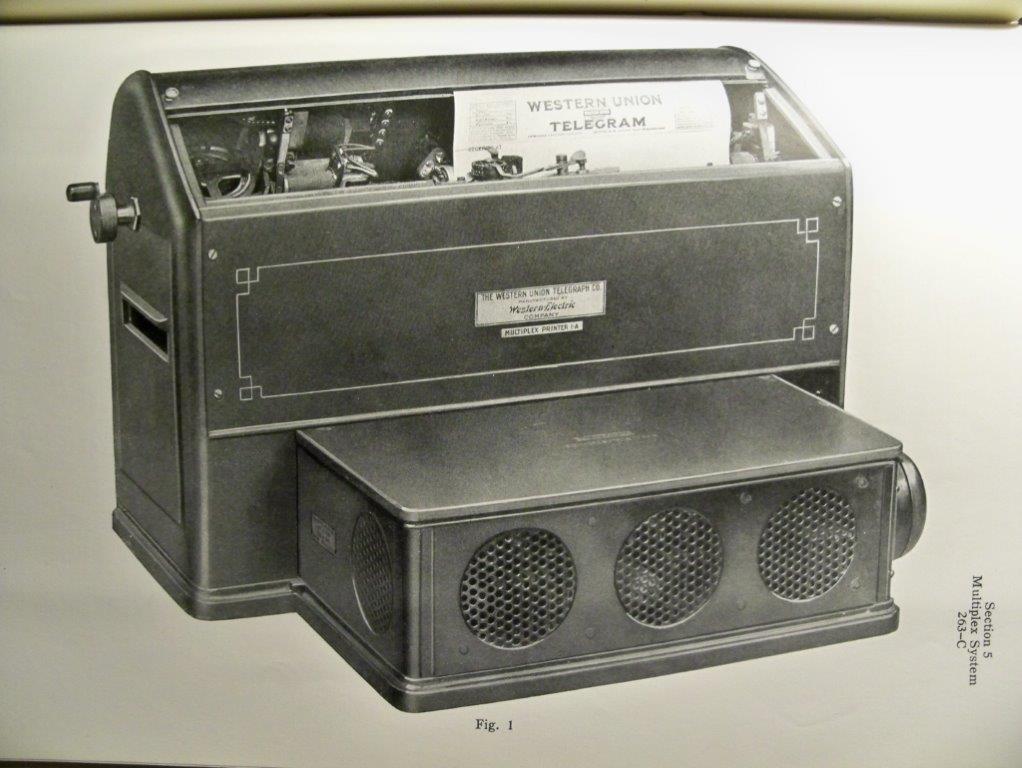

Name: WE Mux Printer -  WU 1-A.jpg
