[GreenKeys] ASR33 punch reader control line
COURYHOUSE at aol.com
COURYHOUSE at aol.com
Mon May 13 12:59:51 EDT 2013

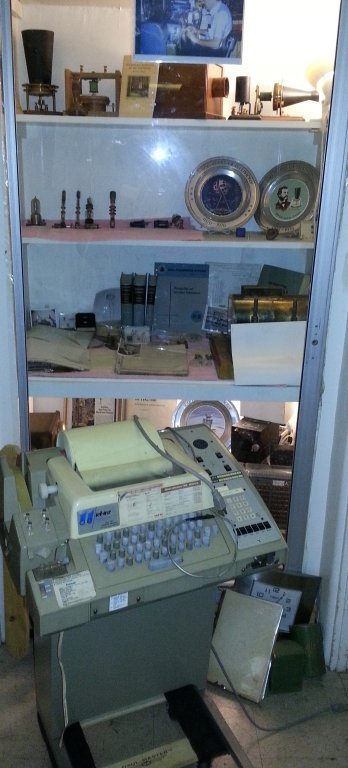

ok! shall pull the cover this week and photo!
aside form the no carriage return on the printer
seems like nice unit .. I managed to get it for 75 dollars
it came with lots of paper although 2 part.
and the kind people drove it over tot the building us. The curse of
it is the monster acoustic cover... need to find someone that wants one !
can... not... bring myself....to...throw...it... away... I guess the solve
is display it as a twx and leave the monster enclosure on it!
In a message dated 5/13/2013 7:36:42 A.M. Mountain Standard Time,
teletypeparts at aol.com writes:
Ed,
You have an after market TWX. Not sure what you will find under the touch
tone dial pad. You need to remove the whole cover and see whats inside.
It may be a regular UCC-6 but I doubt it. UCC-6 is the electronics on a
straight computer 33.
The front covers (plate) are difficult to find in good shape.
But first you need to see whats inside.
Wayne
-----Original Message-----
From: COURYHOUSE <COURYHOUSE at aol.com>
To: teletypeparts <teletypeparts at aol.com>; lester <lester at veenstras.com>;
jhhaynes <jhhaynes at earthlink.net>
Cc: greenkeys <greenkeys at mailman.qth.net>
Sent: Mon, May 13, 2013 5:07 am
Subject: Re: [GreenKeys] ASR33 punch reader control line

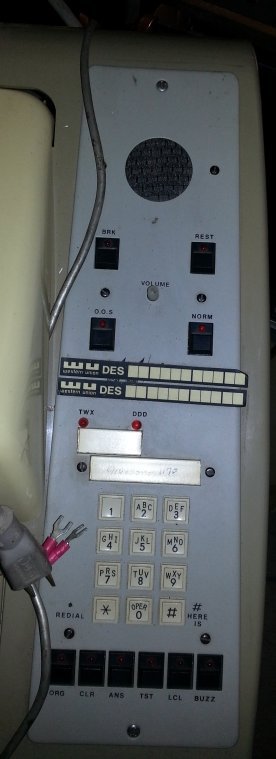

folks it says twx on modem... but also says ddd so I assume it is!?
not a telex? even though it has western union stuff on it!? runs...
keyboard a little sluggish but will not carriage return but does
line feed. ( go I guess I need a service hint for the no return) I
have not even popped the case yet.
what is the interface between the modem and the tty? current loop or!?
I need to find the metal trim strip and a knob for the front of the
beast.
all the years of working with these in the old times i never had any
twx. or telex ones... they all came off computers...
we have 3 rooms of new displays... so the maint.on machine stuff
is stacking up! have this one the 28 stuck keyboard and the other
28 that linefeeds all the time! argh!
thanks for any and all elp guys
ed#
In a message dated 5/12/2013 12:54:00 P.M. Mountain Standard Time, _te
letypeparts at aol.com_ (mailto:teletypeparts at aol.com) writes:
Later model TWX would be converted to ASCII 33 with a UCC-6, some cover
parts and a tape reader solonoid in the printer change. TWX soloid is 48
VAC. Needs 120 VAC or you will get smoke.
Wayne
-----Original Message-----
From: Lester Veenstra <_lester at veenstras.com_ (mailto:lester at veenstras.com)
>
To: 'Jim Haynes' <_jhhaynes at earthlink.net_ (mailto:jhhaynes at earthlink.net)
>; 'Teletypeparts' <_teletypeparts at aol.com_ (mailto:teletypeparts at aol.com)
>
Cc: greenkeys <_greenkeys at mailman.qth.net_
(mailto:greenkeys at mailman.qth.net) >
Sent: Sun, May 12, 2013 12:36 pm
Subject: RE: [GreenKeys] ASR33 punch reader control line
Well you can convert a TWX to Baudot so they are not that worthless HI
Lester B Veenstra MØYCM K1YCM W8YCM
_lester at veenstras.com_ (mailto:lester at veenstras.com)
US Postal Address:
5 Shrine Club Drive
HC84 Box 89C
Keyser WV 26726
GPS: 39.33675 N 78.9823527 W (Google)
GPS: 39.33682 N 78.9023741 W (GPSDO)
Telephones:
Home: +1-304-289-6057
US cell +1-304-790-9192
UK cell +44-(0)7849-248-749
Guam Cell: +1-671-929-8141
Jamaica: +1-876-456-8898
This e-mail and any documents attached hereto contain confidential or
privileged information. The information is intended to be for use only by
the
individual or entity to whom they are addressed. If you are not the
intended
recipient or the person responsible for delivering the e-mail to the
intended
recipient, be aware that any disclosure, copying, distribution or use of
the
contents of this e-mail or any documents attached hereto is prohibited.
-----Original Message-----
From: Jim Haynes [_mailto:jhhaynes at earthlink.net_
(mailto:jhhaynes at earthlink.net?) ]
Sent: Thursday, May 09, 2013 12:16 AM
To: Teletypeparts
Cc: _lester at veenstras.com_ (mailto:lester at veenstras.com) ;
_greenkeys at mailman.qth.net_ (mailto:greenkeys at mailman.qth.net)
Subject: Re: [GreenKeys] ASR33 punch reader control line
On Wed, 8 May 2013, Teletypeparts wrote:
> Lester,
>
> You are correct. Normally the 33 ASR tape reader works in Line mode
> the same as Local mode. I have been removing the DEC reader control
> card for most all of my restored 33's until recently when quite a few
> people were asking for that option.
Yeah, when you find a 33 ASR on ebay, if it has the DEC computer mod
installed,
those go for big bucks to people who are trying to restore old DEC
computers.
The TWX models, on the other hand, are almost worthless in terms of $.
