[Elecraft] [KPOD] Re: Now that the K-Pod is shipping, (longer RJ12 cable)

[Joe Stone (KF5WBO)]

As I mentioned in an earlier post, the K3 / K3s "J3" connector leveraged by
the K-Pod was originally
intended to serve as a MPLAB ICD 2 (In-Circuit Debugger),

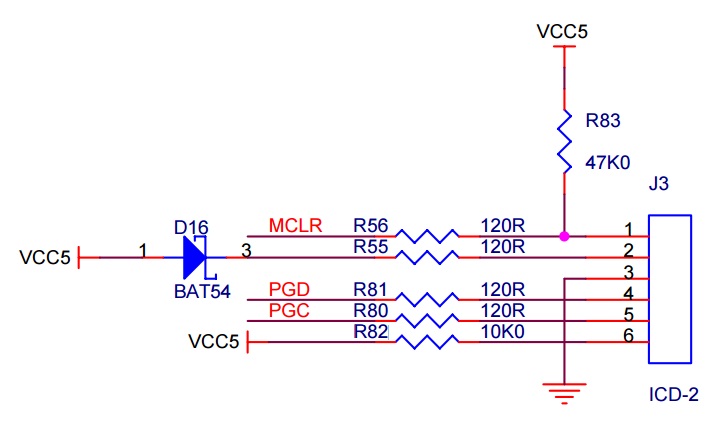

    http://wickedstone.com/KF5WBO/ICD-2%20Schematic.jpg

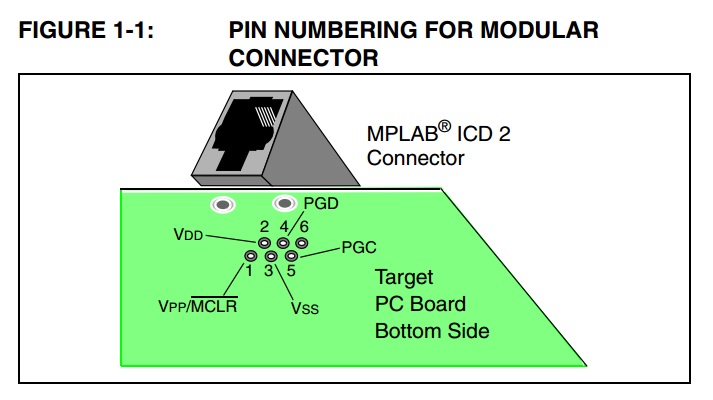

    http://wickedstone.com/KF5WBO/MPLAB%20ICD%202.jpg
    http://ww1.microchip.com/downloads/en/devicedoc/51331b.pdf

73's

Joe Stone
KF5WBO



--
