[CW] K2TQN: My new Mobile CW setup

[D.J.J. Ring, Jr.]

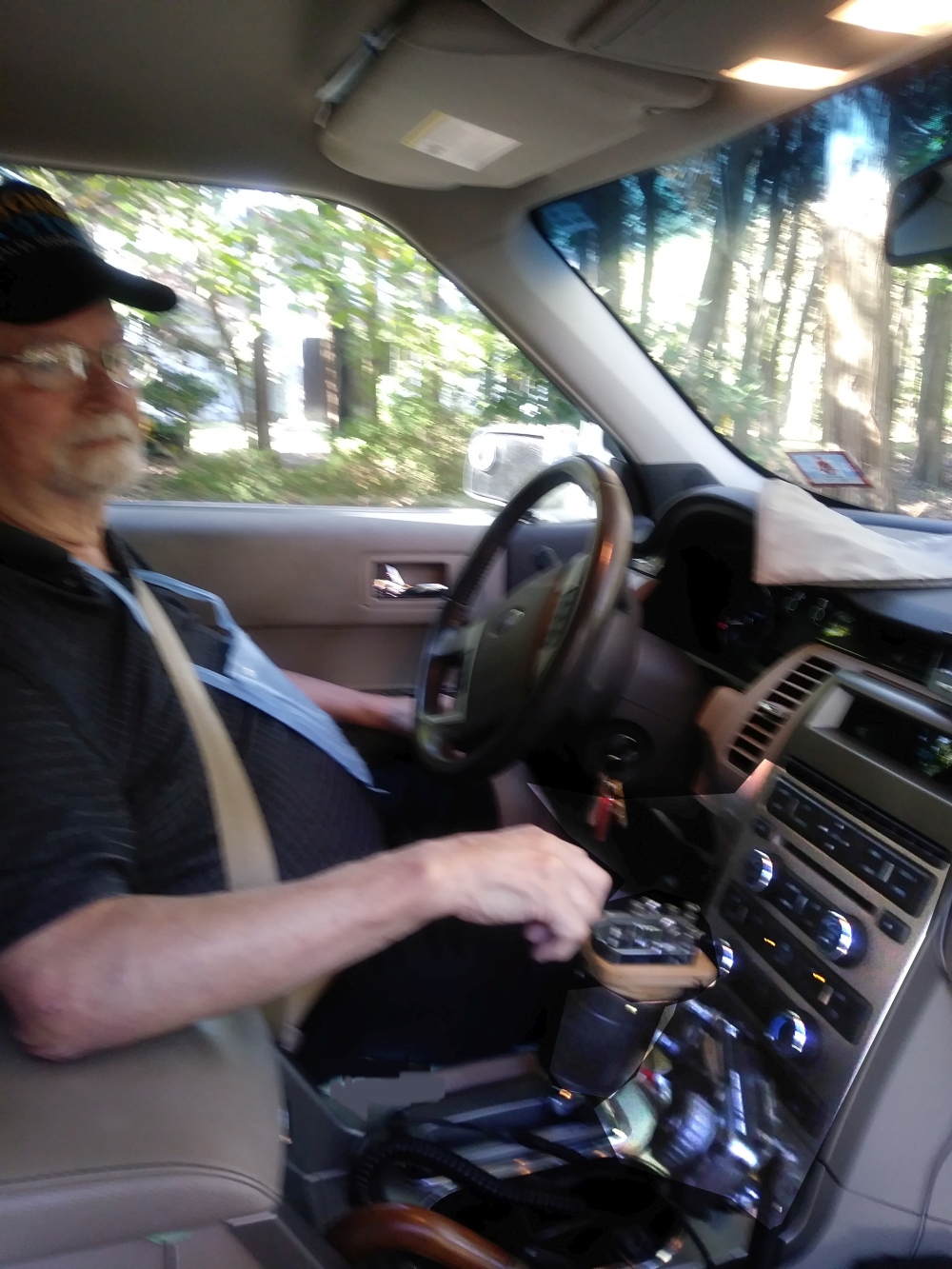

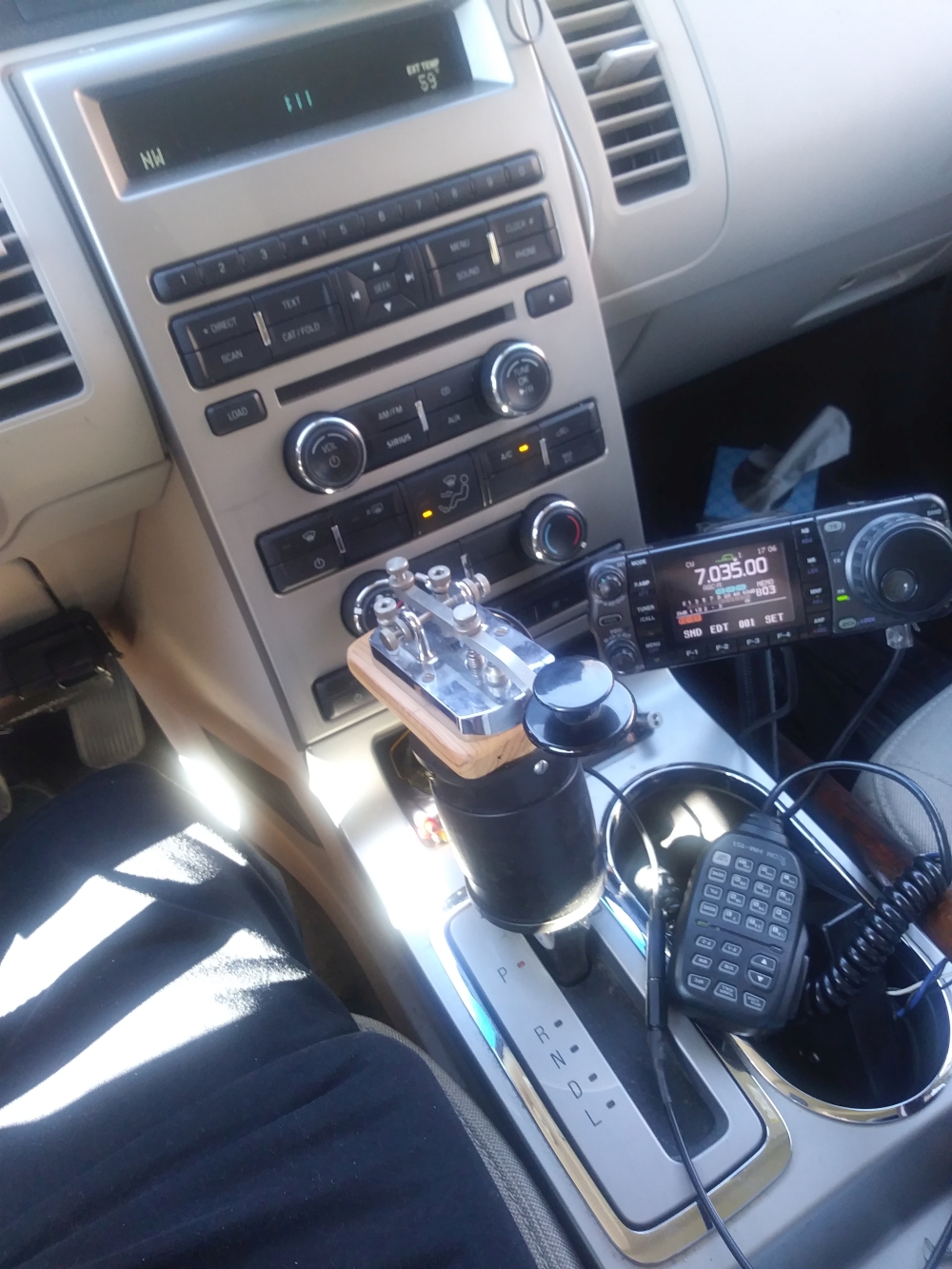

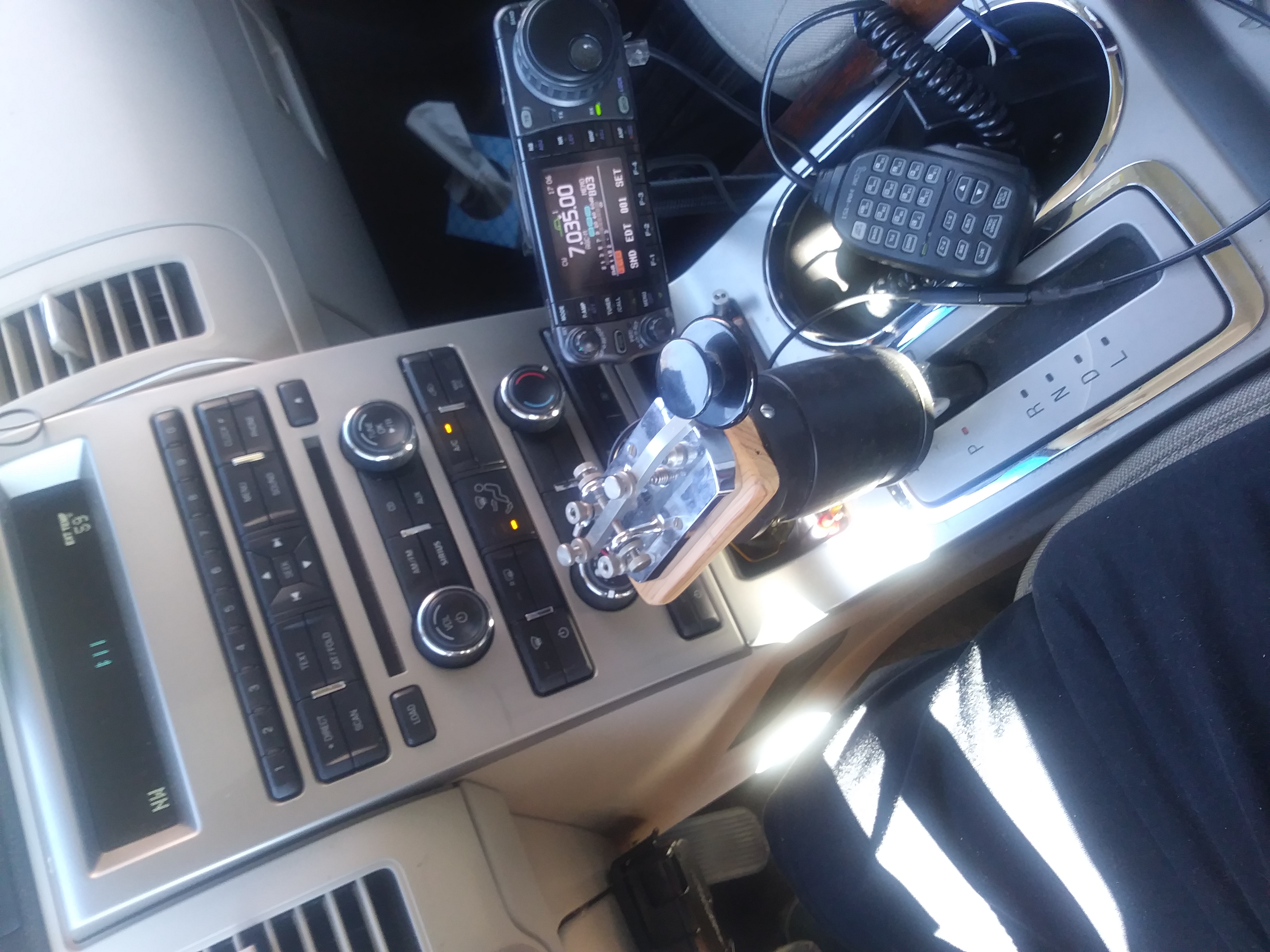

4 photos show --  Key fits very good on the gear shifter while in "Park".

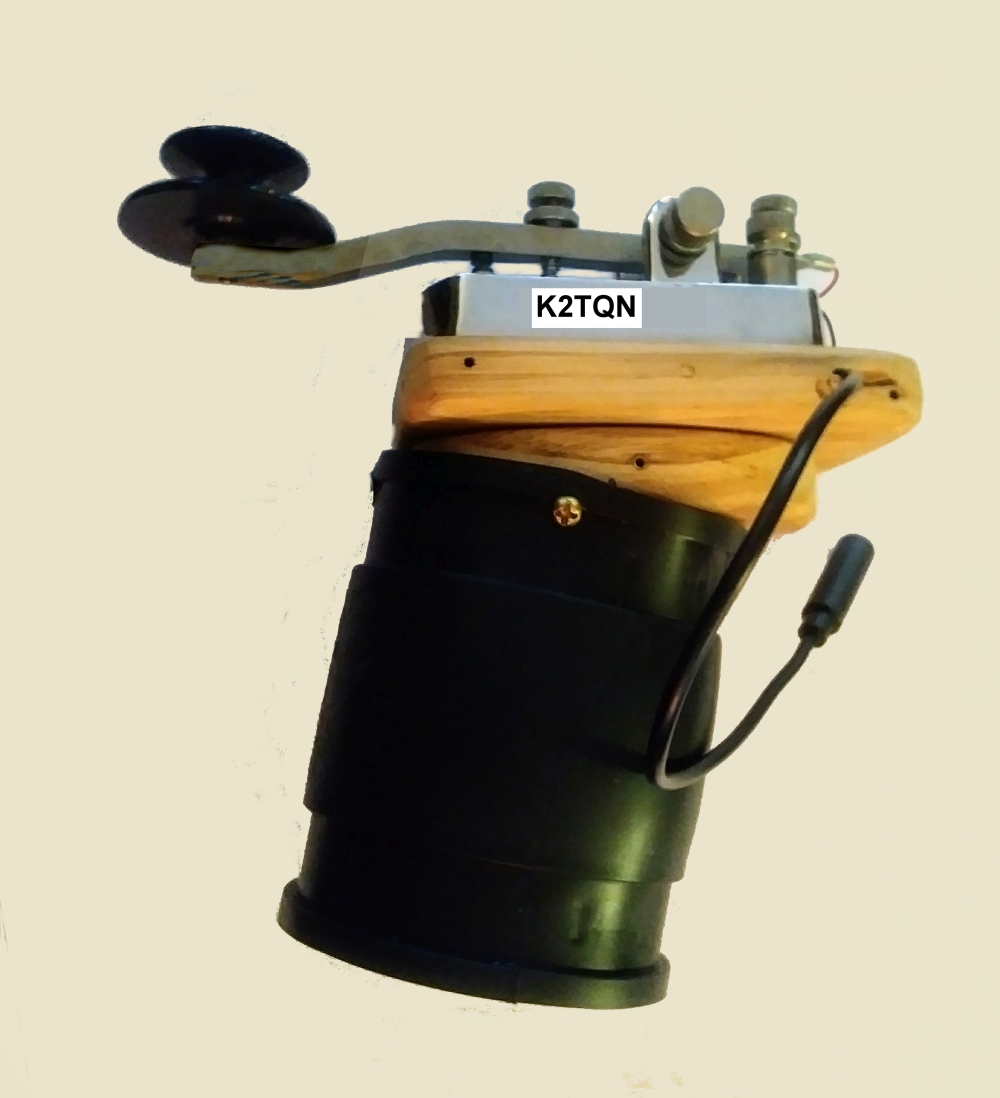

Boot is a 2-1/2" rubber plumbing fitting. Wood pieces mate the key to the
boot and correct the angle so key is nearly level. While sitting in the
drivers seat my elbow rests on the center console and hand is in the proper
position for keying.
(Formula for boot size is - measure around the widest part of the shifter
and divide by 3.14. Mine equaled 2.5 inches which is the inside diameter of
the plumbing boot, a standard size.)

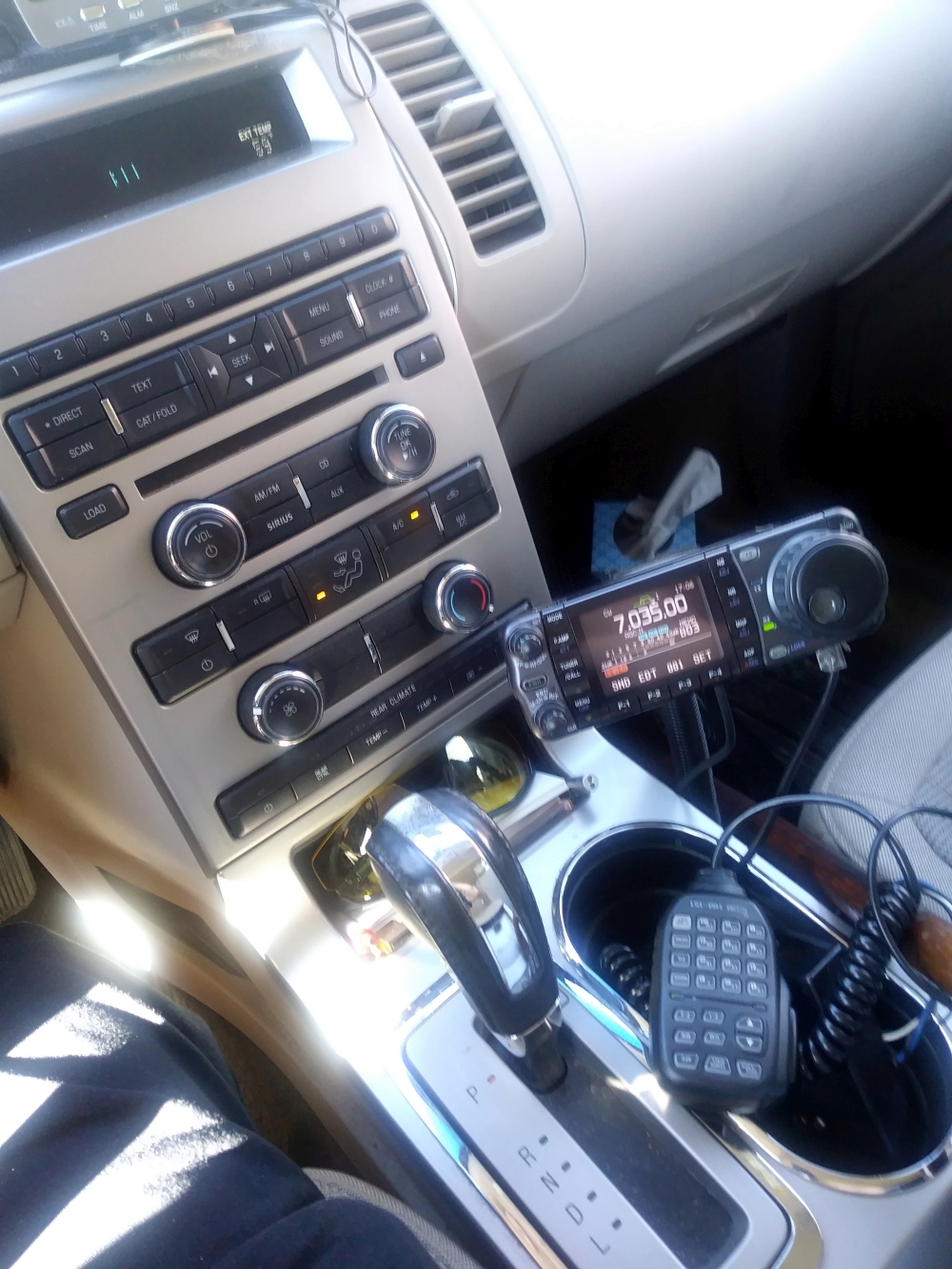

PDF file shows the 2011 mobile installation, prior to todays CW key.

Everything works, but have not tried to contact anyone on CW yet.  Soon.

*73, John Dilks, K2TQN*





*Web Site - www.k2tqn.net <http://www.k2tqn.net>__ Retired -  writing for
Electric Radio Magazine_____ Former Editor Vintage Radio Column, QST
Magazine 2000-2014________ Having fun smelling hot rosin and solder again*
