[ARC5] IN-88 Insulators...

[Paul Thekan]

Thanks Mike for posting the pic of the insulator and dimensions.
 It confirmed the info I sent to Craig along with a pic of mine  that it is
a IN 88

Would never have known otherwise for sure

Paul
N6FEG


On Sun, Oct 13, 2024, 9:20 AM Michael Hanz <aaf-radio-1 at aafradio.org> wrote:

> On 10/12/2024 2:37 PM, Craig Cantwell via ARC5 wrote:
>
> Anyone in the group have an IN-88 that they can measure for me or have
> something that gives dimensions? I need 4 of them for the Fairchild, but so
> far, haven't been able to locate but two of them and they are quite pricey.
> I've found what appears to be a commercial version of it, but I want to be
> sure on the dimensions before ordering. I can get the 4 I need if these are
> close enough, for less than 1 of the known ones.
>
> Craig
>
>
> Hi Craig,
>

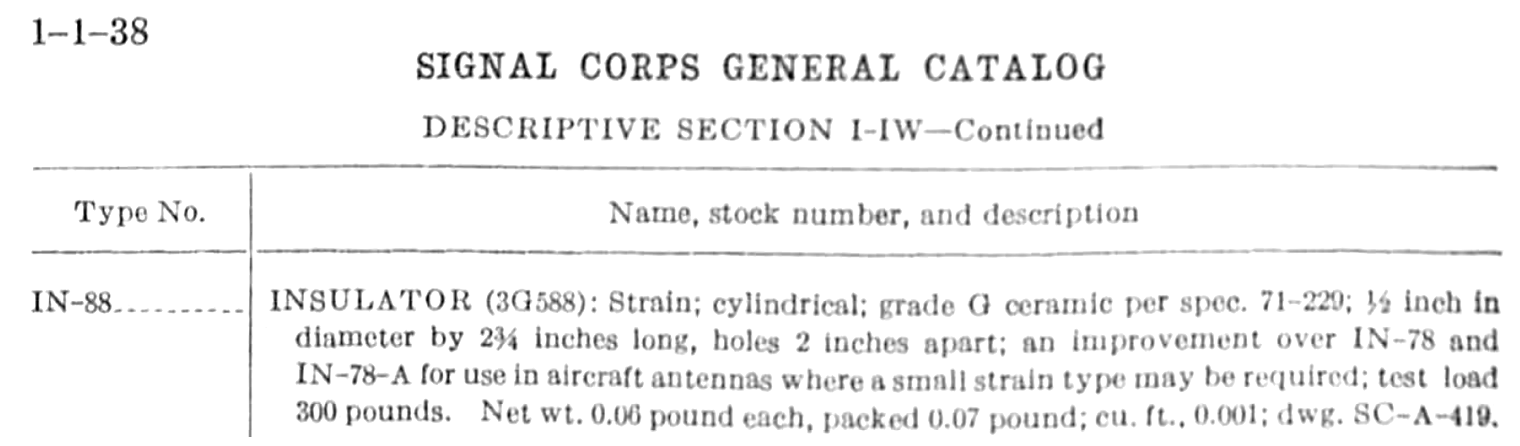

> Here's the official description in the Signal Corps General Catalog:
>
>
> But this insulator style was made by the millions by a variety of
> companies for aircraft use.  Most are usually unmarked or stamped with ink

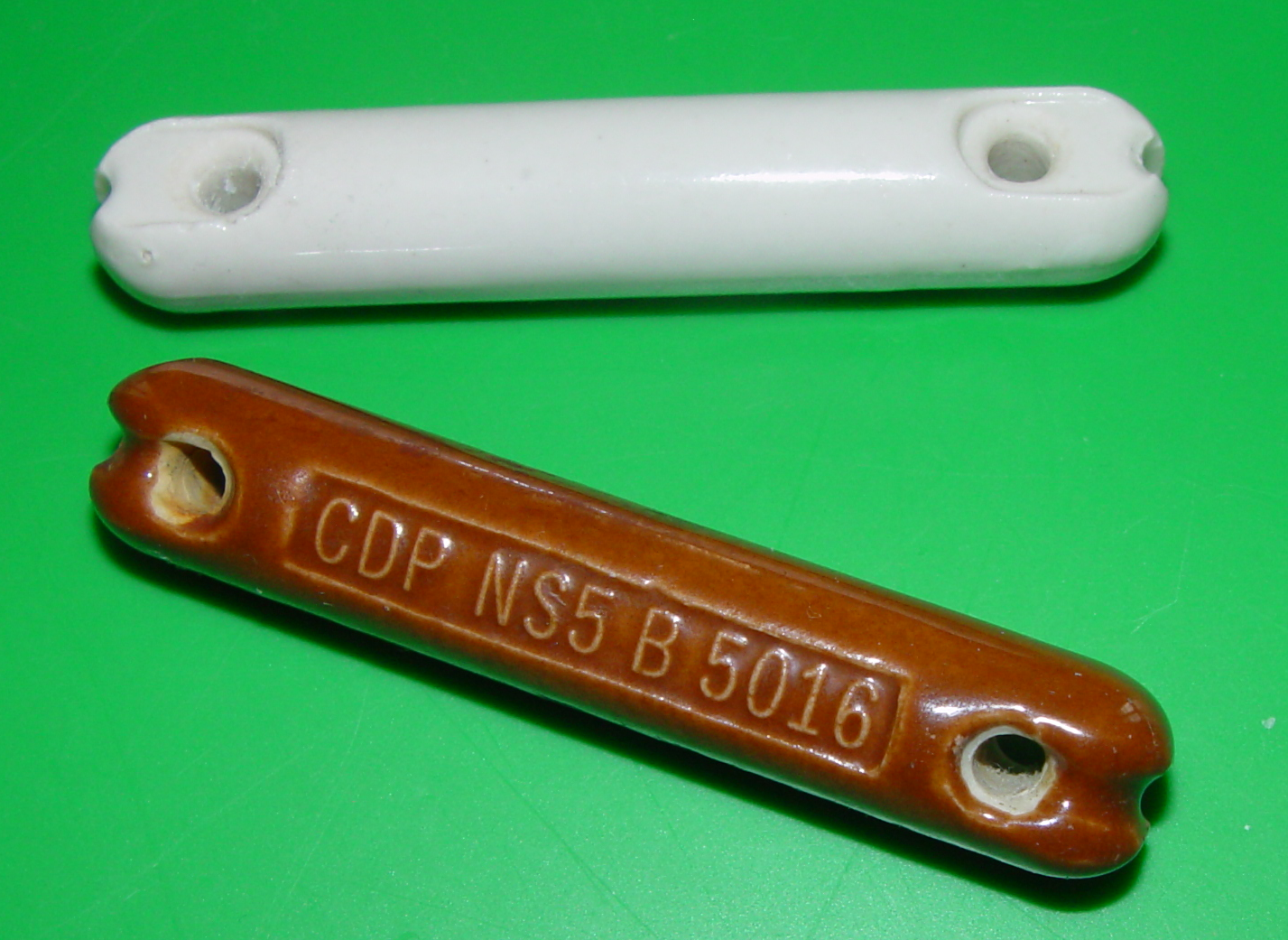

> long gone, though there are exceptions.  Here are a couple of examples that
> meet the specifications above:
>
>
>
> 73,
> -Mike  KC4TOS
>
>
>
