[ARC5] IN-88 Insulators...

[Michael Hanz]

On 10/12/2024 2:37 PM, Craig Cantwell via ARC5 wrote:
> Anyone in the group have an IN-88 that they can measure for me or have
> something that gives dimensions? I need 4 of them for the Fairchild,
> but so far, haven't been able to locate but two of them and they are
> quite pricey. I've found what appears to be a commercial version of
> it, but I want to be sure on the dimensions before ordering. I can get
> the 4 I need if these are close enough, for less than 1 of the known ones.
>
> Craig

Hi Craig,

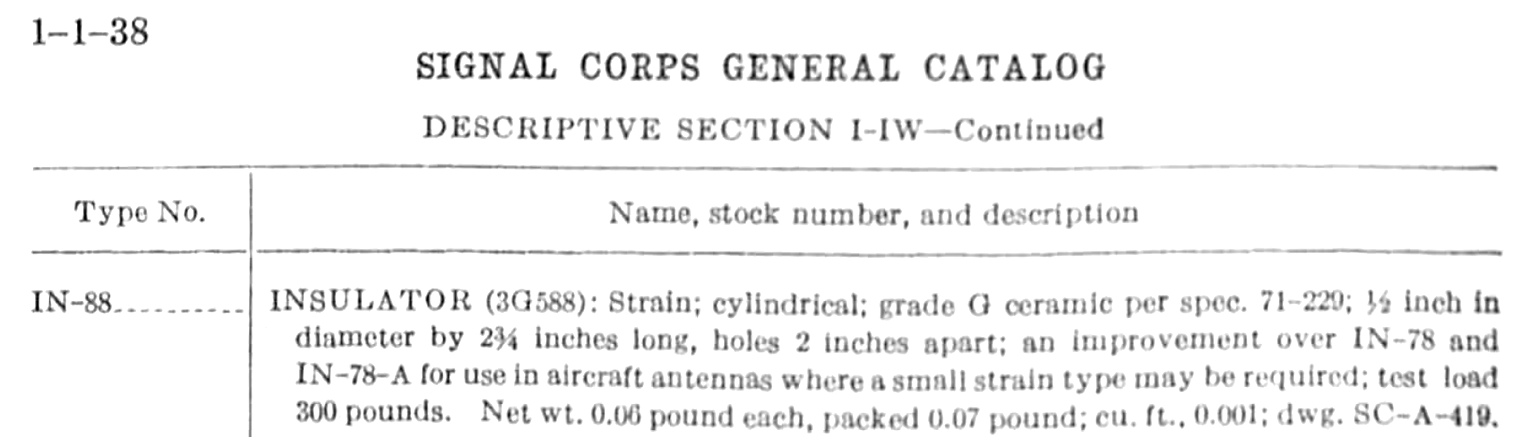

Here's the official description in the Signal Corps General Catalog:


But this insulator style was made by the millions by a variety of
companies for aircraft use.  Most are usually unmarked or stamped with

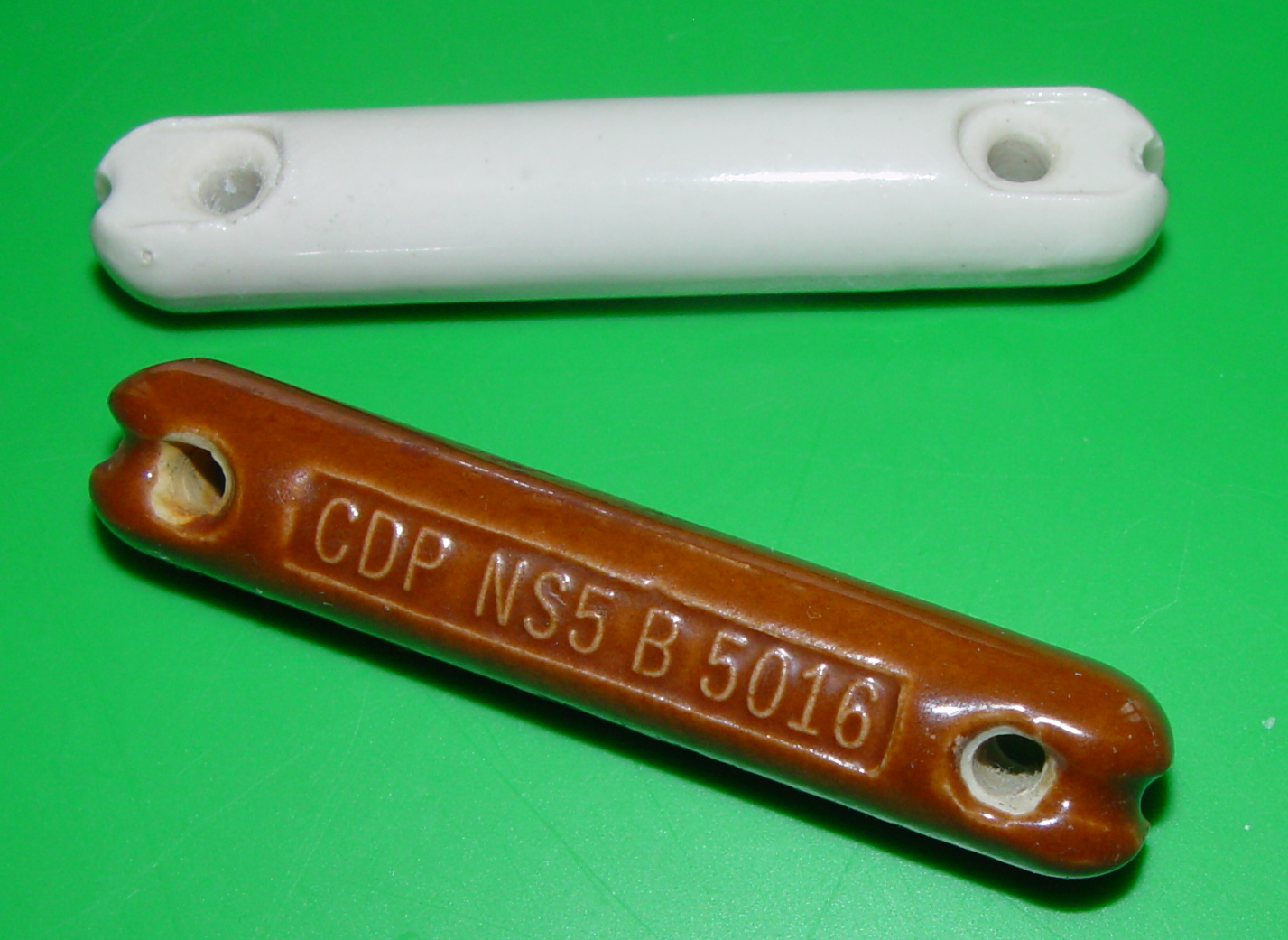

ink long gone, though there are exceptions.  Here are a couple of
examples that meet the specifications above:



73,
-Mike  KC4TOS
