[ARC5] RCA AVA-120 AVA Fairlead

[Michael Hanz]

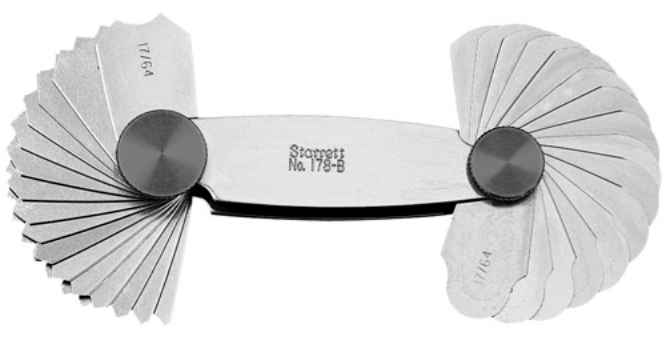

With a radius gauge set:


But looking at your measurements, it would seem pretty close if a radius
of .125" was used.  (They weren't using millimeters back when they made
those things.)   Take a 1/4" drill and compare the outside curvature to
the fairlead OD - that should give you a decent comparison.  On the
inner hole radius, I'd guess .093" off hand. The whole fairlead is only
3/4" in diameter.

It might be useful to have the bore diameter of the long sleeve as well,
just to be authentic.  The screw is a 10-24 thread?  Is the material
plated steel or plated brass?  It's hard to tell.

Looks like a short job - radius form tool in the lathe (I just use one
flute of a corner rounding end mill in the lathe.)

Have a happy Saturday,
  - Mike  KC4TOS

On 8/8/2020 12:06 PM, David Stinson wrote:
>

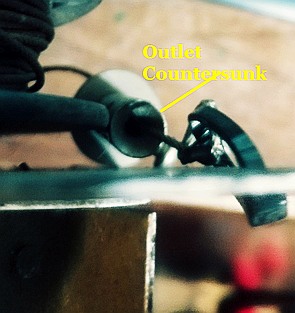

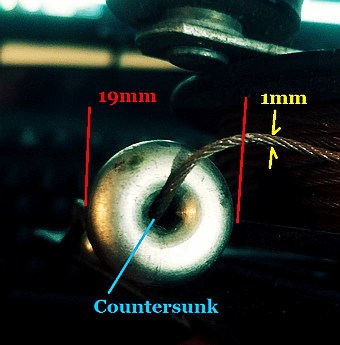

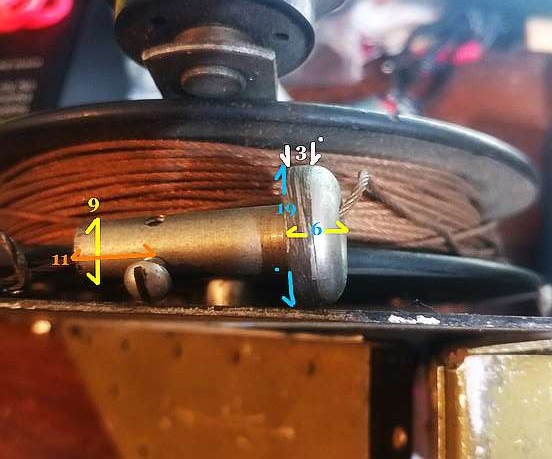

> For those working on an RCA AVA-120 antenna reel,
> here's the original outlet fitting for the fairlead tube
> with some measurements in mm.  I don't know how
> to measure the curve that starts 3mm up from the
> flat side of the inlet end and curves for the remaining
> 3mm to the countersunk hole, but I bet
> Mike Hanz knows.
> Sorry the files are small and hard to read.
> The list restricts photos to tiny files.
>
> GL OM DE Dave AB5S
>
