[ARC5] RCA AVA-120 AVA Fairlead

[David Stinson]

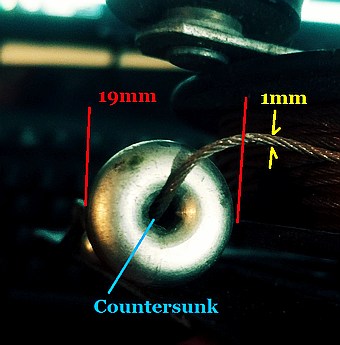

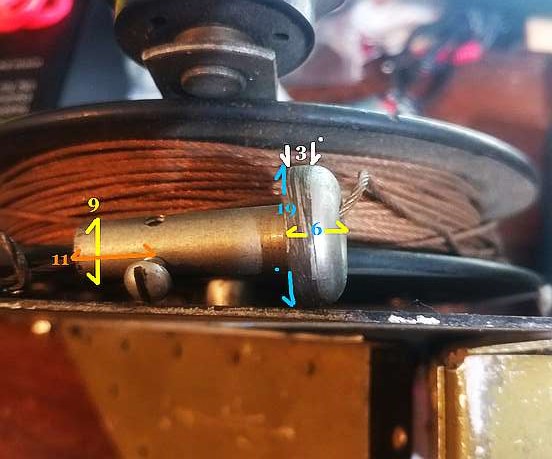

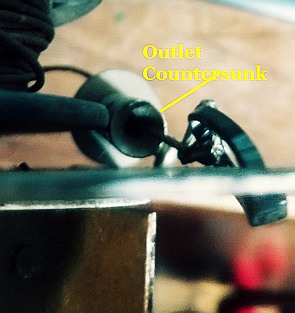

For those working on an RCA AVA-120 antenna reel,
here's the original outlet fitting for the fairlead tube
with some measurements in mm.  I don't know how
to measure the curve that starts 3mm up from the
flat side of the inlet end and curves for the remaining
3mm to the countersunk hole, but I bet
Mike Hanz knows.
Sorry the files are small and hard to read.
The list restricts photos to tiny files.

GL OM DE Dave AB5S



--
