[ARC5] 3-48 screws

[Michael Hanz]

I was with you all the way until the last sentence, Ken, but not because
I'm feeling argumentative.  Ronnie was specifically looking for screws

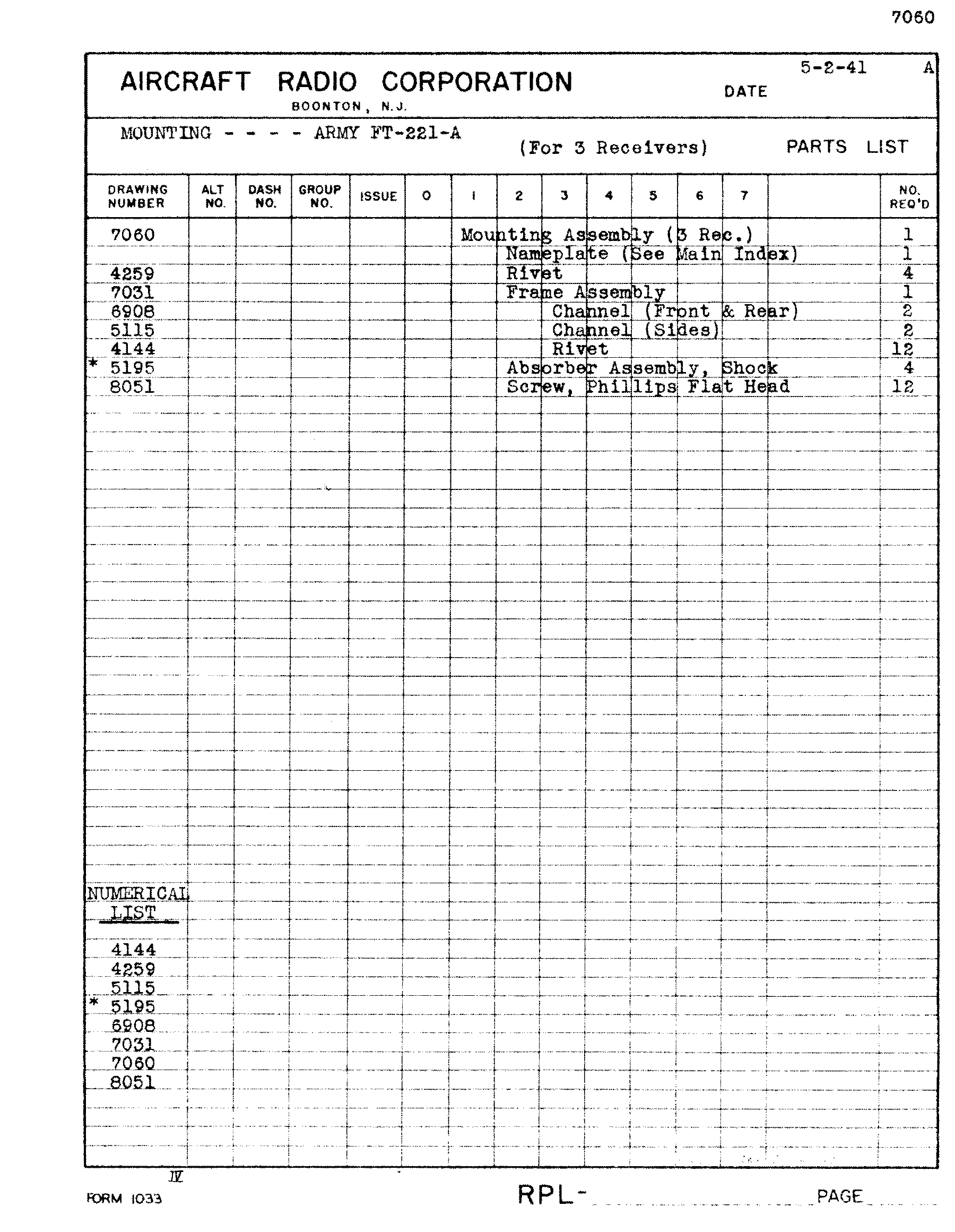

to hold the four Lord shocks on the mount.  Attached is the build sheet
for one of the 274-N mounts just for example, and all  of the sheets
specify a Phillips head screw for some reason. Must be one of those
mysteries of science.

On a related subject, I haven't had good luck with the fit and finish of
the Ebay 3-48 stainless screws compared with the ones from
McMaster-Carr.  They don't tolerate "oops slips" very well either, so I
stopped using that source almost as soon as I tried them.  But I guess
"ya pays yer money and ya takes yer cherce"...

  - Mike  KC4TOS

On 12/15/2018 12:16 PM, Kenneth G. Gordon wrote:
> Seems like we go through this discussion at least once a year.
>
> The original screws were 3-48 BINDER HEAD, slotted, brass, cadmium-plated.
>
> For the receivers, there were at least 4 different lengths. I never investigated those used in
> the transmitters.
>
> For many years, I have used ONLY 3-48 binder-head, slotted, stainless steel screws. I buy
> them in quantity from either McMaster-Carr or from Fastenal.
>
> The SS screws look most like the original ones. I paint the heads of those which would be
> black with flat-black model paint once they are installed.
>
> I also buy #3 internal-toothed stainless steel lock washers, and hex nuts, from the same
> sources.
>
> I will not use Phillips head hardware. IMHO it looks trashy and most certainly does not look
> original. The heads are all wrong for one thing.
>
> Ken W7EKB

-------------- next part --------------
A non-text attachment was scrubbed...
Name: FT-221-A build sheet.png
Type: image/png
Size: 98536 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181215/0cdc92b6/attachment-0001.png>
