 Hi Members of TVARC's MailList (especially those interested in digital
interfacing their ICOM IC-706MKIIG with WSJT-X using a SignaLinkUSB),

My thanks to those of you who graciously responded with hints, tips and
insights to help me solve my recent digital dilemma.  The input from Cal
(WA3CTZ), John (NP2B), George (K2DM), Dennis (N0SMX) were helpful and
greatly appreciated.  The suggested settings from Hal (W4OE) RESOLVED my
problem. I am happy to report that Hal's settings got my vintage ICOM
IC-706MKIIG successfully working with the SignaLinkUSB and WSJT-X!
YIPPEE!!! 😀

It's one of the real benefits and outstanding characteristics of our
amateur radio club that so many of TVARC's members are willing to help
others resolve their ham related problems.

In case others need to get their IC-706 rigs working with the SignaLink
hardware and WSJT-X software, I've provided an overview below of my

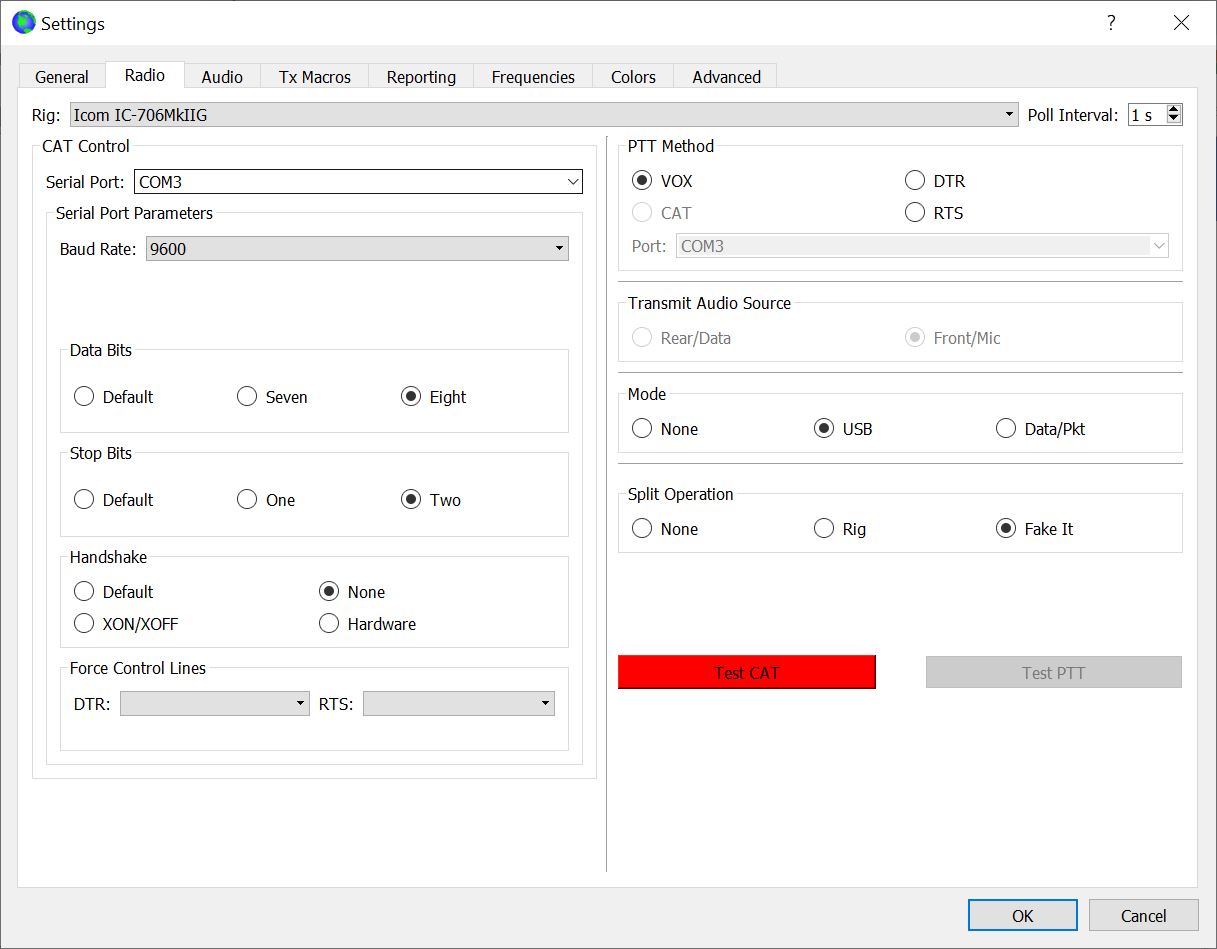

configuration.  In addition, I've attached a screen shot from WSJT-X
showing the settings (under the "Radio" tab) that worked for my
configuration (again, thanks to Hal/W4OE). [In this attached screenshot,
IGNORE the red-colored "Test CAT" button.  It's red because I took this
screen capture without having the IC-706 turned on; so, of course, WSJT-X
could not talk to it via CAT (hence the red colored button).]

*My configuration (simplified view):*

*Digital Data Modulation Path:*
IC-706MKIIG (ACC
13-pin)<=Tigertronics-radio-specific-cable=>SignaLinkUSB<=>Serial-to-USB-adapter-cable<=>Desktop
PC (Windows 10, WSJT v2)

*Rig Control (CIV) Path:*
IC-706MKIIG (CIV remote jack)<=>ICOM CT-17
(CIV)<=>Serial-to-USB-adapter-cable<=>Desktop PC (Windows 10, WSJT v2)

*WSJT-X Settings:*

WSJT-X > File > Settings:
Rig: Icom IC-706MKIIG
Poll Interval: 1s
CAT Control:
Serial Port: COM3
Serial Port Parameters:
Baud Rate: 9600
Data Bits: Eight
Stop Bits: Two
Handshake: None
Force Control Lines:
DTR: [blank]
RTS: [blank]

PTT Method: VOX
Port: [greyed-out (with "COM3 in a ghostly font)]
Transmit Audio Source [all greyed-out]:
_-Rear/Data       x-Front/Mic [again, both of these selections are
greyed-out in a ghostly font]
Mode:
_-None     *X-USB*     _-Data/Pkt
Split Operation:
_-None     _-Rig       *X-Fake It*


Here's the proof of the pudding --- my first FT8 QSO using WSJT-X and my
vintage ICOM IC-706MKIIG with a SignaLinkUSB:

034700 1 0.1 2599 ~ CQ KK5JY EM16

034730 3 0.1 2598 ~ K4JOM W3CVD FM19

034745 Tx 2599 ~ KK5JY K4QR EL98

034800 -1 0.1 2597 ~ K4QR KK5JY -07

034815 Tx 2599 ~ KK5JY K4QR R-01

034830 1 0.1 2597 ~ K4QR KK5JY RR73

034845 Tx 2599 ~ KK5JY K4QR 73


73,

Tony/K4QR
TVARC Member
