[R-390] Greetings extended

Thu Jun 13 16:43:38 EDT 2024

Thank you Larry, Prior picture of the one receiver front panel. This unit needs additional parts and work to make it operational.  Scope TBD.In retrospect I should have taken a picture of the panel as received, when old paint was stripped, another following the 600 grit sanding, another closeup of removing all the old filled in engraving, another showing residual AL chromate treatment, and finally a closeup of the post lettering of engraved panel,.  All very easy to perform with a current mobile phone.

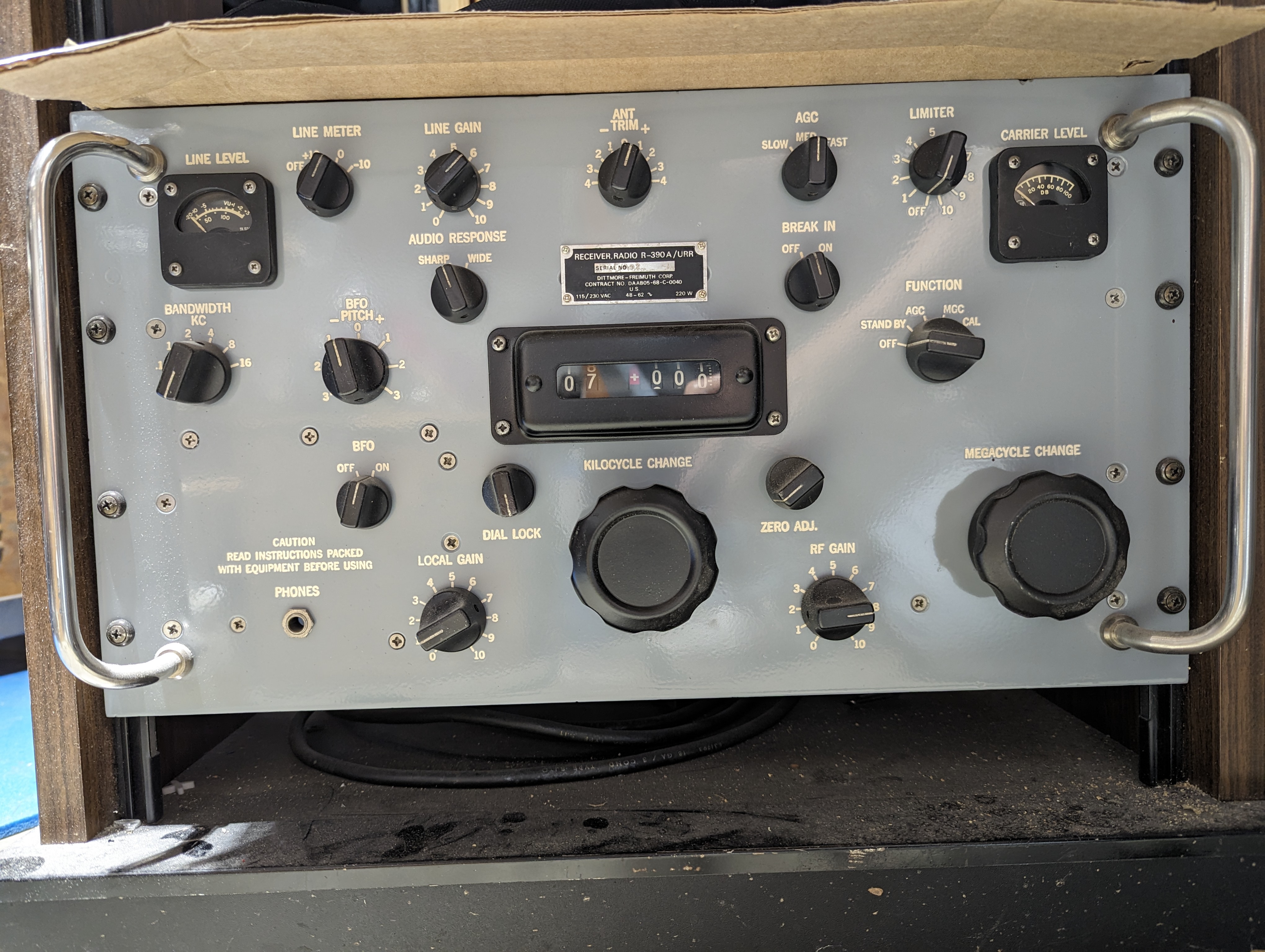

However this is the receiver aluminum front panel following the powder coating (fused cross-link) polyester. And the filled in lettering. The coating was performed locally in exchange for me fixing a guitar tube amplifier. Sometimes this tube knowledge helps.... grin
I will read up on the newbie document.Thanks again

Sent from AOL on Android

  On Thu, Jun 13, 2024 at 16:38, jkharvie<jkharvie at verizon.net> wrote:
Picture of the powder coat panel face.

Sent from AOL on Android

  On Thu, Jun 13, 2024 at 16:35, jkharvie via R-390<r-390 at mailman.qth.net> wrote:   I understand your pain.  Tough lesson to learn.  I would not recommend that route as well.The white marine epoxy 24 hour cure might make a good lettering infill.
John_N3JKE
Sent from AOL on Android

  On Thu, Jun 13, 2024 at 14:21, Barry<n4buq at knology.net> wrote:  John,

I went down the powder-coating road once and really regretted it.  The place I used didn't do a very good job and the engravings were filled in way too much.  I ended up getting it removed (which was rough on the panel).  I managed to get one to work "okay" and I think I ended up filling in the engravings on the other one with JBWeld, painting it, and had it silk-screened.  Sad.

Barry - N4BUQ

> Hello Barry,Thanks,  it has been a while....my holiday was 19 years.  Regarding
> paint formulations.  Black and gold paint can be used to generate a very
> respectable outcome, I used an eye dropped to adjust the quantity of gold to
> black ratio.  I also tried a gray powder coat, worked,  but the application was
> a few thousands of an inch in excess and had started to fill in some of the
> relief engraving in the front panel.  I filled in the white lettering with
>   white Engravocolor Stick (great stuff). The outcome looks pretty good
> considering the starting point....  Does this list server now support enclosure
> of pictures, if not I can send a link.John
>
> Sent from AOL on Android
>
>  On Thu, Jun 13, 2024 at 11:54, Barry Scott<72volkswagon at gmail.com> wrote:  Hi
>  John,
> Welcome back.  I just started back on my R390 restoration I started about two
> years ago.  I painted the front panel with some not-so-great Rustoleum which
> never hardened properly.  I think it was a new formulation because I've had
> very good results with Rustoleum in a rattle can before and this was a new
> style can.  Hopefully I can get a new can of the old-style and try again.  Fun
> stuff.
> Thanks,Barry
>
> On Thu, Jun 13, 2024 at 10:06 AM jkharvie via R-390 <r-390 at mailman.qth.net>
> wrote:
>
> To all those who may remember me from the late 80's and early 90's when I was
> younger, I extend a "Warm Hello", and good to be back.
> I have returned to my bench of R390A and related receiver restoration.
> Looking forward to our conversations.
> John
>
> Sent from AOL on Android
