[R-390] Question About the 20 Pin male bulkhead on the IF deck

[Jacques Fortin]

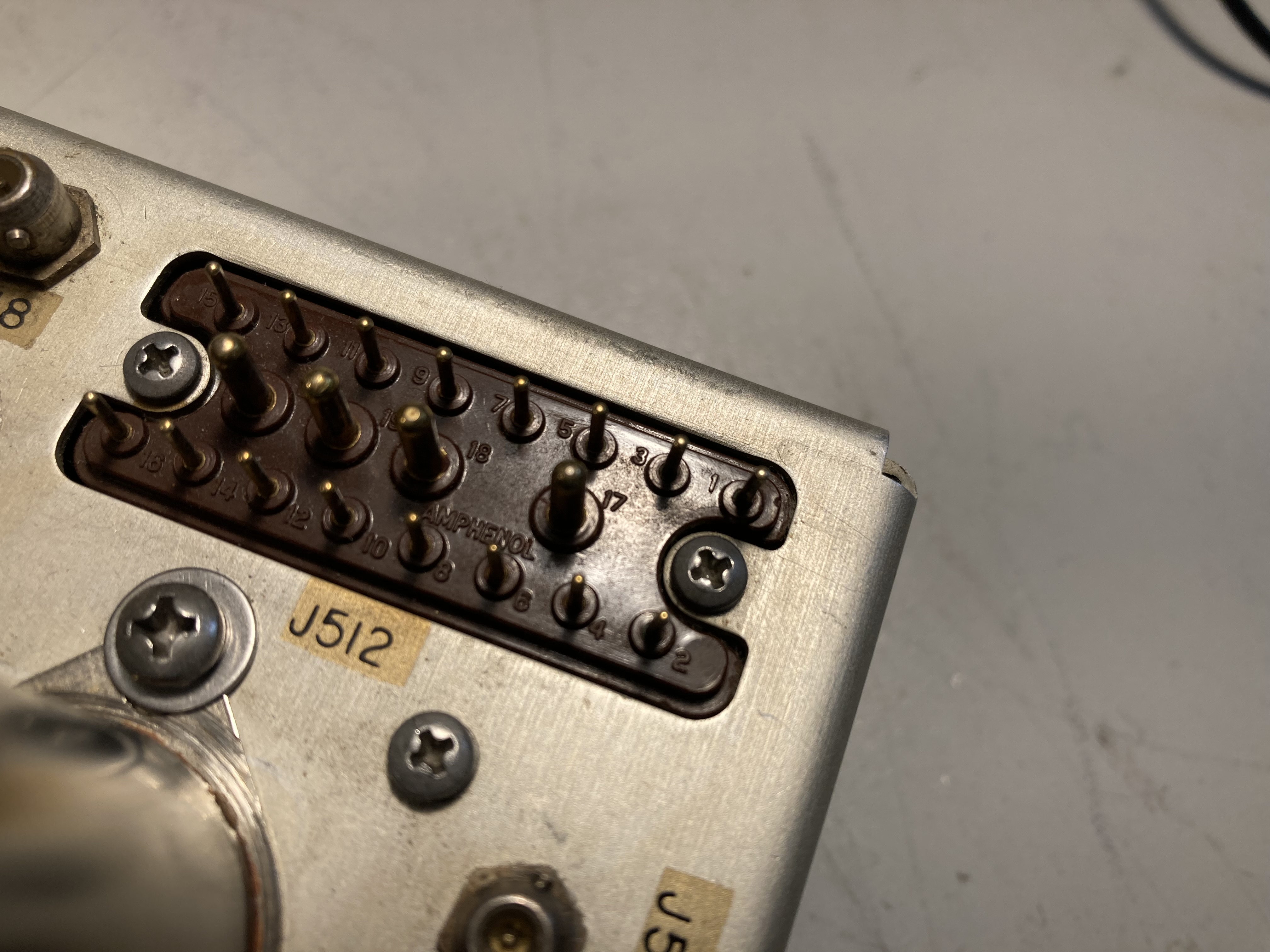

See attached !

73, Jacques, VE2JFE

-----Message d'origine-----
De : r-390-bounces at mailman.qth.net <r-390-bounces at mailman.qth.net> De la part de Doug Hensley
Envoyé : 8 juillet 2021 11:07
À : Jacques Fortin <jacques.f at videotron.ca>
Cc : Collins R-390 HF Receiver List <r-390 at mailman.qth.net>
Objet : Re: [R-390] Question About the 20 Pin male bulkhead on the IF deck

Barry, I think you are RIGHT.  I do this kind of detail work so seldom my eyes stay dizzy.

The schematic is showing the wiring I think from the underside or solder side.  If that is true, and I don't have the IF deck in front of me, then the bent pin is not used.   I'll examine this in a little while and let everyone know.

A list member earlier suggested this but I was so determined to find the worse solution that I forgot the diagram and the connector pins might be on reverse sides.

QRX
