[R-390] Filter Repair

[quartz55]

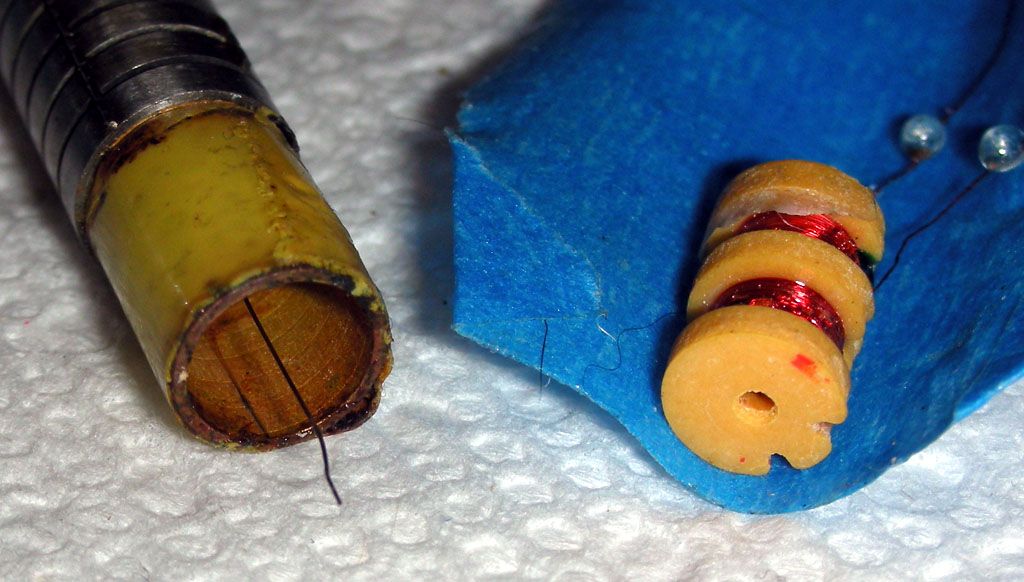

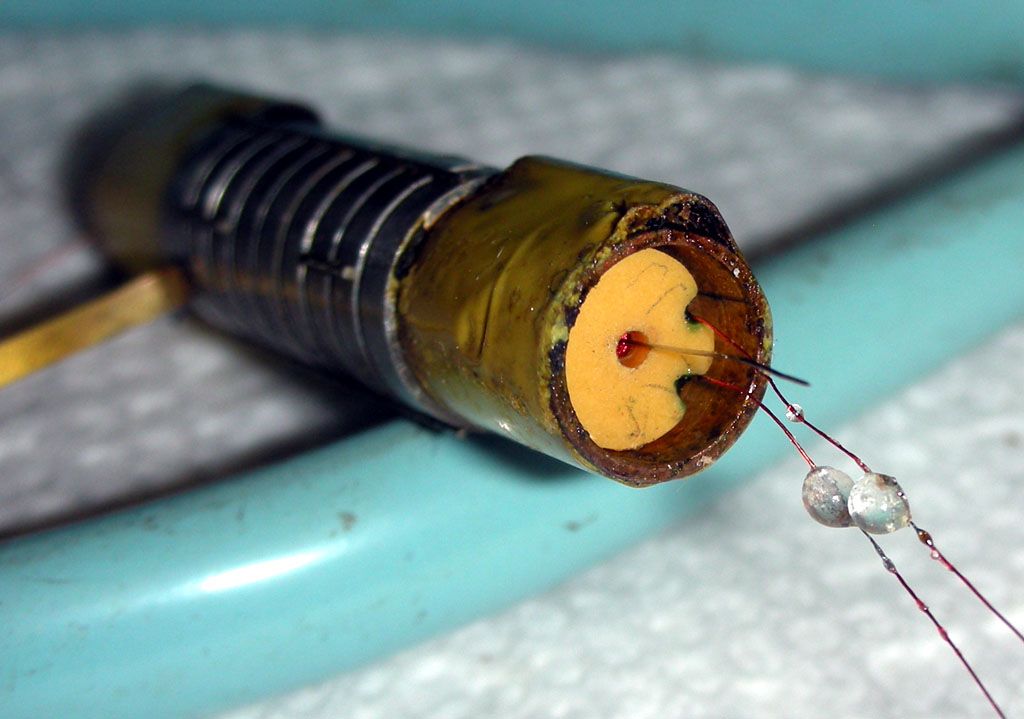

Rainy wx so back on the filters.  Well, what I was worrying about finally happened.  While installing the coils in the copper disk, first one went in fine, 2nd one didn't go all the way in, pulled it out and I'd mashed the magneto wire and broke it off.  Tried welding it back on, but like before all I succeded in doing was making the original #40 wire shorter, so I cut off another piece of #34 and welded that back on.  Left it long, installed the coil and then cut the wire off at the end of the coil.  I'm hoping this one will work too, but it will be an extra 4K filter for me.  All I need to do now is put the foam PE on it and install it back in the tube, solder the wires and solder it shut.
