[MVMA] Recent upgrade DARA <> MVHS 13.5 miles

Moe ab8xa at arrl.net
Thu Nov 29 11:14:28 EST 2018


On 11/29/18 10:12 AM, Chuck Gelm wrote:
> �I read that you want to '*increase the throughput*' an existing
> *solid link*

First, yes I want to increase throughput... much of the AREDN world is
using services like TeamTalk. We should be able to do that here.

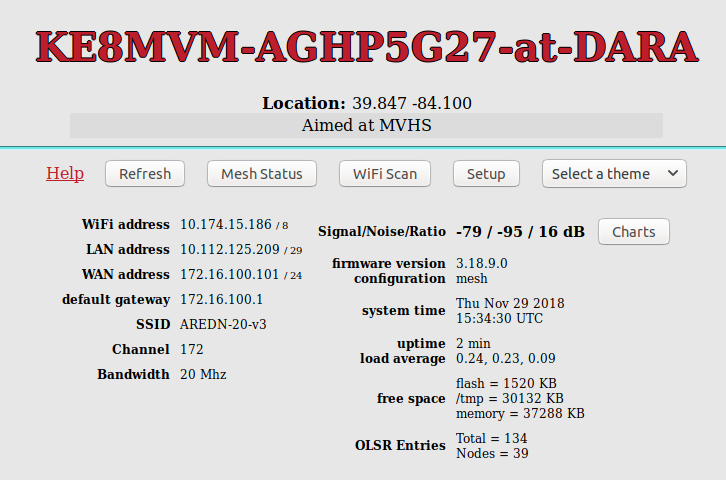

Here is your solid link at ham-exclusive Channel 172 at 20 MHz:

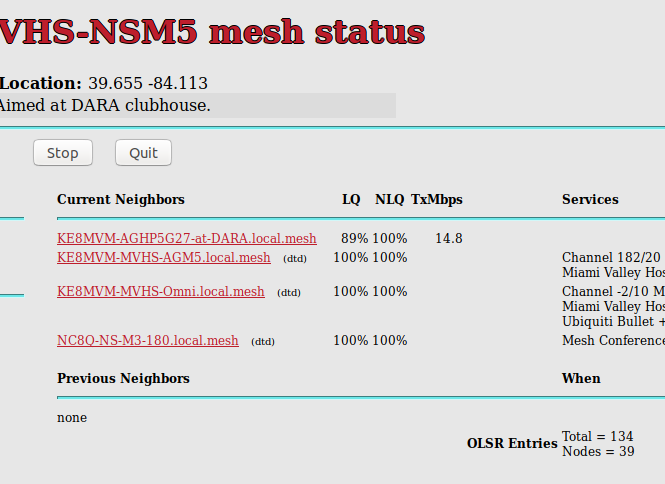

One more time... the S/N of the reflected NSM5 drops at the higher end
of the band.

This below could be 100% and 19+ from the AGM5:

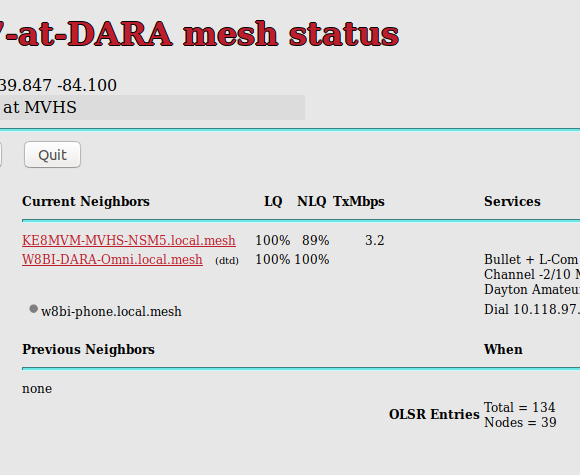

DARA can't send very fast to a nearly deaf node (8 dB S/N) at MVHS

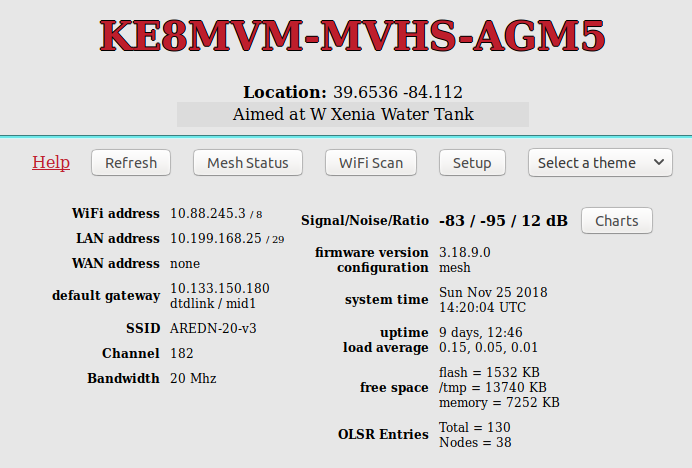

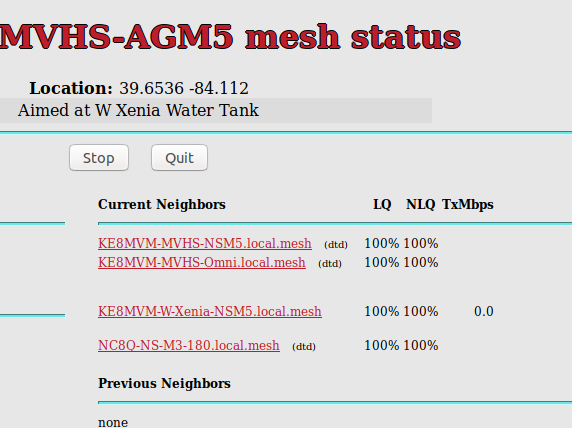

The AGM5 at MVHS performs well at 182/20. Below is what it gets from the
NSM5 at West Xenia, which is aimed 60 degrees away from MVHS toward
Bill: Rather than use it with your new MikroTik LHG5, the AGM5 would
best serve the MVMA linked to DARA.
