[MRCA] [MMRCG] Your thoughts on acquiring a BC-611 today

[B. Smith]

Use a small telephone "Line Sense Relay" or "Off Hook" relay in the
filament circuit to turn on the HV supply.
Z



On 5/25/2026 6:55 PM, Robert Nickels via MRCA wrote:
> On 5/25/2026 1:13 PM, J Mcvey via groups.io wrote:
>> I think the power supply is the biggest problem with the BC611.
>
> Easily addressed using modern DC-DC boost converter technology.  A
> "Nixie power supply" that sells on eBay for $10 will produce the
> current and voltage required by the BC-611 while operating from 6VDC

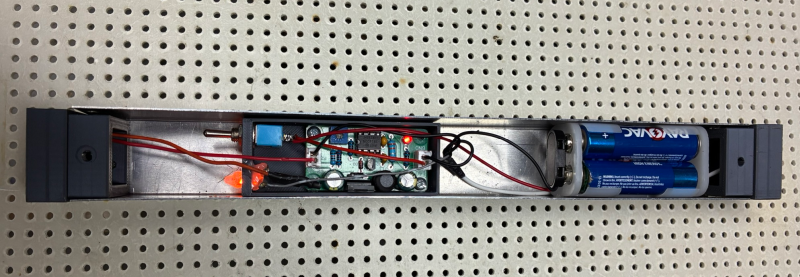

> and typically run 85% efficiency or better.   I made a 3D printed
> housing with a power switch which along with a standard battery holder
> for four AA cells fit into a simple U-shaped thin aluminum frame along
> with 3D printed endpieces that make contact with the radio battery
> contacts.  Others have 3D printed the whole works but to use a
> standard battery holder the walls need to be kept thin in order for it
> to slide into the BC-611.
>
> The antenna-actuated switch will still turn the filaments on/off as
> always but since the battery-substitute has internal batteries I just
> pop it out and turn it on when needed.   For the filaments you need
> just one D cell, and a 50 cartridge case (field expedient, per the
> manual).  Or equivalent ;-)
>
> 73, Bob W9RAN
>
> PS:   Many of these batteries were made by Burgess Battery Co. here in
> Freeeport IL and during the war, in satellite plants in eight towns in
> NW IL and SW WI.   This watercolor painting that is displayed in the
> Silver Creek Museum was done in 1943 and was found in the Freeport
> headquarters before the buildings were demolished.  There's some
> damage but it refers to Burgess batteries as the "Powerheart for
> bazookas and walkie-talkies":
>
>
>
>
