[MRCA] [MMRCG] Your thoughts on acquiring a BC-611 today

[Robert Nickels]

On 5/25/2026 1:13 PM, J Mcvey via groups.io wrote:
> I think the power supply is the biggest problem with the BC611.

Easily addressed using modern DC-DC boost converter technology.  A
"Nixie power supply" that sells on eBay for $10 will produce the current
and voltage required by the BC-611 while operating from 6VDC and

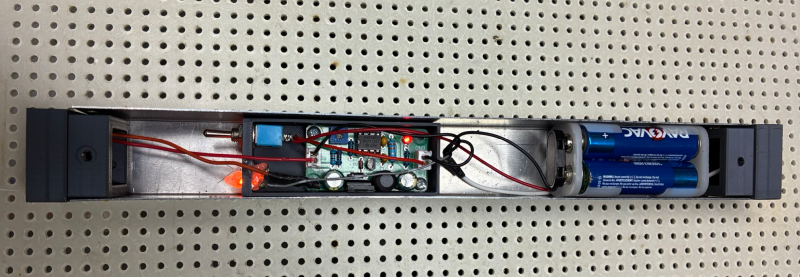

typically run 85% efficiency or better.   I made a 3D printed housing
with a power switch which along with a standard battery holder for four
AA cells fit into a simple U-shaped thin aluminum frame along with 3D
printed endpieces that make contact with the radio battery contacts.
Others have 3D printed the whole works but to use a standard battery
holder the walls need to be kept thin in order for it to slide into the
BC-611.

The antenna-actuated switch will still turn the filaments on/off as
always but since the battery-substitute has internal batteries I just
pop it out and turn it on when needed.   For the filaments you need just
one D cell, and a 50 cartridge case (field expedient, per the manual).
Or equivalent ;-)

73, Bob W9RAN

PS:   Many of these batteries were made by Burgess Battery Co. here in
Freeeport IL and during the war, in satellite plants in eight towns in
NW IL and SW WI.   This watercolor painting that is displayed in the
Silver Creek Museum was done in 1943 and was found in the Freeport
headquarters before the buildings were demolished. There's some damage
but it refers to Burgess batteries as the "Powerheart for bazookas and
walkie-talkies":
