[MRCA] Univac Aircraft Antenna Coupler

[mstangelo at comcast.net]

Going through some military stuff on a snowy Sunday and found a couple of aircraft antenna couplers I got surplus years ago. They were designed by ERA and this model was built by Univac. The are an HF Coupler mounted in the vertical stabilizer of a plane such as a KC-135 to tune the probe HF antenna. They were hermetically sealed and basically consist of a rotary inductor and vacuum variable capacitor tuned via a discriminator circuit.

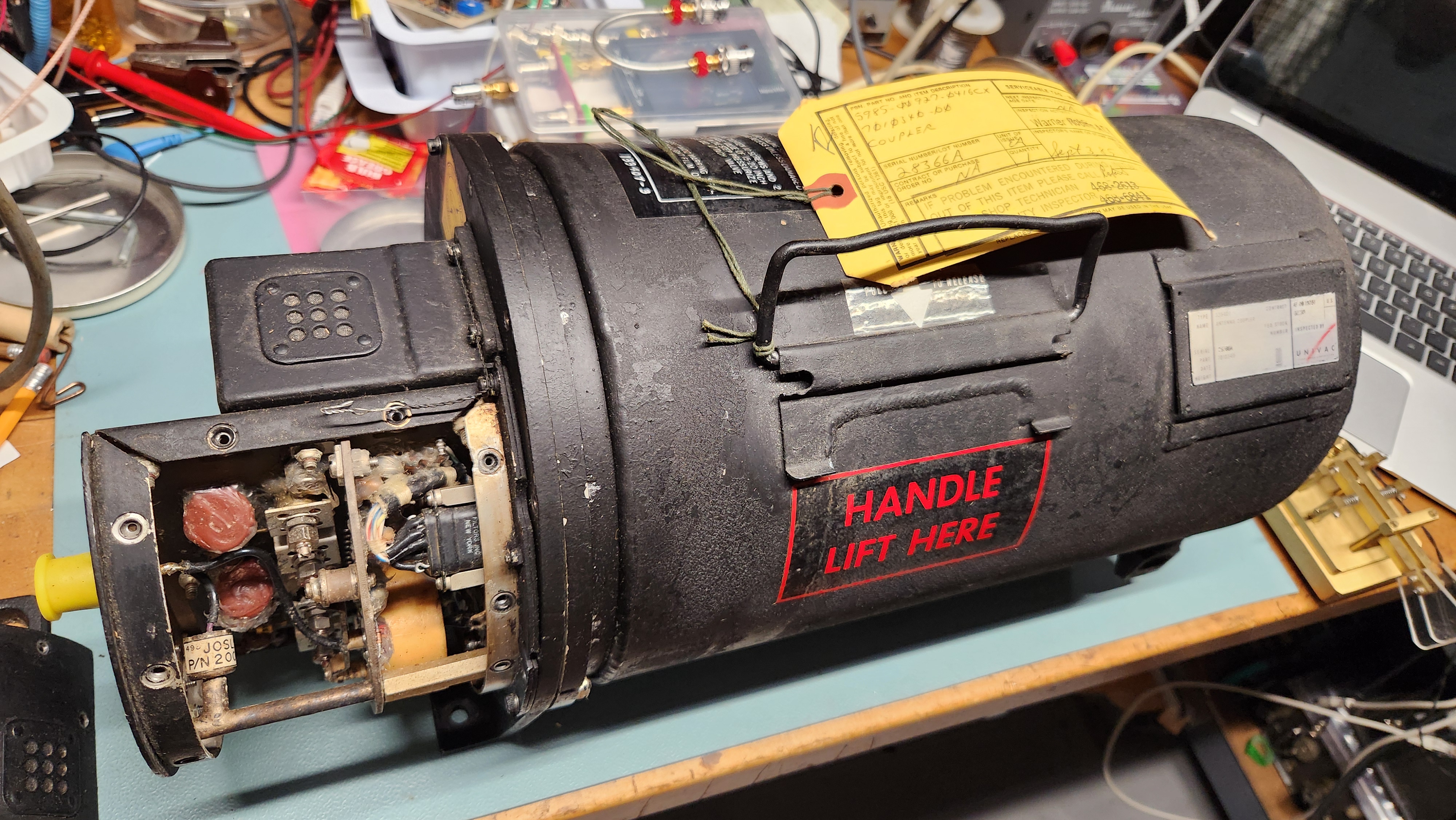

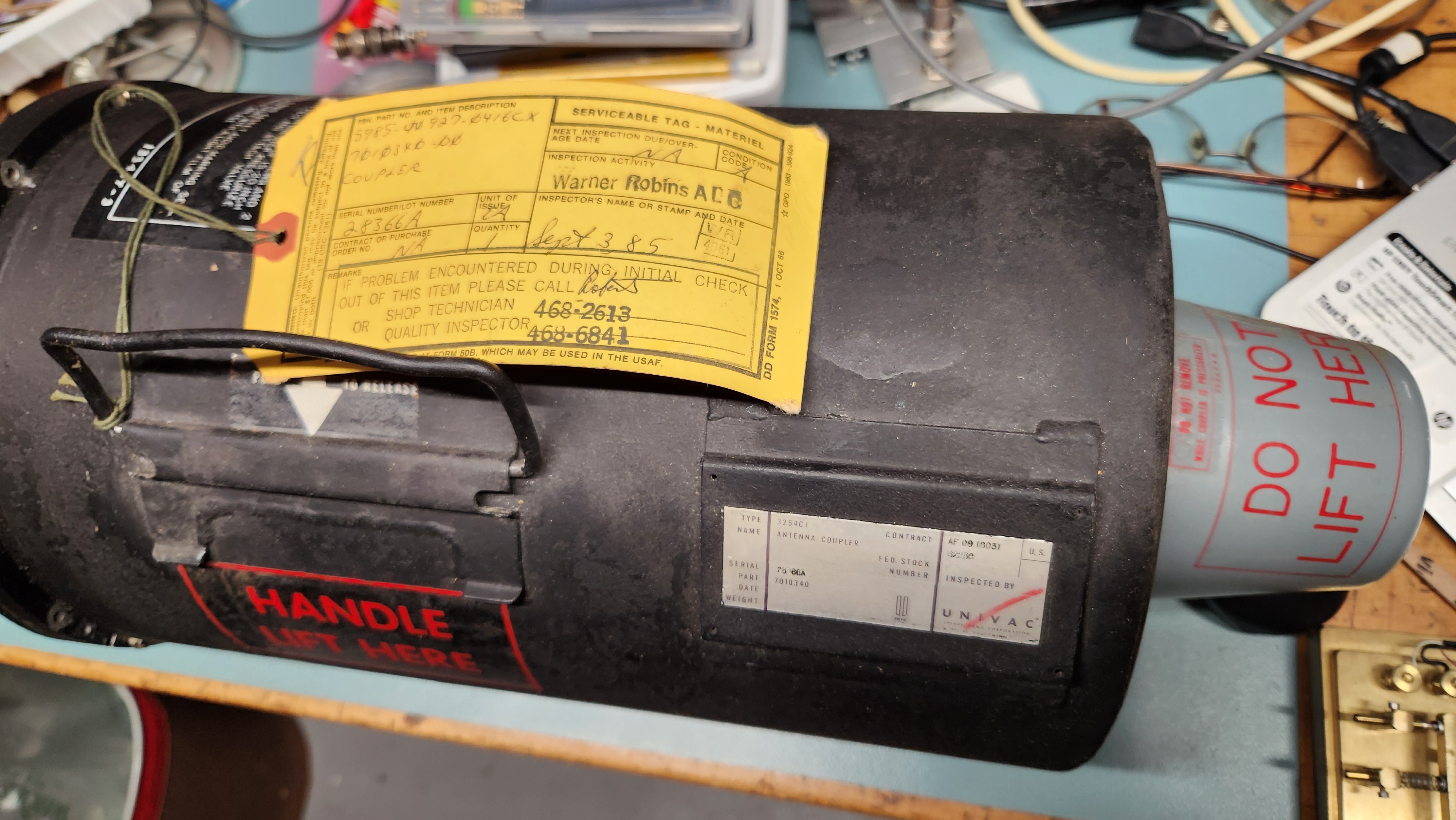

I've attached a couple of pictures. The discriminator section has the cover removed. They were last services at Warner Robbins in 1965. I was told they require 28 VDC and 100 AC 400 Hz. The RF connection is made via a C connector (my favorite RF connector)

I was going to use the components in a tuner but want to get in operational in their original state. Does anyone have any documentation about the tuner or it's controller box?

Thanks in Advance,

Mike N2MS
