Mark,

Yes, I started this foolishness back about 1999.  I put up a web page,
and various people built similar sets.  Full story HERE
<https://skywaves.ar88.net/SPY/spy.htm>.
If this guy followed my plan, the three wires coming out will be ground,
heater, and B+.  It should run on 3-4 9-volters in series.
You'll need a transformer or some sort of network to sub for the headset.

Good luck,
AL

On 3/28/2025 12:16 PM, W2HX wrote:
> N3FRQ is the man for these
> https://skywaves.ar88.net/SPY/canteen_detail.htm
> <https://skywaves.ar88.net/SPY/canteen_detail.htm>
>
> canteen_detail <https://skywaves.ar88.net/SPY/canteen_detail.htm>
> Construction Details of Canteen Radio. A few of the components are of
> post-WWII manufacture, but they're not too far off from what would
> have been available.
> skywaves.ar88.net
>
>
>
>
>
> 73 Eugene W2HX
> My Youtube Channel: https://www.youtube.com/@w2hx/videos
>
> ------------------------------------------------------------------------
> *From:* mrca-bounces at mailman.qth.net <mrca-bounces at mailman.qth.net> on
> behalf of MilComm Guy <m38inmaine at gmail.com>
> *Sent:* Friday, March 28, 2025 12:11 PM
> *To:* mrca at mailman.qth.net <MRCA at mailman.qth.net>
> *Subject:* [MRCA] Canteen Radio
> I just received this as part of a radio lot I purchased and would like
> to ask if anyone knows if this may be a standard kit that could be
> purchased or is it a homebrew rig and how to power it up ?  I would
> like to have it for a working display with my WWII MB jeep at shows.
> I see "phones" so I assume it would need some type of amplified
> speaker for people to hear it on display.

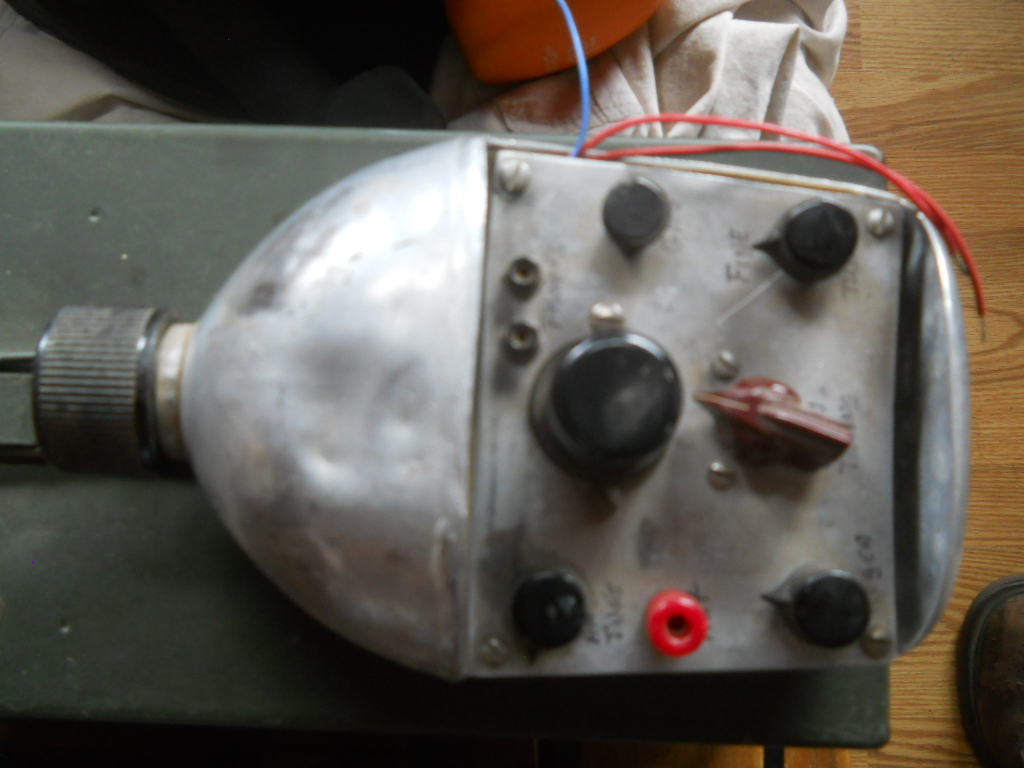

> DSCN0616.JPG

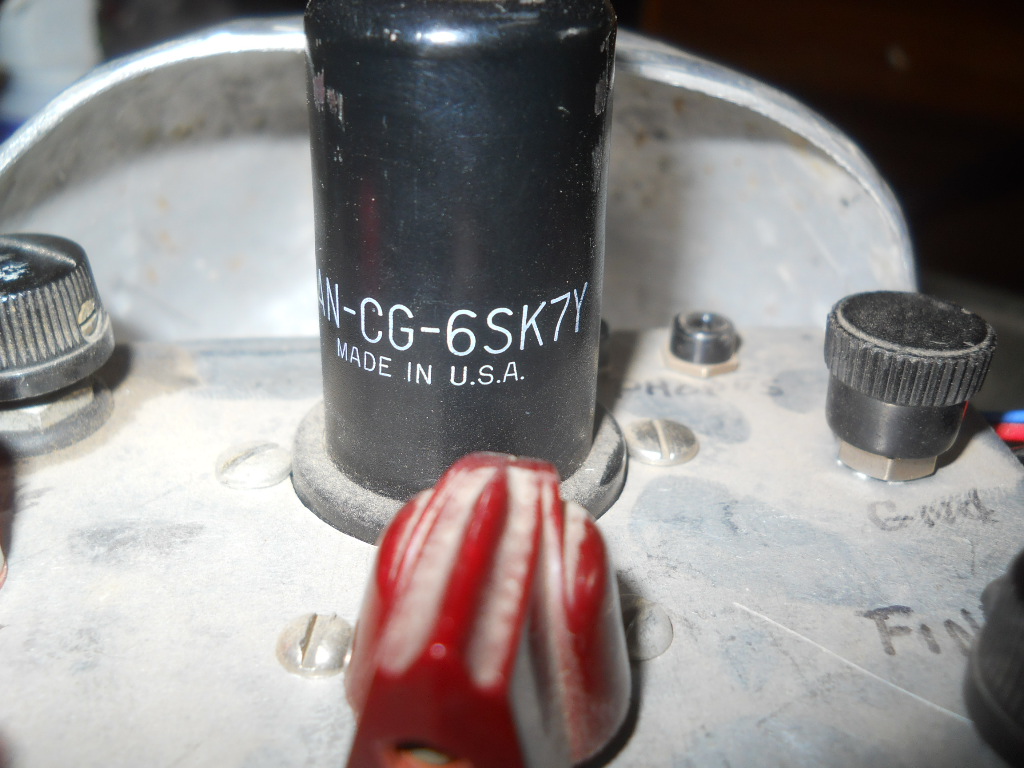

> DSCN0617.JPG

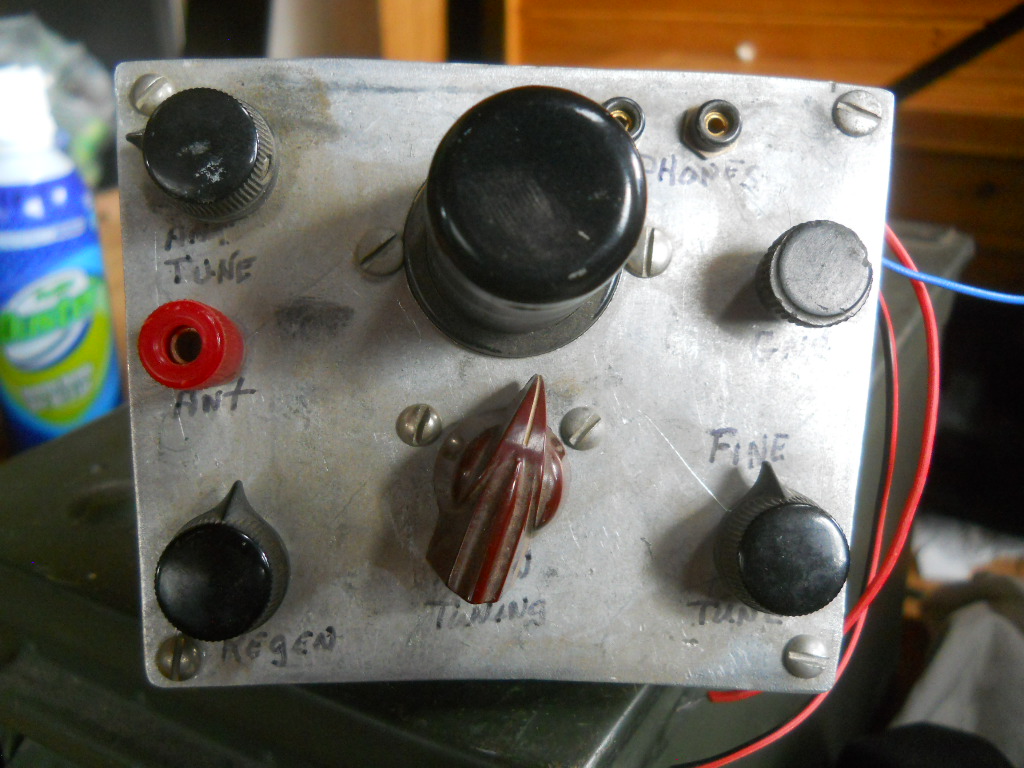

> DSCN0618.JPG

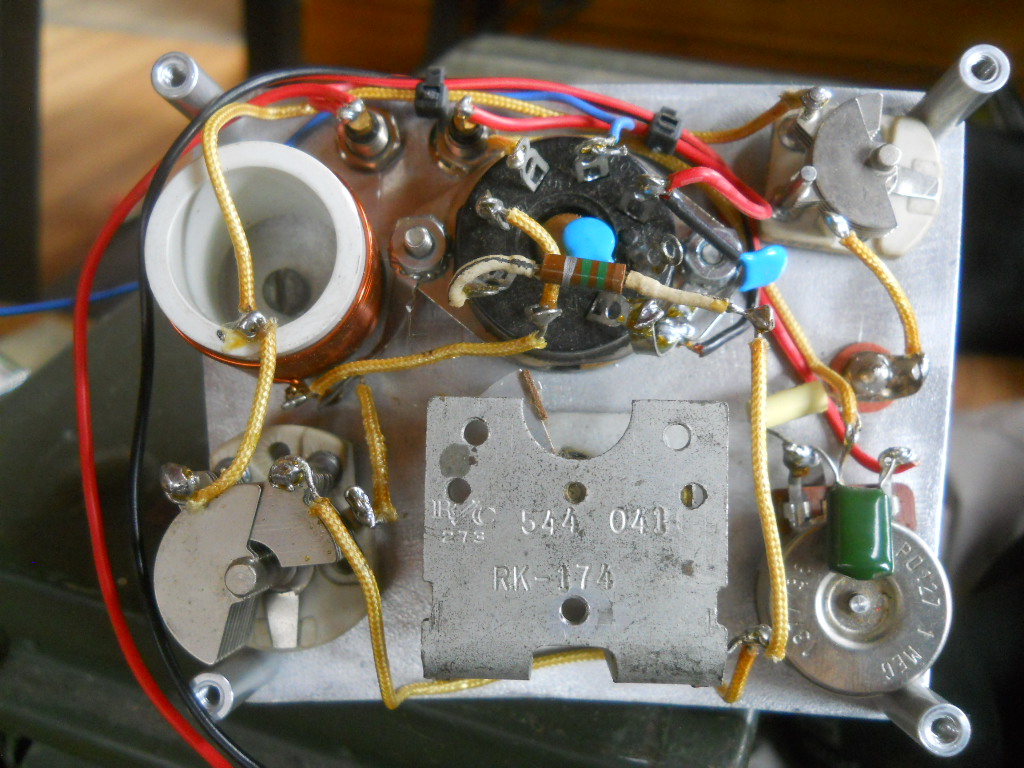

> DSCN0619.JPG
>
> Thanks
> Mark
>
> K1HF
>
> ______________________________________________________________
> MRCA mailing list
> Home:http://mailman.qth.net/mailman/listinfo/mrca
> Help:http://mailman.qth.net/mmfaq.htm
> Post:mailto:MRCA at mailman.qth.net
>
> This list hosted by:http://www.qsl.net
> Please help support this email list:http://www.qsl.net/donate.html

--
ARK Sig Block Al Klase - N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
