[MRCA] AN/UGC-136BX teletypewriter bulk purchase

[Ray Fantini]

Think with all this talk about the UGC-136 stuff and the problems associated with them being 75 WPM or above this may be useful. Couple years back I was playing around with MX terminals that were 75 WPM  ASCII and built up converters around AY-5-1031 uart chips to do the conversion from 60 to 75 words per minute, also had to do language between five bit to eight bit but don't think that will be an issue with the 136.
If anyone is interested in any more background information let me know, documented the entire project at the time.
You can see the MX terminal copying RTTY at:

https://www.youtube.com/watch?v=tMiDnn5a_xM&t=9s

Attached are two drawings showing the receive side and send side of the uart, remember you can do it all on one chip being each uart has a receiver and transmitter. I think the data levels will interface directly but never trued it being that I have never seen a 136 myself.

Ray F/KA3EKH


-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20250724/f0123f1e/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

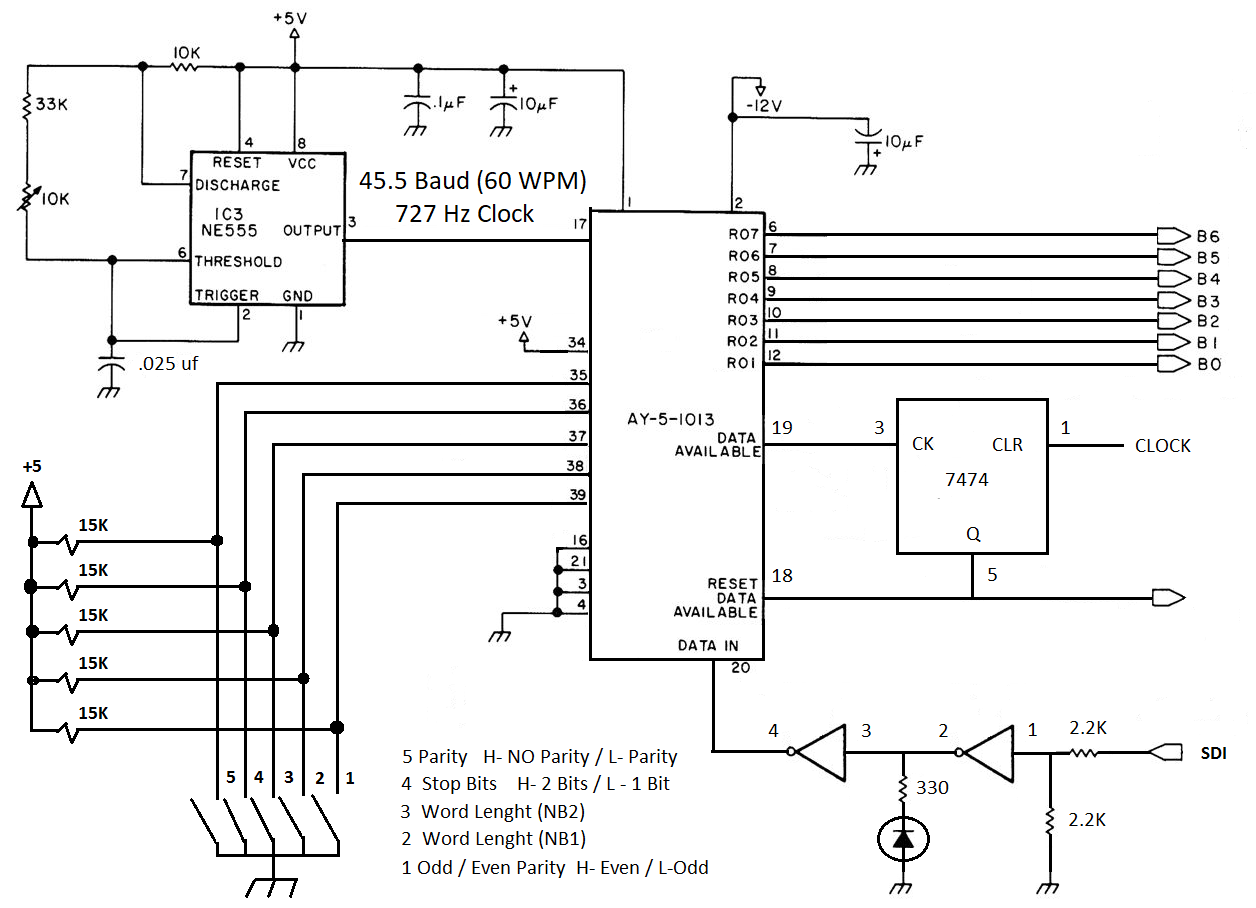

Name: UARTRX.png
Type: image/png
Size: 192411 bytes
Desc: UARTRX.png
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20250724/f0123f1e/attachment-0002.png>
-------------- next part --------------
A non-text attachment was scrubbed...

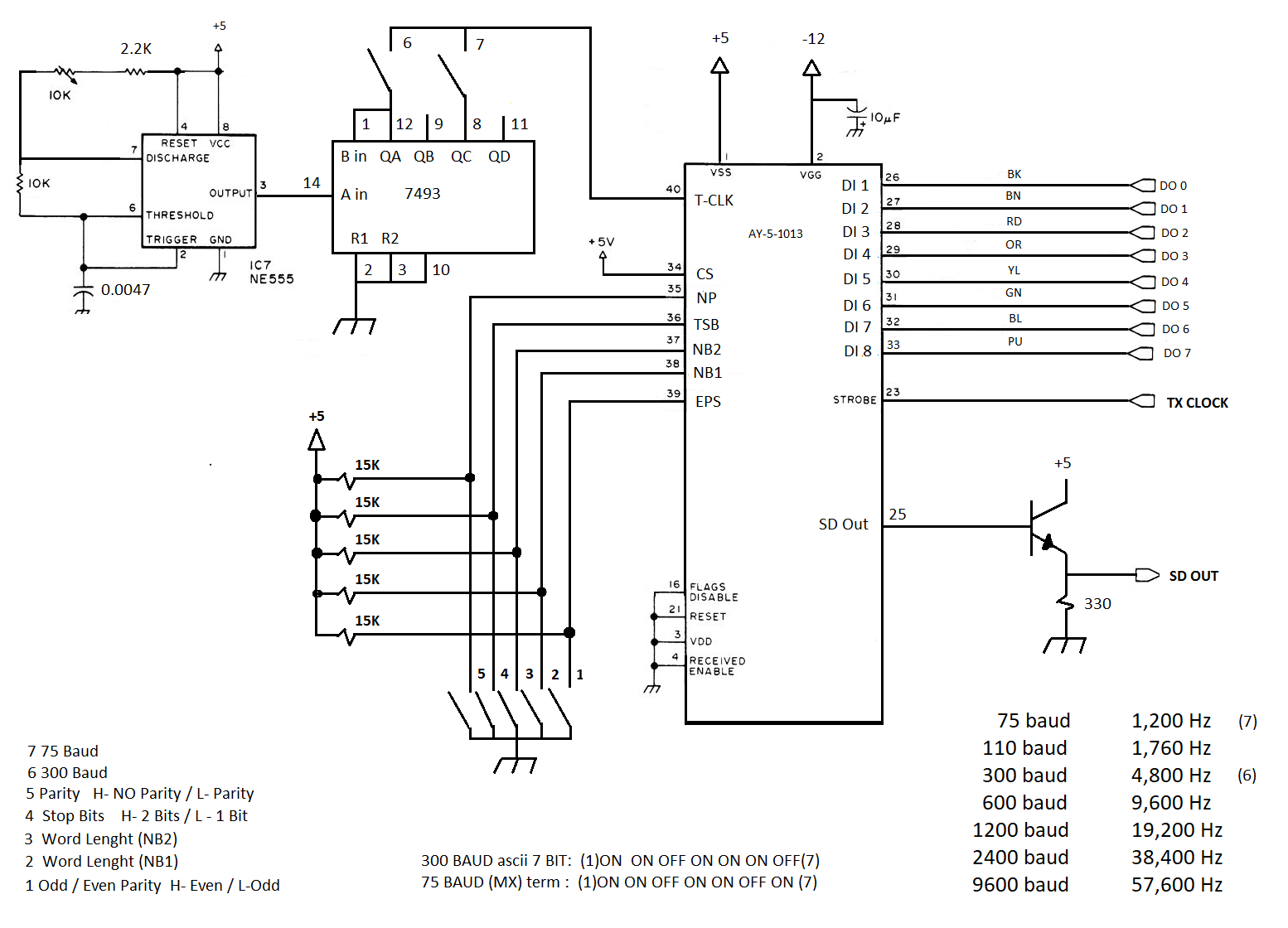

Name: UARTTX.png
Type: image/png
Size: 176668 bytes
Desc: UARTTX.png
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20250724/f0123f1e/attachment-0003.png>
