[MRCA] BC-348 Shockmount query

[Michael Hanz]

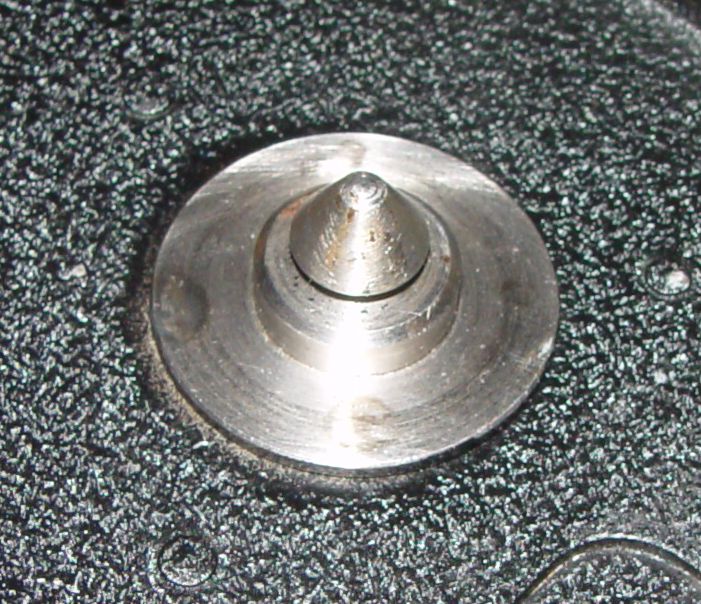

The stainless pins are indeed spot welded in four places to the .063"
aluminum U-shaped subchassis on the bottom of the case proper, Jeep.  I
would think they would be difficult to remove cleanly unless you milled
the spots down to the case proper with a Bridgeport mill or equivalent.
A chisel will just make a mess of things.  I like John's suggestion,
though there are other possibilities depending on how complex/permanent
you want to make it.

- Mike  KC4TOS



> On 9/1/2024 9:10 AM, Doran Platt via MRCA wrote:
>> Has anyone successfully removed the pins from the bottom of the
>> receiver cabinet?  I have made several ersatz mounts in the past but
>> the smaller size Barrymounts are now hard to find. It appears that
>> the pin assy may be welded to the secondary part of the receiver
>> case?  Any info?
>> Jeep K3HVG
