[MRCA] A Note on POWERING UP AN 115VAC/800 HZ TBW power supply/transmitter ( applicable to Navy GP-7 as well )

[Michael Hanz]

That's a beautiful way to get the necessary power, Mark.  It is
basically the way that a number of high end variable frequency AC lab
supplies generate their outputs as well, so you're in excellent

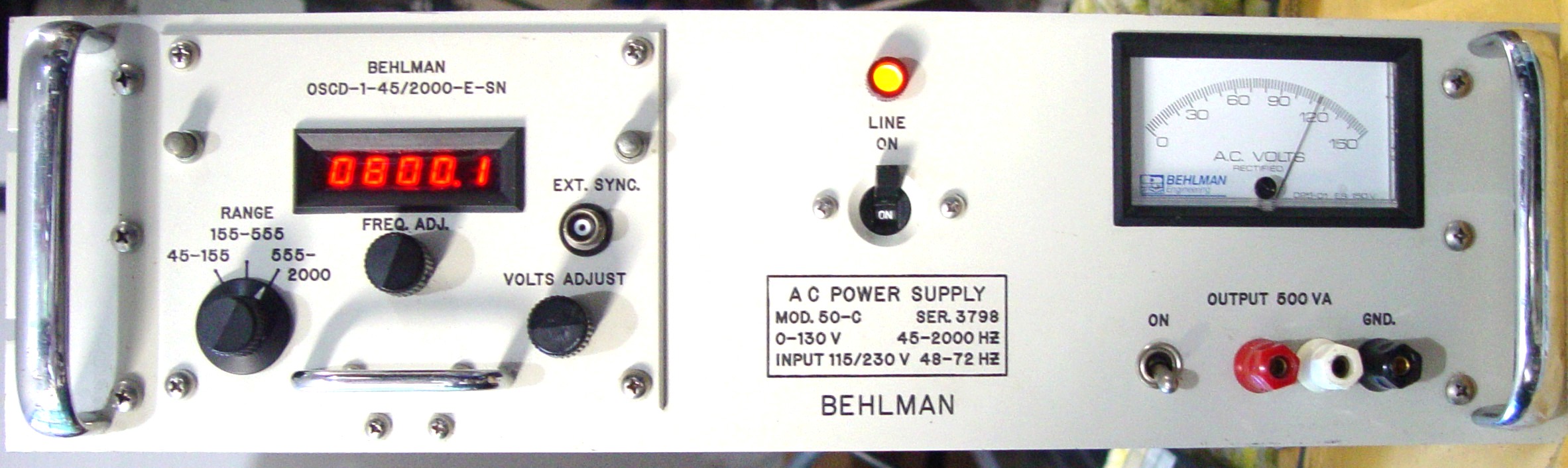

company.  Here is mine, resurrected from a damaged Behlman 50C supply
with a digital oscillator readout.  The added bonus is a pure sine wave
that has less than 0.5% harmonic distortion, so the TBW/GO power
transformers stay cool.  And...the supply is vewy, vewy quiet... 😁

- Mike  KC4TOS



On 10/3/2023 4:25 PM, M Dittmar wrote:
> The TBW and its power supply is just a cool-looking transmitter, with
> the big chunky components and the internal shelves, black wrinkle,
> lots of meters and dials.  It is a thing of beauty.  However,
> supplying AC power to the TBW power supply can be a problem, as 800 hz
> AC power at 120 VAC at 5 amps is required for full power ( the TBW
> also requires 12 VDC at 5 A for the keying relay and lights ). I'm
> outlining briefly a fairly simple way to generate the 800 hz power
> that I have been tinkering with. NO MODS on either the TBW or the TBW
> power supply.  I can't run using the full power setting on the TBW
> power supply, but I can reliably get 80-100 watts of stable CW out on
> 80 meters on the 1/2 power setting of the TBW supply. This suits me
> just fine.  I'm sure someone else could do better.  I know it is very
> inefficient.  It is experimental.  No guarantees, but it works for
> me.  YMMV depending on what components you can find.
>
> The stock source of AC power for the TBW power supply is the 800-1
> inverter, hard to find and with a reputation as tornado siren as
> well....and the inverter requires a very hefty DC power supply to run
> it. To circumvent the whole 800 hz issue,  I suspect many of the TBW
> power supplies were gutted and a conventional power supply built into
> the remaining cabinet, or simply not used.  With a few minor,
> reversible modifications to the TBW transmitter itself and a homebuilt
> DC power supply, the TBW power supply can be relegated to the shelf.
> I have done this with the MF version of the TBW which I use on 630
> meter CW.  I didn't have an original TBW power supply when I set the
> MF TBW up so I built a conventional DC supply for it.
>
> However,  a recent acquisition of an un-modified HF TBW with its
> un-modified TBW power supply motivated me to run the HF TBW as close
> to original functioning as possible. NO MODS.
>
> So...to make a long story short...I am essentially using a high power
> stereo audio amplifier as an AC power source.  It is a 1200 W sony
> stereo "XPLOD" amplifier (model XM-GTR2022), class AB ( 60 -65% eff ?
> ) which a guy here at work gave me. I found that in bridged mode, when
> driven with an 800 hz audio source the audio amp can generate up to 75
> VAC rms max when connected directly to the 115VAC input of the TBW PS
> ( bridged mode, 16 ohms output load rated ).  However if I add a 400
> hz variac in a 1/1.4 fixed step-up configuration between the output of
> the audio amplifier and the AC input to the TBW power supply I can
> obtain 115 VAC at 800 hz.  So the output of the audio amp across the
> fixed "100V" terminals of the variac, and the TBW PS connected to the
> fixed "140V" terminals of the variac.  I can adjust the drive to the
> amplifier from my signal generator to get the desired 800 hz AC output
> voltage from the variac at the input of the TBW AC supply.
>
> I am using a 100 amp switching power supply from Amazon to power the
> audio amp.  Of course appropriately sized cables used throughout to
> handle the high current between the amplifier and audio amp.
>
> Total Key-up power draw at the 12 V 100 Amp switcher is about 230
> watts, key down power draw at 1/2 power TBW setting about 600 watts.
> The audio amp doesn't really get warm, but I keep a fan on it anyway.
> Neither does the 400 hz variac.  I get about 80 - 100 watts of CW
> power out of the TBW into 50 ohms. Good enough for me !  I tried full
> power TBW setting but the audio amp goes into protect mode and shuts
> down.
>
> A couple of other car audio amps I tried ( class D ) generated much
> less voltage in bridged configuration.  Most of the class D audio amps
> on Amazon are rated to run the high power at 2/4 ohms, and at higher
> load resistance the power falls off RAPIDLY.  They are very cheap and
> quite high power,  but the two samples I bought I could not get the
> voltage swing out of them I needed.
>
> Anyway, something to experiment with if you need 800 hz AC for something.
>
> This fall I plan to power up a GP-7 using the same method.
>
> 73 Mark AB0CW
