Subject: [MRCA] Forward or Backward

Nicely done! Good to see the infrastructure.
73 de Bart, K6VK ##
-- --
Bart Lee, K6VK, CHRS Archivist

Texts only to: 415 902 7168

www.bartlee.com

{Bart(dot)Lee(dot)K6VK(at)gmail(dot)com}
<http://www.lawforhams.com/>



On Mon, May 29, 2023 at 7:32 PM <mrca-request at mailman.qth.net> wrote:

> Send MRCA mailing list submissions to
>         mrca at mailman.qth.net
>
> To subscribe or unsubscribe via the World Wide Web, visit
>         http://mailman.qth.net/mailman/listinfo/mrca
> or, via email, send a message with subject or body 'help' to
>         mrca-request at mailman.qth.net
>
> You can reach the person managing the list at
>         mrca-owner at mailman.qth.net
>
> When replying, please edit your Subject line so it is more specific
> than "Re: Contents of MRCA digest..."
>
>
> Today's Topics:
>
>    1. Forward or Backward (Ray Fantini)
>
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Mon, 29 May 2023 19:30:21 +0000
> From: Ray Fantini <RAFANTINI at salisbury.edu>
> To: "mrca at mailman.qth.net" <mrca at mailman.qth.net>, MMRCG
>         <MMRCG at groups.io>,      "HarrisRadio at groups.io" <
> HarrisRadio at groups.io>
> Subject: [MRCA] Forward or Backward
> Message-ID:
>         <
> DM8P220MB04729BD9AE80831127B15038B84A9 at DM8P220MB0472.NAMP220.PROD.OUTLOOK.COM
> >
>
> Content-Type: text/plain; charset="windows-1252"
>
> Yesterday I decided to build a rack mount for my RF-5000 set, thought
> about trying to buy one but at the end of the day built up one from stuff
> around the house. Started with using an old RCA monitor amplifier rack
> tray. It was built back in the early sixties out of steel and use to
> support a couple heavy monitor amplifiers so knew it would have no issue
> supporting the Harris stuff. The back stopping blocks and the front lock
> downs are from a old military GRC-19 mount that I cut up years ago for
> building a mount for my GRC-106 Drilled out the appropriate holes for
> installing the back stops and two holes in the front that I installed a
> couple bolts for the wing nuts to attach to along with spot welding the
> heads of the bolts under the tray so they would not turn or fall out when
> the front retainers are removed. Painted everything black and there you go.
>
> The real question is ?should the amplifier be installed forward or
> backwards?? the mount works both ways, so it doesn?t care. This is with the
> amplifier installed backwards, rear front. I think it looks better
> installed like this, just I recall seeing a mobile installation where this
> was done and there was much P/M about how that?s not right, possibly

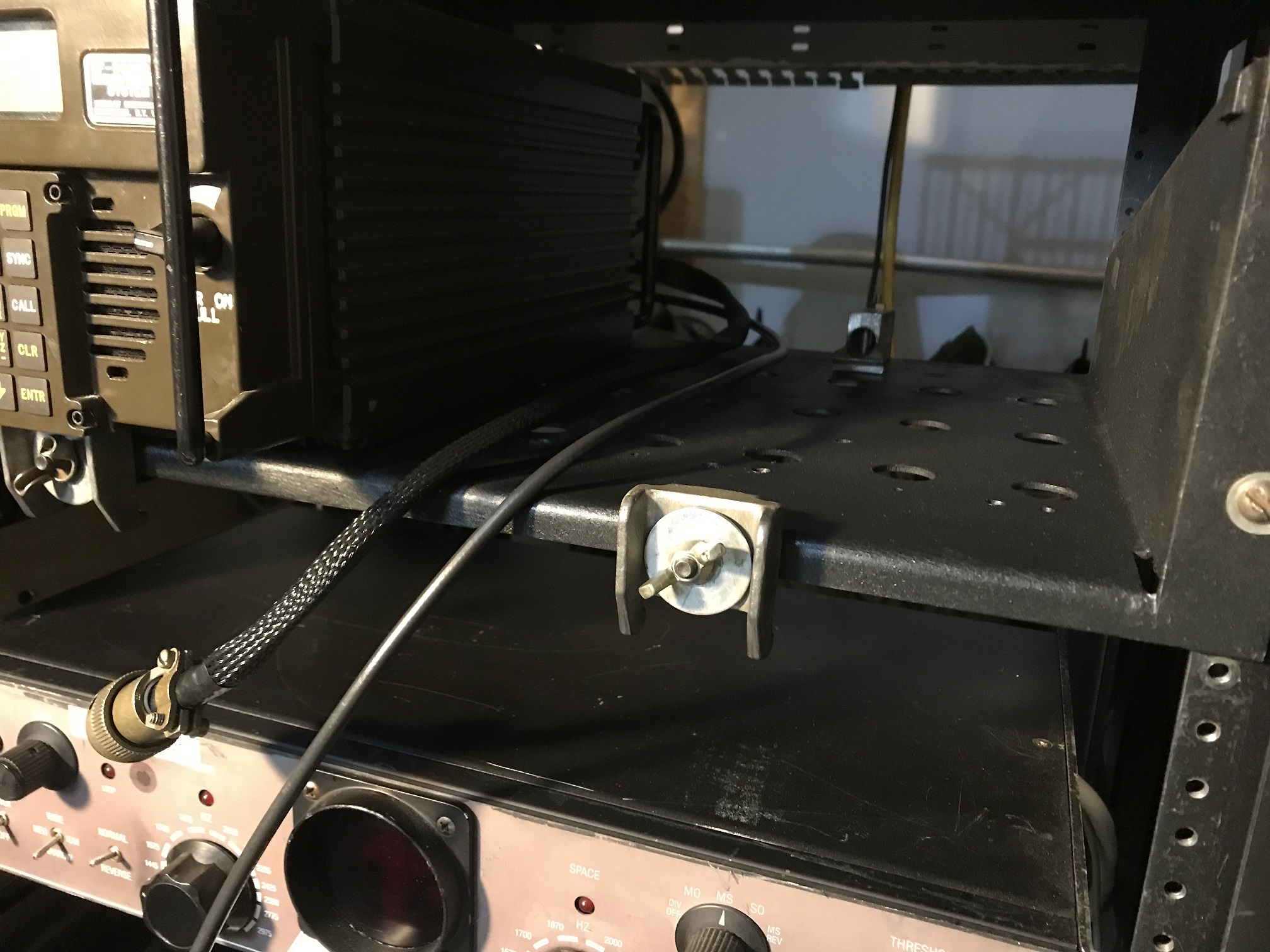

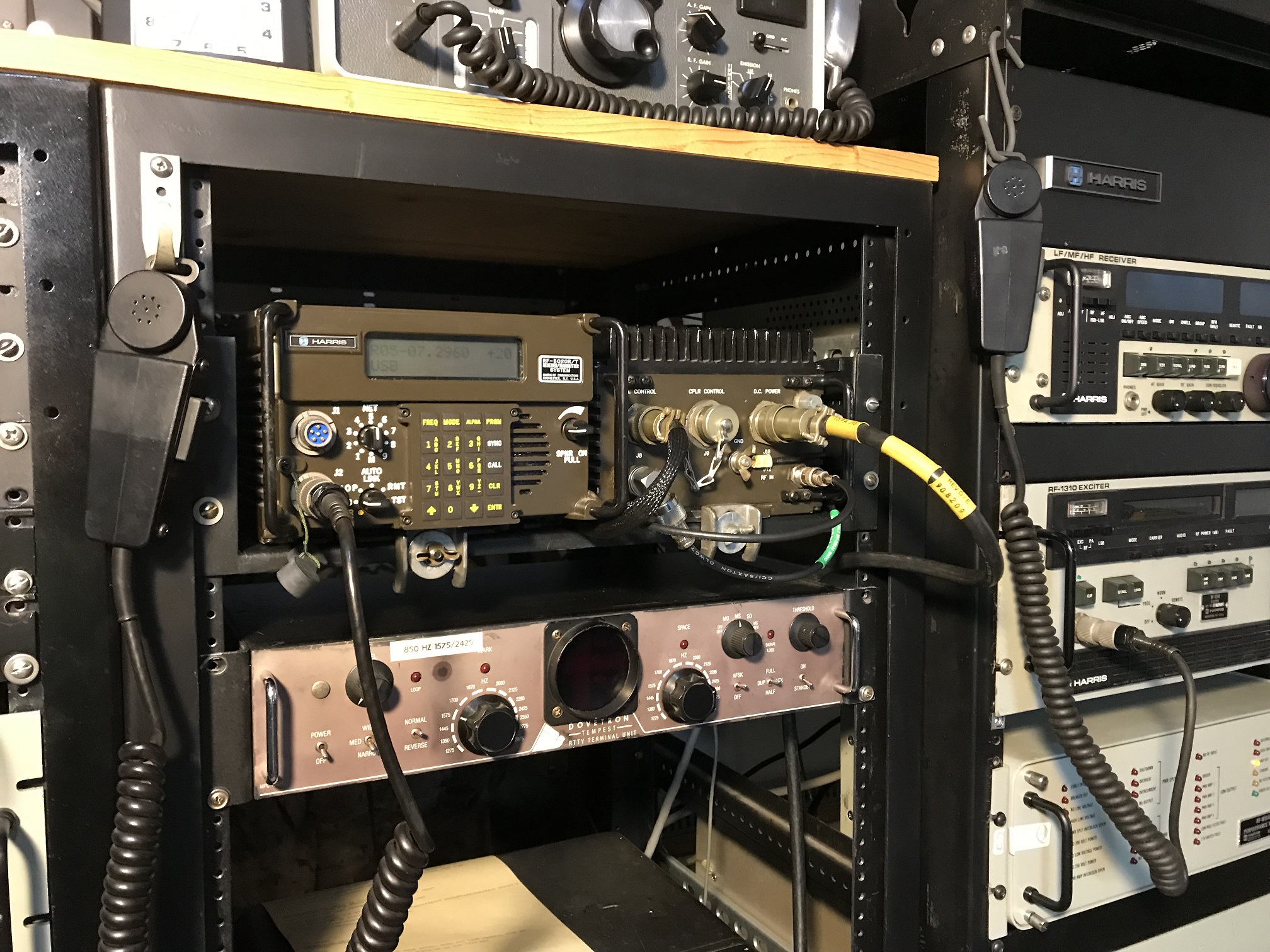

> immoral!  I think this looks better, what do you think? Attached is a
> picture of the installation and the front and back stop.
>
>
> Ray F/KA3EKH
>
>
