[MRCA] An interesting question

[Michael Hanz]

On 6/16/2023 8:00 AM, MARK DORNEY via MRCA wrote:
> It is well documented that USN aircraft carrier-borne were equipped with the ARR-1/ARR-2/ZB homing devices. Were the seaplanes like the OS2U Kingfisher carried by USN cruisers/battleships also equipped with it?

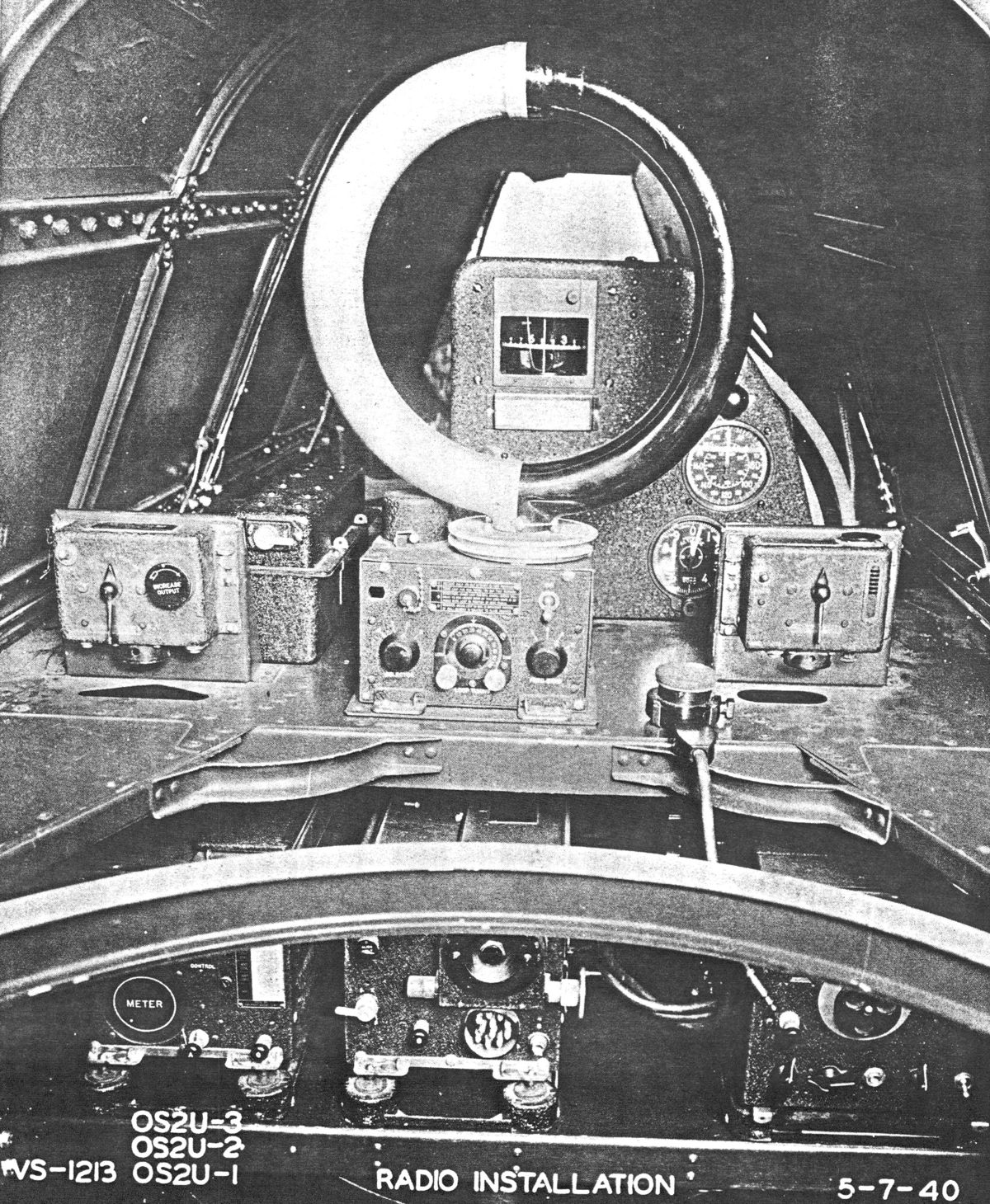

The guidance that approved installation - _in aircraft carriers_ - was
issued in 1938.  Here's the typical installation in an OS2U in 1940 (no
ZB-* - at that point, at least):

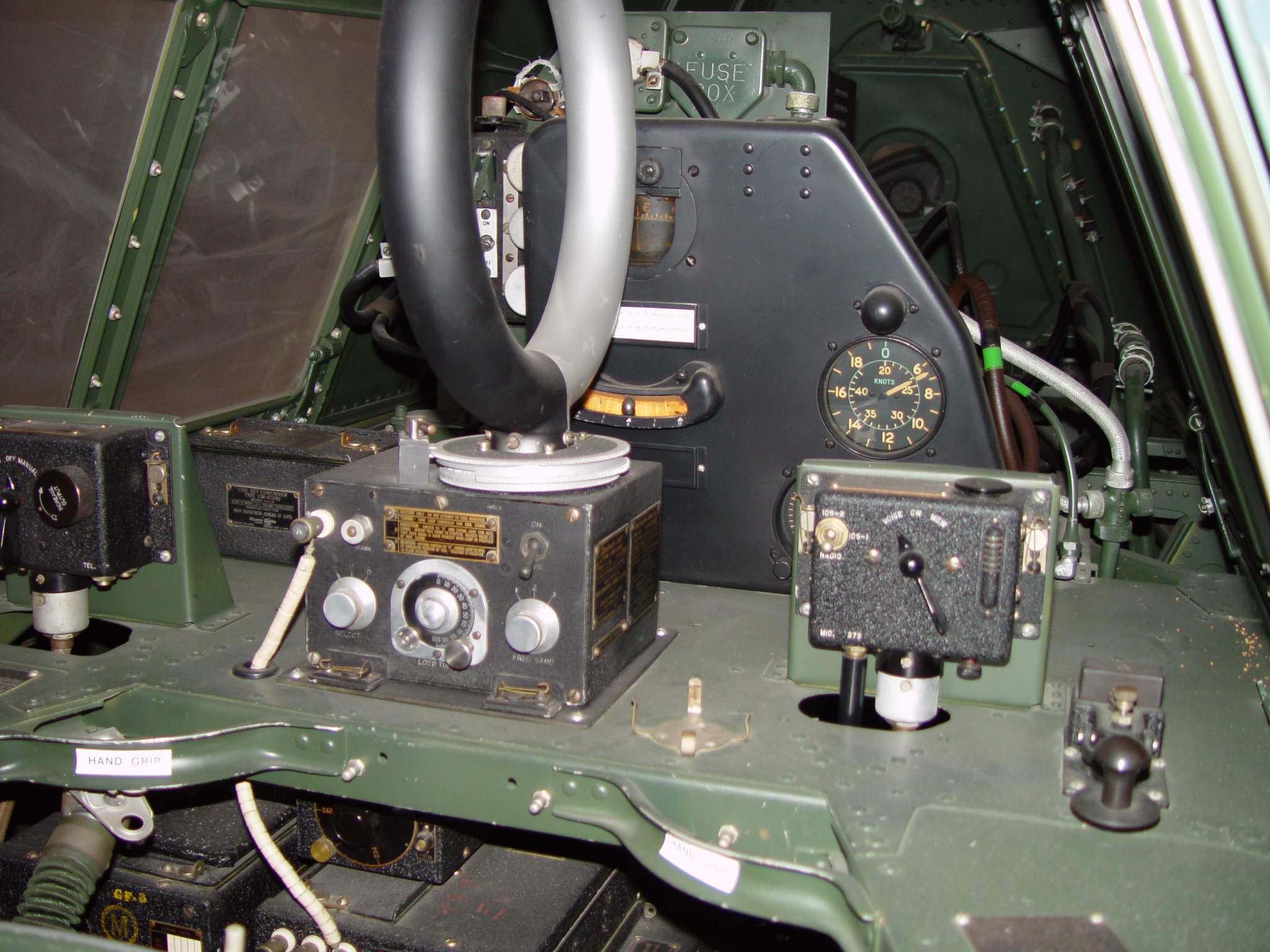

On the other hand, the OS2U photos I took of the rear gunner/radio
operator position at the NASM Museum at Udvar-Hazy do show some
improvements.  It was restored to its configuration in 1944, when it was
used on the USS Indianapolis.  You can see the ZB-* tuning dial just
under the DU direction finder loop adapter for the RU receiver directly
beneath it.

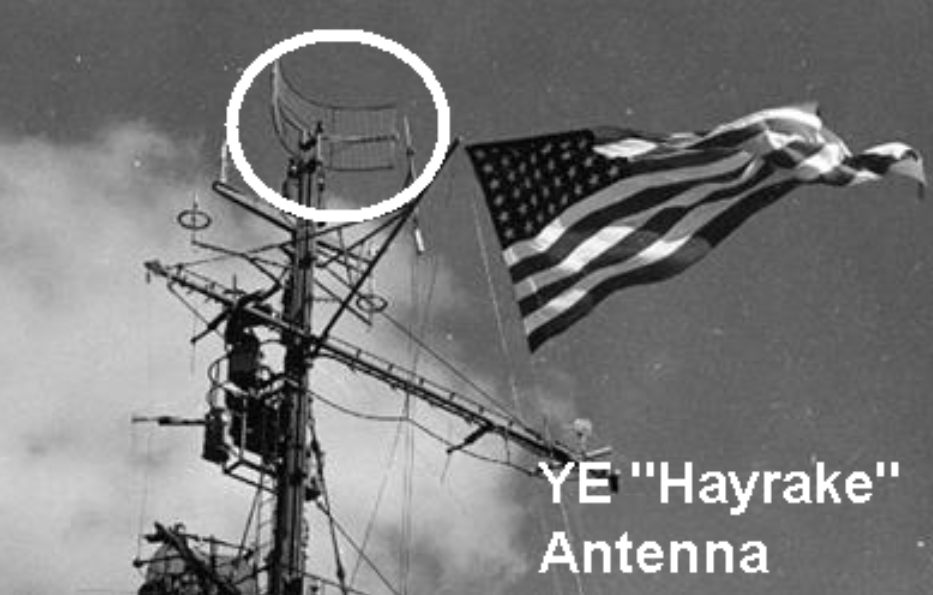

The other half of your question would likely be answered by a photo of
the USS Indianapolis ca. 1944.  The YE/YG antenna was normally the
highest one on the ship.  But given the fact that cruisers usually
covered carriers, they might have use the carrier YE as the target to
return to the general vicinity of the Task Force.  I'll leave that as an
exercise for the reader (I get seasick too easily...)



- Mike  KC4TOS
