[MRCA] Last nights project

[B. Smith]

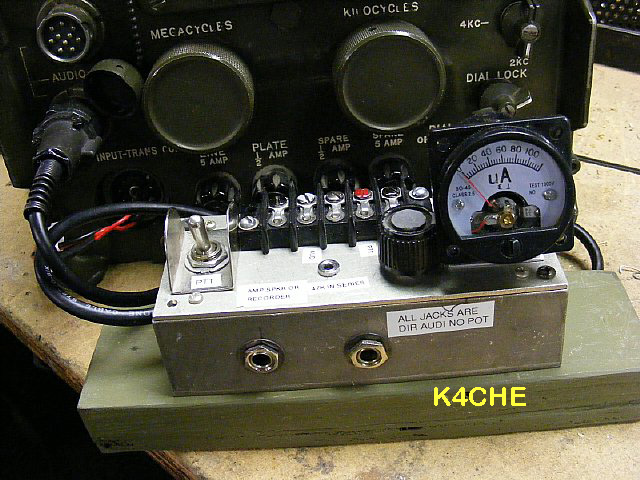

I needed to split the audio from my R-392 to feed two different RTTY
TU's as well as monitor the input audio and I want to be able to reset
the audio levels as needed.  The "Box" with the U77/U connector  will
come in handy. I also installed  3.5MM (1/8 inch jack) for my recorder
and or amplified speaker. The meter plugs in as I am running short of
small 50-100 uA meters. The toggle switch is dedicated to  PTT when
transmitting FSK.
Z
