[MRCA] 850 Hz Shift RTTY

[Ray Fantini]

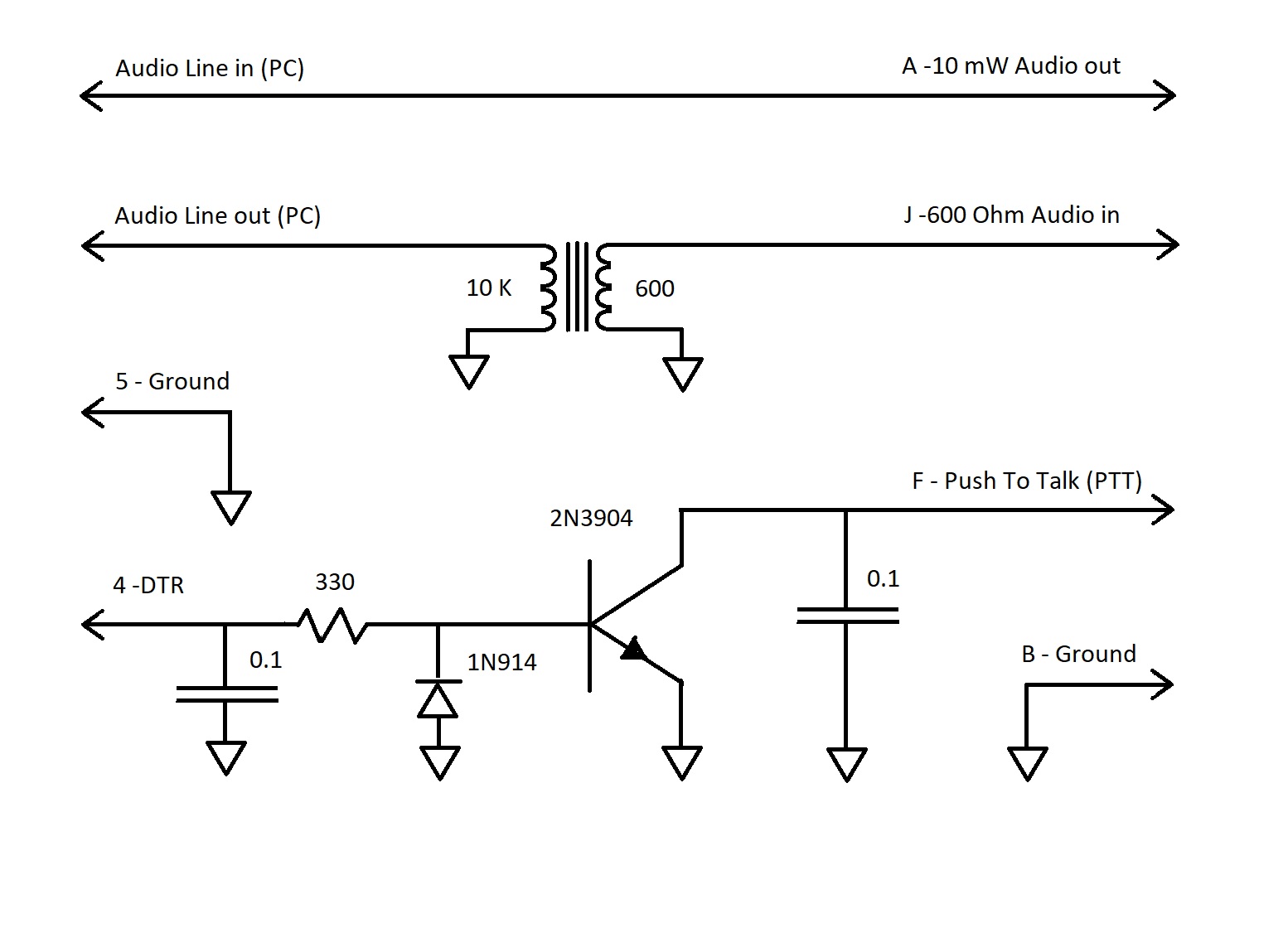

While on the subject of PC RTTY this is the interface that I use going between laptop and 106, or some of the bigger systems at home and Harris radios. Now days use a Dovetron modem connected to the big Harris setup and that's all balanced audio from the home QTH but at this time cheating and using the Toughbook, interface and GRC-106 in the field but hope to be getting a UGC-74 and MD-520 together over the winter and take mechanical teletype show on the road this spring.

Ray F/KA3EKH


From: mrca-bounces at mailman.qth.net <mrca-bounces at mailman.qth.net> On Behalf Of Ray Fantini
Sent: Thursday, November 10, 2022 1:21 PM
To: Al Klase <ark at ar88.net>; Military Radio Collectors Association <mrca at mailman.qth.net>
Subject: Re: [MRCA] 850 Hz Shift RTTY


I have used MITTY 1.68 on a Panasonic Toughbook for some time now, uses the regular PC audio card, the RTS for controlling the transmitter and will do any shift including 850 Hz. That's the set up I use for running RTTY from the mutt with the 106 like at Gilbert.
It's a free ware program and can be easily set up and used. I am using it in the field running an old laptop and windows XP.

Ray F/KA3EKH


From: mrca-bounces at mailman.qth.net<mailto:mrca-bounces at mailman.qth.net> <mrca-bounces at mailman.qth.net<mailto:mrca-bounces at mailman.qth.net>> On Behalf Of Al Klase
Sent: Thursday, November 10, 2022 12:40 PM
To: Military Radio Collectors Association <mrca at mailman.qth.net<mailto:mrca at mailman.qth.net>>
Subject: [MRCA] 850 Hz Shift RTTY


Gang,

Is there any PC software that supports the military (?) standard some of our guys are running on the air?

Al
--
Al Klase - N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/<https://nam10.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.skywaves.ar88.net%2F&data=05%7C01%7Crafantini%40salisbury.edu%7Cfdc61be663bb43214fd708dac3486a8b%7C2472f1faf24f421badd7b01c4b49be07%7C0%7C0%7C638037013042862713%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=rYoE55583pLE9qQ6EKxW7rWfklSudW2Bk%2B7ngHvv0UU%3D&reserved=0>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20221110/f64bfe8d/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: intrface.jpg
Type: image/jpeg
Size: 130644 bytes
Desc: intrface.jpg
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20221110/f64bfe8d/attachment-0001.jpg>
