[MRCA] [ArmyRadios] AB-1335/G Antenna Base(s)?

[W2HX]

Ok thanks everyone. Looks like the consensus is – if there is indeed a capacitor in that protrusion, it is to block continuity from an accidental touch to a power line.  And if there isn’t one in there, then maybe just to extend it deep enough to work through the armor on an M113.

Thanks everyone!

73 Eugene W2HX
Subscribe to my Youtube Channel: https://www.youtube.com/c/w2hx-channel/videos



From: armyradios at groups.io <armyradios at groups.io> On Behalf Of scm325
Sent: Sunday, June 19, 2022 5:25 PM
To: armyradios at groups.io; mrca at mailman.qth.net; MMRCG at groups.io; army-radios at groups.io
Subject: Re: [ArmyRadios] [MRCA] AB-1335/G Antenna Base(s)?

Chk their DC continuity, I believe the long one has a great big door knob capacitor encapsulated in its base.  I have one just like it that’s broken on it bottom end, and the caps right there.

Steve
KM4V

From: mrca-bounces at mailman.qth.net<mailto:mrca-bounces at mailman.qth.net> <mrca-bounces at mailman.qth.net<mailto:mrca-bounces at mailman.qth.net>> On Behalf Of comcast
Sent: Sunday, June 19, 2022 11:40 AM
To: W2HX <w2hx at w2hx.com<mailto:w2hx at w2hx.com>>
Cc: armyradios at groups.io<mailto:armyradios at groups.io>; mrca at mailman.qth.net<mailto:mrca at mailman.qth.net>; MMRCG at groups.io<mailto:MMRCG at groups.io>; army-radios at groups.io<mailto:army-radios at groups.io>
Subject: Re: [MRCA] AB-1335/G Antenna Base(s)?

Eugene
I believe the second base just had move insulation to protect personal in close proximity from the high voltage rf
Power rating should be the same

Jeff


On Jun 18, 2022, at 10:37 PM, W2HX <w2hx at w2hx.com<mailto:w2hx at w2hx.com>> wrote:

Hello friends,

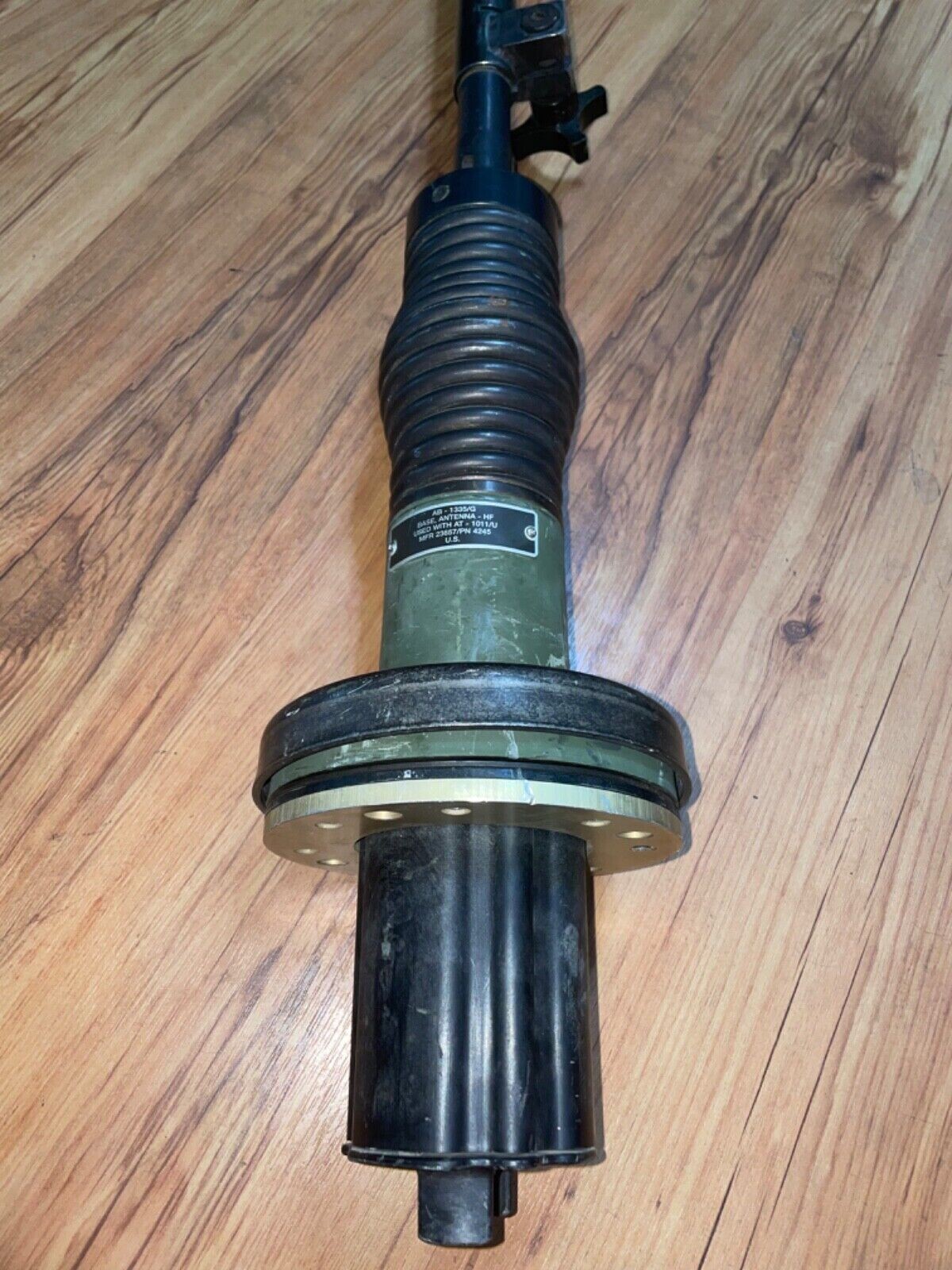

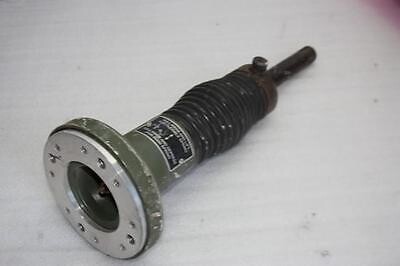

I have seen these AT-1011 bases in two different configurations. Attached are pictures of the two kinds I’ve seen. They both appear to have the same AB-1335/G designation. One has a flat bottom, and the other has a bottom that protrudes below the mounting surface. Does anyone know the reason why these two exist and if there is anything electrically different about them? Power handling? Anything?


73 Eugene W2HX
Subscribe to my Youtube Channel: https://www.youtube.com/c/w2hx-channel/videos



[BASE-ANTENNA-AB-1335-G-DSGN-ACT-80063-pn-A3023749.jpg][s-l1600.jpg]______________________________________________________________
