Fri Oct 1 10:39:58 EDT 2021

Zorro,

I'd forgotten that I had one of those.

Thanks,
Al

On 9/30/2021 9:50 PM, B. Smith wrote:

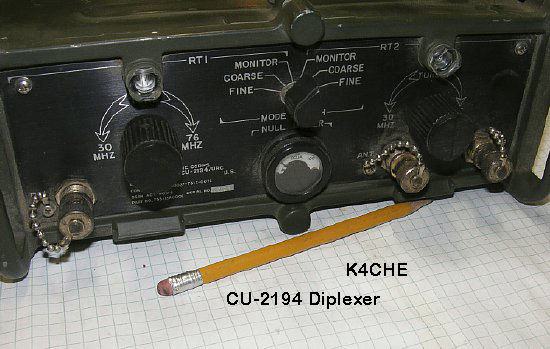

> And if you want to play with a 30 to 76 Mc diplexer. However when
> using some of the modern radios such as the PRC-64 you have to add a
> internal resistor to provide the DC load at the antenna port.
> Z
>
>
>
> On 9/30/2021 8:43 AM, Gary Decker via MRCA wrote:
>> I looked up a cable for the PRC/77 re-trans and they want a $109 for
>> it plus 60+  $'s shipping from Poland.
>> It would be interesting to setup the British radios to do this. I
>> have a bunch of them to bring if needed. Yes, Walt seem like a
>> simpler set-up being that you do not need that expensive cable. Would
>> like to see it in action. Always liked the idea of setting up a
>> portable repeater.
>> Gene, I did read about the PR 25/77 used to link to helicopters using
>> re-trans to communicate up to distance of 100 miles. Not sure how the
>> Helo config looked since you don't have the antenna separation,
>> unless it was done between two helo's.
>>
>> On Wednesday, September 29, 2021, 11:16:24 PM EDT, Walter J Skavinsky
>> <walter.skavinsky at comcast.net> wrote:
>>
>>
>> It seems  retrans on the British radios is a simpler process.  There
>> is no requirement for specialized connector cables.  The wireline
>> connection on the side is used.  D10 wire (aka is wd1) is used to
>> connect the radios.  Min Distance is not mentioned in the manual
>> however this requires the use of the surf unit on the radio.  Surf is
>> the “selective unit radio frequency”.  It’s basically an input
>> filter.  This allows the radio to operate in close proximity to other
>> radios on the same bands.  It is possible to operate with his little
>> as 2 MHz separation And requires both units to have properly tune
>> surf which can be done in the field.
>>
>> The radios can even be separated in a retransmit station as far as 3
>> km via wireline so it’s possible that radios from two Forward
>> operating bases that are connected via wireline can be used in a
>> re-transmit operation.  But the co-locating abilities of the 351 is
>> superior to the PRC 77 in its simplicity.
>>
>> Several years ago I want to say around 2014-ish maybe earlier we set
>> up a re-trans station in the picnic Grove up from the fire company
>> and were able to re-broadcast back to Gilbert.  That day we were
>> actually using both PRC 351 and we even did a cross band re-trans
>> using the PRC 344 on 2:20 AM
>>
>> I have gained a healthy appreciation for the design and simplicity of
>> the British radios
>>
>>
>>
>> 73
>>
>> Walt
>>
>>
>>
>>
>>
>>
>>
>>
>>
>> > On Sep 29, 2021, at 22:49, Gene Smar via MRCA <mrca at mailman.qth.net
>> <mailto:mrca at mailman.qth.net>> wrote:
>> >
>> > Thanks, Gary.
>> >
>> > It would be fun to try this ourselves but we'd need to find a way
>> to transmit within the 6M amateur band exclusively.ï¿½ TM
>> 11-5820-667-12 for the PRC-77, p 6-1, states that Cable Assembly,
>> Special Purpose, Electrical CX-4656/GRC is needed to interconnect the
>> two -77s.ï¿½ It also states that the two freqs must be at least 3 Mc
>> apart.ï¿½ We'd have to check for interference between our selected
>> freqs by checking the freq compatibility table also in the TM
>> above.ï¿½ Lots of spurs possible with synthesized radios, I guess.
>> >
>> > I read somewhere, and include this bit of info in my PPT
>> presentation on squad radios, that this relay arrangement was used in
>> Vietnam to enhance comms between troops on the battlefields and
>> artillery batteries miles away.ï¿½ The relay, I had read, was inside
>> a fixed-wing aircraft orbiting at some low altitude between the
>> battlefield and the artillery.ï¿½ Can anyone confirm this from his
>> own experience?
>> >
>> >
>> > 73 de
>> > Gene Smarï¿½ AD3F
>> >
