[MRCA] Funksprechgerät d

[Al Klase]

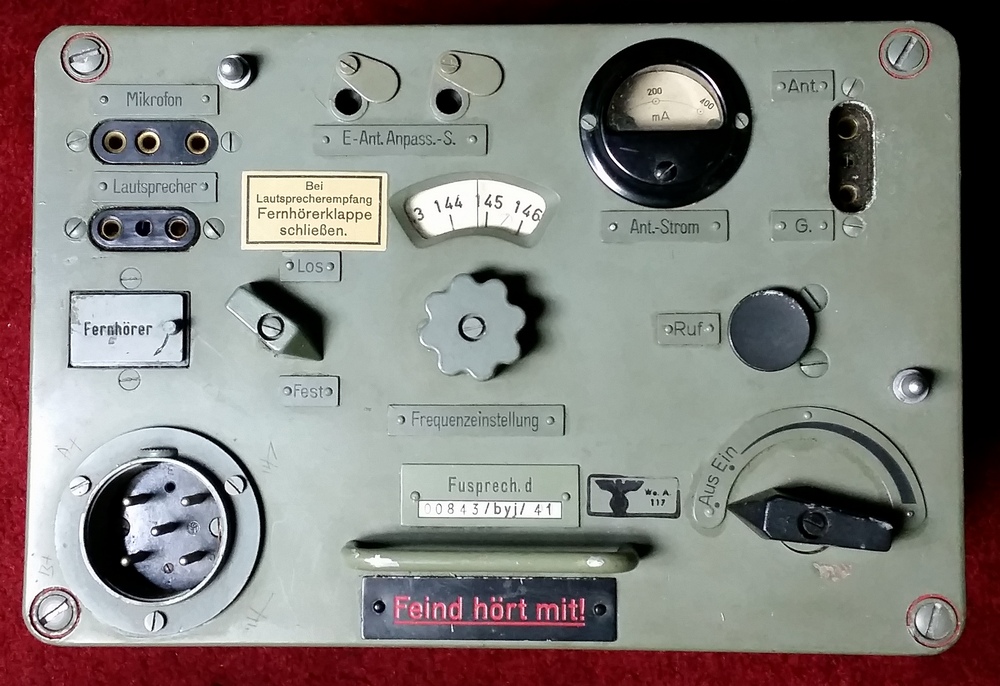

I discovered that the Radio Technology Museum has two of these:



A.k.a., Fusprech. d.  Low power AM transceiver used in half-track
personnel carriers.  Frequency range 23.1 - 24.01 MHz.

Anybody have a schematic?  I'm just crazy enough to fire one of these
up, and maybe drag it onto the 12-meter band.

A little web info for the curious:
https://www.kriegsfunker.com/radios/Fusprech_f_44.html

73,
Al

--
Al Klase – N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
