[MRCA] ARINC Shock-mount parts needed

[Michael Hanz]

It is also quite unique, at least in my limited experience.  It is over
an inch and a half long and the lower half is .440" wide. About halfway
up, it begins expanding to .625" at the top and is held there by the

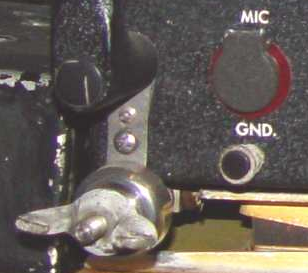

equipment carrying handle.  Also at the halfway point is a small stud
that functions as a tie point for safety wire, seen above the screw in
the photo below.  It is certainly possible to fabricate these, but not
necessarily the easiest thing to make in a home shop.

On 2/10/2019 1:55 PM, DSP3 wrote:
>
> Mike,
>
> That is the one.  I seem to recall some smaller tabs but perhaps I'm
> error.  The one you pictured is the item, to be sure.
>
> Jeep K3HVG
>
> On 2/10/2019 1:02 PM, Michael Hanz wrote:
>> Hi Jeep,
>>
>> Are you talking about the two stainless tabs that are screwed to the
>> front of the equipment and engage the stainless clamp cylinders that
>> are tightened by wingnuts on the front of the mount?  I'm not sure
>> there is a standard for those, or at least I have never seen one.
>> here seems to be a traditional size for the B1-D1  mount, but the
>> wider ones seem to vary with the radio involved.
>>
>>
>>
>> - Mike  KC4TOS
>>
>> On 2/10/2019 12:25 PM, DSP3 wrote:
>>>
>>> I need two of the medium size shock mount L-shaped "ears" or tabs
>>> that mount on the equipment. These are for an ARC-2 but any of the
>>> medium size ones will be fine.  Tnx
>>>
>>> Jeep - K3HVG
>>>
>>
>
> ______________________________________________________________
> MRCA mailing list
> Home: http://mailman.qth.net/mailman/listinfo/mrca
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:MRCA at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

--
Michael Hanz - KC4TOS
