[MRCA] PRC-117D Antenna

[W2HX]

Here you go, Al!

https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F302748041120


Sent from Nine<http://www.9folders.com/>
________________________________
From: Al Klase <ark at ar88.net>
Sent: Tuesday, September 18, 2018 12:40 AM
To: MilComm Guy
Cc: mrca at mailman.qth.net
Subject: Re: [MRCA] PRC-117D Antenna

High Mark,

I went back and gauged the threads under magnification.  (Aging sucks!)   Threads are actually 3/4-16 (UNF).

The inside diameter of the antenna threads should be about 0.670".  That's the minor diameter for 3/4-16 threads.  Hope I got this right, I'm a hacker, not a professional machinist.

Al

On 9/17/2018 9:59 PM, MilComm Guy wrote:

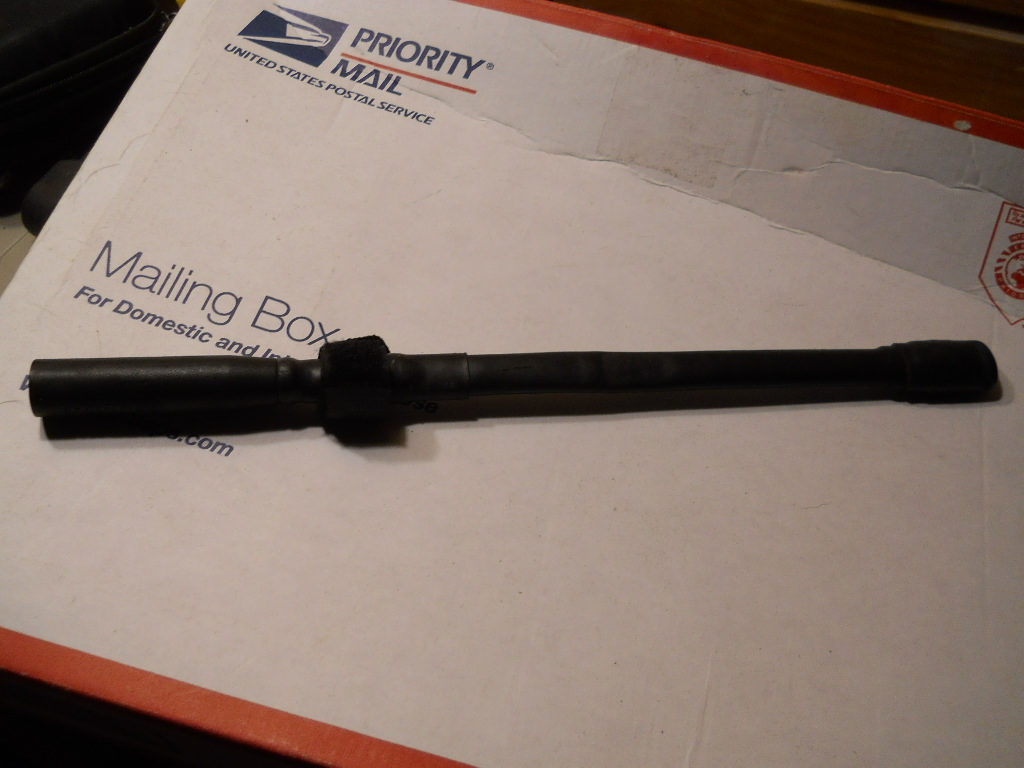

Al I have a Harris antenna 30-512 MHz it folds in half, it's about 12" long, rubber coated marked Harris 12011-2710-01.

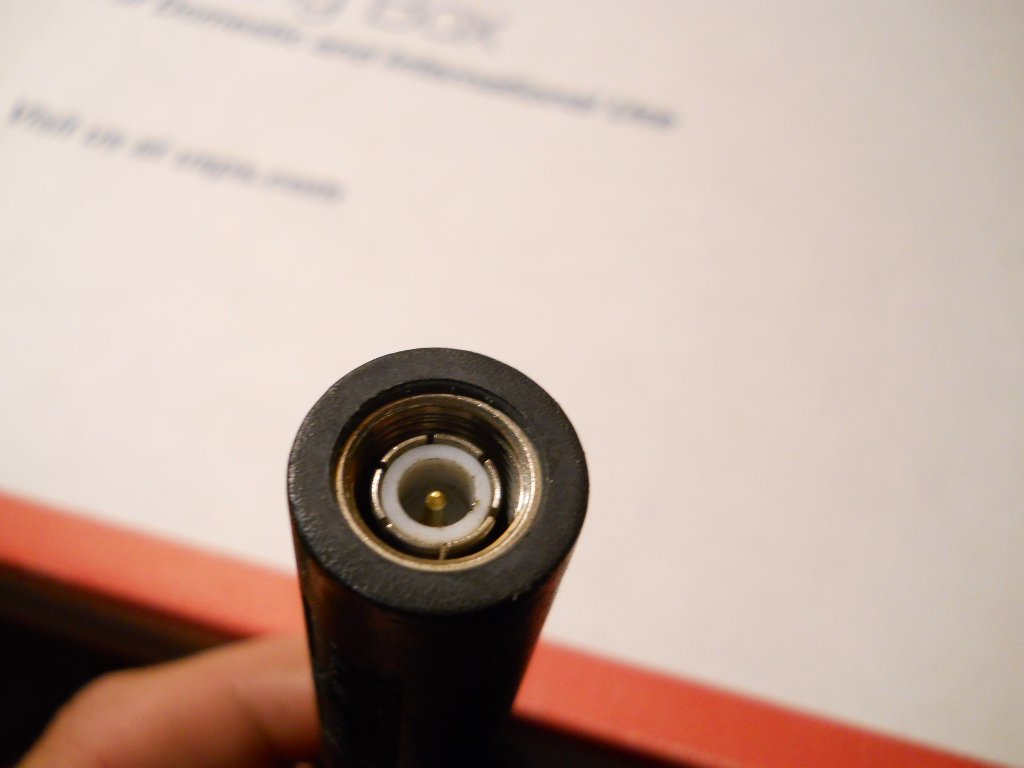

[DSCN4982.JPG]
[DSCN4978.JPG]
Mark
K1HF

On Mon, Sep 17, 2018 at 9:40 PM Al Klase <ark at ar88.net<mailto:ark at ar88.net>> wrote:
Folks,

I'm looking for the short "donkey-dick" antenna for this set.   Frequency range is 30-90, 118-174 and 225-420.  Mount is similar to Singars (BNC) inside a threaded mount, BUT the threads are smaller, 3/4-14.
I'm pretty sure it's a different diameter from the PRC-117F.  Any ideas?

[cid:part1.18C8C941.3AAF184D at ar88.net]

Thanks,
Al

--
Al Klase - N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/



______________________________________________________________
MRCA mailing list
Home: http://mailman.qth.net/mailman/listinfo/mrca
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:MRCA at mailman.qth.net<mailto:MRCA at mailman.qth.net>

This list hosted by: http://www.qsl.net
Please help support this email list: http://www.qsl.net/donate.html


--
Al Klase - N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
